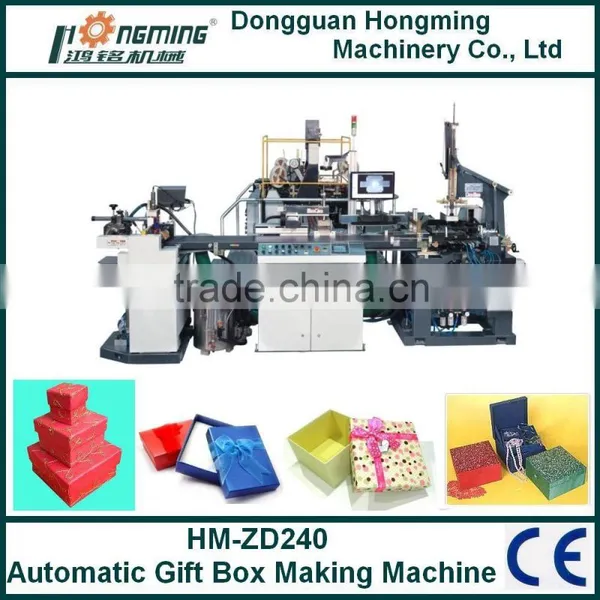

HM-ZD240 Automatic Rigid Box Making Machine for Paper Box
Hong Ming Machiney Co.,Ltd is the leading automatic rigid box making machine producer in China. The Model HM-ZD240 is the new advanced automatic rigid box making machine.

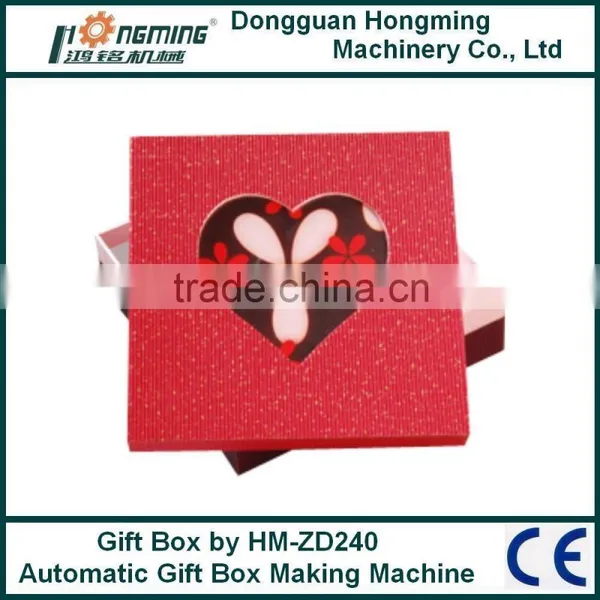

The machine is suitable for all kinds of high-grade jewelry boxes, watch boxes, pen boxes, gift boxes, candy boxes, souvenir boxes, jewelry boxes, cosmetics boxes and other small size box manufacturing production.
HM-ZD240 Automatic Rigid Box Making Machine for Paper Box r Main Characteristics
- Suitable for all kinds of rigid boxes automatic production
- Computer control with auto error display and malfunction display.
- Automatic feeding cover paper and cardboard.
- 24 hours control glue pre-heating
- Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
- The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
- The box-forming unit can automatically collect boxes and deliver them to the forming unit.
- The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
- Spotter unit apply high tech camera with5 million pixel ( accuracy± 0.05mm. )
- The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
- It can automatically diagnose the troubles and alarm accordingly.
- Remodel for automatic production of different kinds of boxes
HM-ZD240 Automatic Rigid Box Making Machine for Paper Box Specification
Automatic Rigid Box Making Machine for Paper Box |
HM-ZD240 |
|
|
Paper Sheet Size (B=Length, A=Width) |
A ( max.) |
305mm |
A ( min.) |
45mm |
|
A ( max.) |
450mm |
|
A ( min.) |
110mm |
|
|
Finish product (Box )Size L=Length W=Width H=Height T=Thickness |
L ( max.) |
240mm |
L ( min.) |
45mm |
|
W ( max.) |
160mm |
|
W ( min.) |
35mm |
|
H ( max.) |
80mm |
|
H ( min.) |
10mm |
|
Cardboard thickness (T) |
T ( max.) |
3mm |
T ( min.) |
0.5mm |
|
Thickness of Paper(g/m2) |
|
80-160g/m2 |
Folding Edge size ( R ) |
|
8mm-20mm |
Speed |
18-32pcs/min |
|
Power |
13KW |
|
Net Weight |
3300kg |
|
Machine Dimension |
4500x4000x2600mm |
|
Note:
1. The max. size and the min. size of box are determined by the max. and min. size of paper.
A(Min.)<W+2H+2T+2R<A(Max.); B(Min.)<L+2H+2T+2R<B(Max.
2. The production speed of the rigid box maker is determined by the box size, paper and greyboard materials.
3. We don’t provide air compressor. ( 6 atm=0.606mpa, 5.5KW compressor is needed)

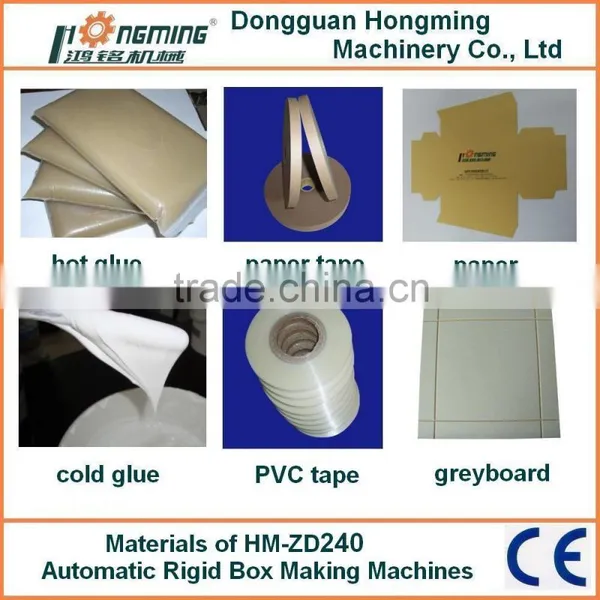

HM-ZD240 Automatic Rigid Box Making Machine for Paper Box materials:glue, tape, paper, greyboard

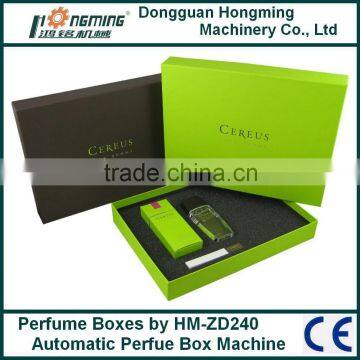

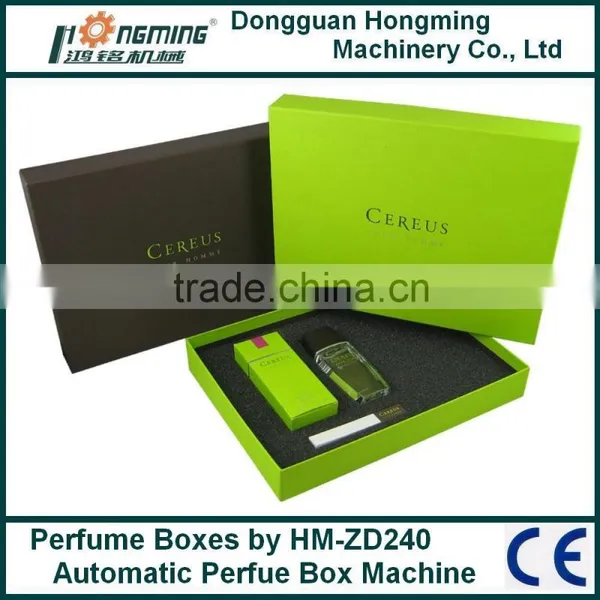

HM-ZD240 Automatic Rigid Box Making Machine for Paper Box outputs: jewlery boxes, ring boxes, bracelet boxes
HM-ZD240 Automatic Rigid Box Making Machine for Paper Box related model: HM-BD240 Automatic Plasltic Rigid Box Making Machine
