13.56MHz Contactless Mifare Reader for Handheld POS Terminal With WIFI

Name: 13.56MHz Contactless Mifare Reader for Handheld POS Terminal With WIFI
Brand: Cardlan
Availability: InStock

FOB Price

US$ 250 - 350 / Unit

1 Unit(Min. Order)

Port Shekou Shenzhen China
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Cardlan
Model Number	CLB0409-D

Product Description

Urban transport bus ticketing machine

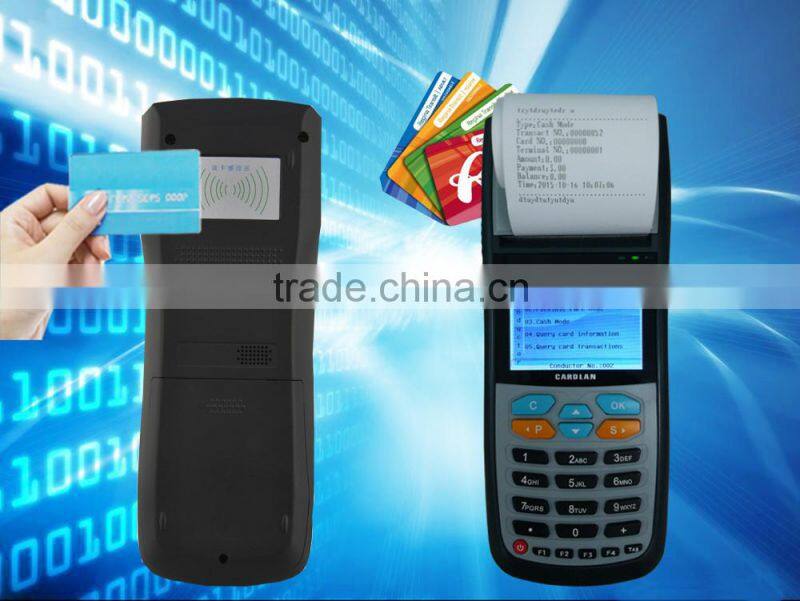

13.56MHz Contactless Mifare Reader for Handheld POS Terminal with WIFI

Company Information

Established in 2000, Shenzhen Cardlan Technology Co. Ltd has been in RFID bus payment field for 16year,one of the pioneers in this filed. We specialize in manufacturing high-quality "bus RFID card payment system"," automatic fare collection POS system", “off-line prepaid card payment system”,"urban all-in-one card system","intelligent internet information system" and other RFID systems.

Product Description

Application Field

1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;

2. Government, Institution, Company, Factory, School, Hospital, Hotel;

3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system,School shuttle bus payment system

Features

1. Support paper slip printing

2. Large data storage capacity

3. Multifunctional conditions for query and statistics

4. Various switching modes of consumption

5. Download data thru GPRS instantly, with good stability

6. Data associated, ultraviolet light for money detecting

7. Small, portable, multifunctional, fast operation

8. With specialized big capacity Li-polymer battery, over 20 hours standby time

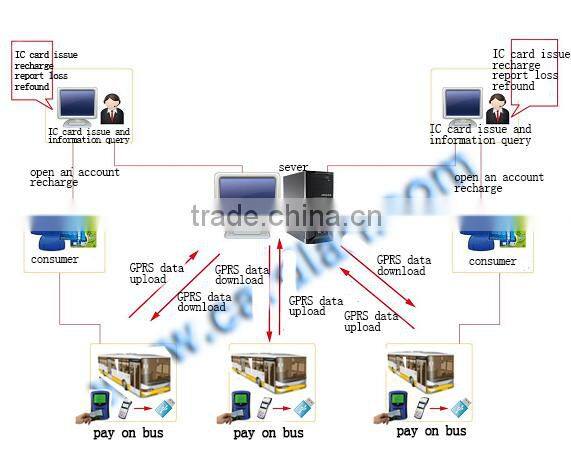

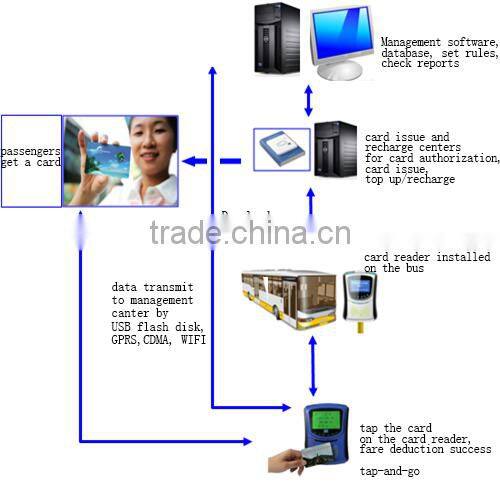

Working Principle

Specifications

Model:	CLB0409 bus ticketing machine
Dimension:	2178346mm
Material:	Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
Display:	2.8 inch LCD display,320x240
Operating system:	Linux 2.6 system
CPU:	N32905 processor,ARM9 core @ 240MHZ
Flash Memory:	64Mbytes, can be extented to 256Mbytes
Data capacity:	259840 pcs of detailed data for console storage, unlimited data at GPRS storage
Card capacity:	91,880,000 pcs
Black list:	91,880,000 pcs (download thru PC with USB)
Keypad	in-bulit-24 pcs Alpha-numeric keypad
Working Voltage:	DC 8V-50V
Operating temperature:	-25~65
Storage temperature:	-40~85
Humidity:	0-95% RH non condensing
Lighting:	Red, Green light
Sound prompt:	Buzzer
RFID:	Can read and write ISO14443 TYPE AB Electronic tag (Incl. Combi-Card )
Read card distance:	0~50mm
Supporting card:	Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
Frequency:	13.56MHz
Interfaces/Connectors:	RS232, RS485, USB
Printer:	bulitin thermal printer
Power consumption:	Static:<0.2W Dynamic<15W
Communication Modules:	GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)
WIFI:	Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
UnionPay:	Compatible for PBOC3.0 UnionPay card
Upgrading:	Connect USB to PC, upgrade with GPRS
Data collection:	WIFI, GPRS, USB

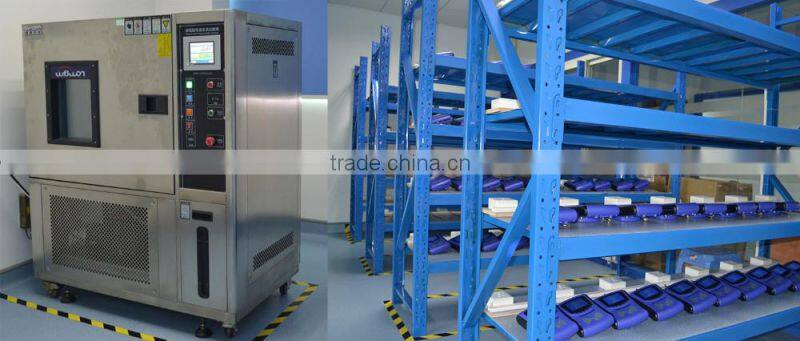

Quality Control

Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.
