Specifications

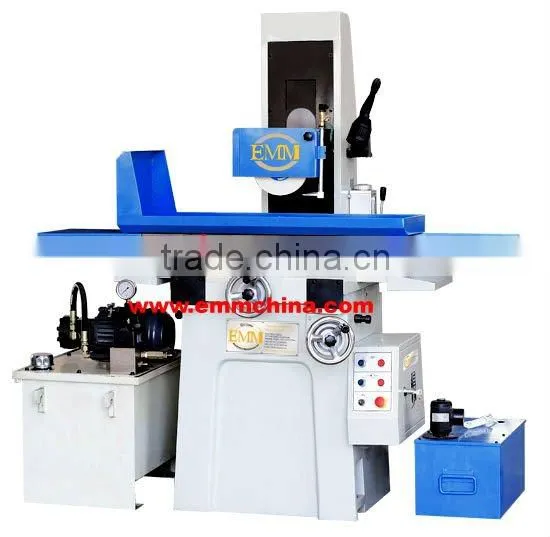

EMM OG68 Manual Surface grinding machineEMM OG68 Manual Surface grinding machine
Technical data of OG68
piece to be Ground |
mm |
500×190×335 |
|
Max. Grinding Length |
mm |
500 |
|
Max. Grinding Width |
mm |
190 |
|
Distance From Table Surface To Spindle Center |
mm |
335 |
|
Slide way |
|
V-type rail with Steel-ball |
|
V-type rail with Steel-ball |
Kg |
200 |
|
Table Size (L×W) |
mm |
460×180 |
|
Number of T -Slot |
mm×n |
12×1 |
|
Speed OF Working Table |
m/min |
3-23 |
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
|
Wheel Size (dia.×width×bore ) |
mm |
200×16×31.75 |
|
Spindle Speeds |
50Hz |
rpm |
2850 |
|
30-6000 |
||
Spindle Motor |
Kw |
1.1 |
|
Coolant Pump |
Kw |
0.4 |
|
Minimum of Numerical Display |
mm |
0.001-0.005 |
|
Machine Size (L×W×H) |
mm |
1550×1060×1590 |
|
Packing Size (L×W×H) |
mm |
1060×1170×1870 |
|
Gross,Net |
T |
O.79, 0.69 |
|
Standard accessories
1. Grinding Wheel
2. Wheel Flange
3. Wheel Balancing Base
4. Extractor
5.Diamond Dresser
6. Leveling pad
7.Anchor Bolt
8.Tool Box
9.Hex key wrench
10. Screw driver
11.wrench
Optional Accessories
1. Permanent Magnetic Chuck
2. Tilt table Permanent Chuck
2 .Electro Magnetic Chuck
4. Demagnetizer
5. Over head Parallel Dresser
6. Angle Dressers
7 .Radius Dressers
8 .Precision Vice
9. Punch former
10 .Micro Feed
11. Digital Read Out System
12 .Rear Splash Guard
13 .Chuck Control
14 .Suction systems
15 .Cooling & Suction system
16 .C/W Magnetic paper filter
