HG122 Hydraulic Surface Grinding Machine

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)
HG122 Hydraulic Surface Grinding Machine thumbnail-1

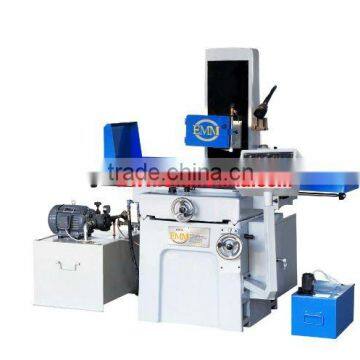

HG122 Hydraulic Surface Grinding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name EMM
Model Number HG122

Specifications

All the Surface grinding series which adopt the V-type guide bring transmission by synchronous belt.

Technical data of HG122

piece to be Ground
 ( L×W×H)

mm

630×310×390

Max. Grinding Length

mm

630

Max. Grinding Width

mm

320

Distance From Table Surface To Spindle Center

mm

550

Slide way



V-type rail with Steel-ball

V-type rail with Steel-ball

Kg

200

Table Size (L×W)

mm

600×300

Number of T -Slot

mm×n

14×1

V-type rail with Steel-ball
(Grinding Length/Width)

m/min

3-20

Cross Feed On Handwheel

mm

0.02/Graduation 2.5/revolution

Vertical Feed On Handwheel

mm

0.01/Graduation 1.25/revolution

Wheel Size (dia×width×bore )

mm

200×20×31.75

Spindle Speeds

50Hz

rpm

2850



0-6000

Totale Power

Kw

3.79

Spindle Motor

Kw

2.2

Working Pressure

Mpa

3

Max.Capacity

L/min

20

Minimum Of Numerical

L

80

Surface Roughness

μm

Ra0.63

Paraller Level

mm

300:0.005

Machine Size (L×W×H)

mm

1900×1530×1830

Packing Size (L×W×H)

mm

1980×1530×2030

Gross,Net

T

1.2,1.33

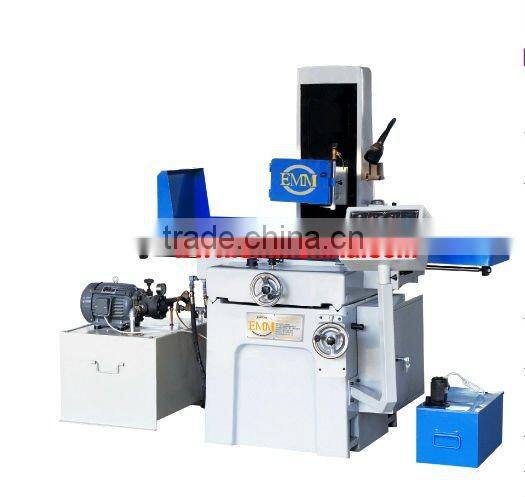

HG122 Hydraulic Surface grinding machine
