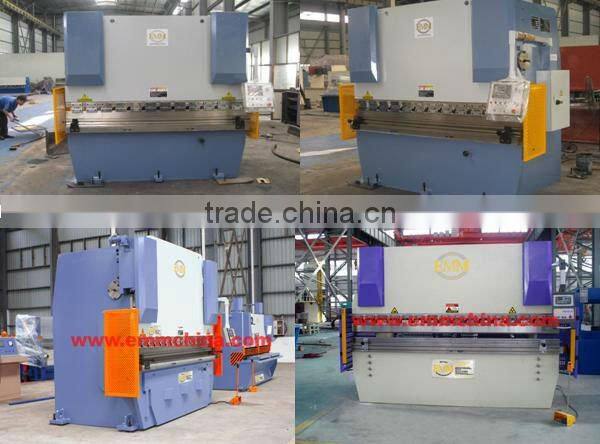

WE67K-100/3200-DA65W Electric Hydraulic Servo CNC Synchronous Press Brakes

Specifications

Light encodes of two sides checking feedback of synchronous position
The back gauge equipped with screw mandrel and linea



Main Elements

1. DA-65W CNC System-------DELEM, Holland
   1. Hydraulic System----BOSCH or Rexroth
   2. Light encodes of two sides checking feedback of synchronous position
   3. The back gauge equipped with screw mandrel and linear slider is driven by the high-powered servo motor.
   4. Hydraulic defection compensation is operated by DNC system.
   5. A set of standard of upper and lower moulds.
   6. Front Support frame.



 Major Import Fittings

1. DA-65W CNC System-------DELEM, Holland
2. Servo motor and coder------YASKAWA, Japan
3. Light encodes------------HEIDENHAIN, Germany or GIVI, Italy
4. Hydraulic driving force----------Major motor: SIEMENS
5. Oil pipe and tie-in---------PARKER6. Hydraulic valve group--------BOSCH, Germany
6. Main electrical elements--------SCHNEIDER, Germany

8. Standard moulds--------Homemade

9. Frame-----------Homemade

10. Hermetical groupware in oil cylinder--------PARKER



Major Parameters

WE67K-100/3200
No.	Items		Value	Units	Remarks
1	Nominal Pressure		1000	KN
2	Worktable Length		3200	mm
3	Uprights Distance		2600	mm
4	Throat Depth		320	mm
5	Ram Travel		120	mm
6	Max Opening Height		380	mm
7	Ram Adjustment		100	mm
8	Ram Speed	Unloaded	90	mm/s
		Ful-loaded	12	mm/s
		Return	70	mm/s/
9	Axial Plunger Pump	Mode	25MCY-1B		actual use 26MPa
		Flow	25	ml/r
		Pressure	31.5	MPa
10	Major Motor	Mode	Y160M—6	B35	50HZ
		Power	7.5	KW
		Speed	950	rpm
11	Ram Adjusting Motor	Mode	A02—6324	B14	50HZ
		Power	180	W
		Speed	1400	rpm
12	Back gauge Adjusting Motor	Mode	YU80M6B
		Power	930	rpm
		Speed	0.5	KW
13	Dimension	L	3260	mm
		W	1265	mm
		H	2447	mm
