GMC85520 CNC Vertical and Horizontal Machining Center

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

EMM

Extreme Machinery Manufacture Co., Ltd. (Jingjiang)

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name EMM

Model Number GMC85520

Type Horizontal

CNC or Not CNC

Voltage 380v/220v/415v

Power(W) 15000/18500

Dimension(L*W*H) 12890*6075*3440

Weight 55000kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.FANUC Oi MD CNC system
tal surface treatment equipment

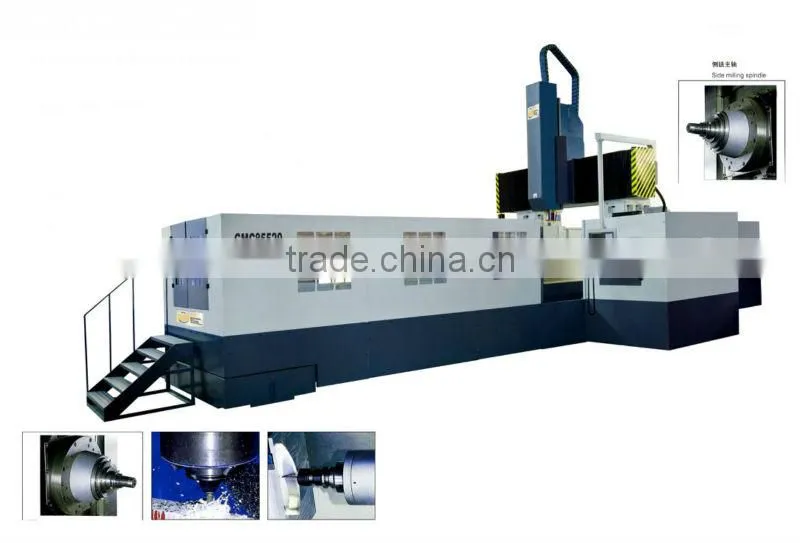

GMC85520 CNC Vertical and horizontal machining center

Specification:

Specification		Units	GMC85520
X-axis travel		mm	5100
Y-axis travel		mm	2500
Z-axis travel		mm	1000
Horizontal milling head cross travel		mm	500
Horizontal milling head vertical travel		mm	500
Worktable size		mm	5500*2000
Max. load of worktable		kg	8000
Number of T-slot		qty	9
Width of T-slot		mm	28h8
Spindle taper (Horizontal / Vertical)			ISO50
Spindle speed range		rpm	10-3000
Distance from spindle nose to worktable surface		mm	150-1150
Distance from horizontal spindle axis to worktable surface		mm	0-500
Feed speed	X,Y axis	Mm/min	2-3000
Rapid feed	X,Y axis	Mm/min	1-10000
Spindle motor power (Horizontal / Vertical)		KW	15/18.5
Feed motor power		KW	9/4/7/3/3
Positioning accuracy		mm	±0.015
Repeat positioning accuracy		mm	±0.0075
Overall dimension		mm	1289060753440
Machine weight		kg	55000
