Help CenterG68 Small Surface Grinding Machine
Related Products
Specifications

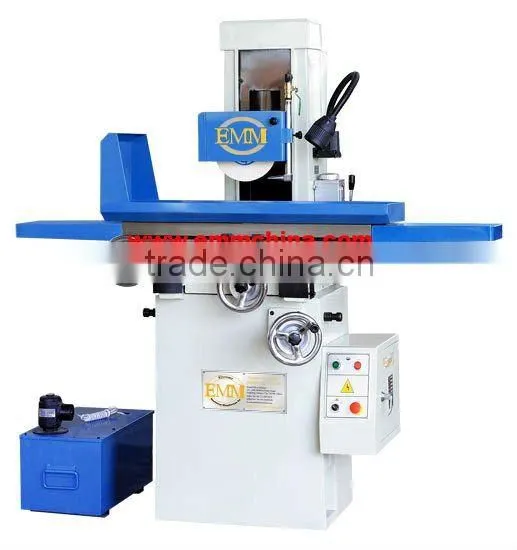

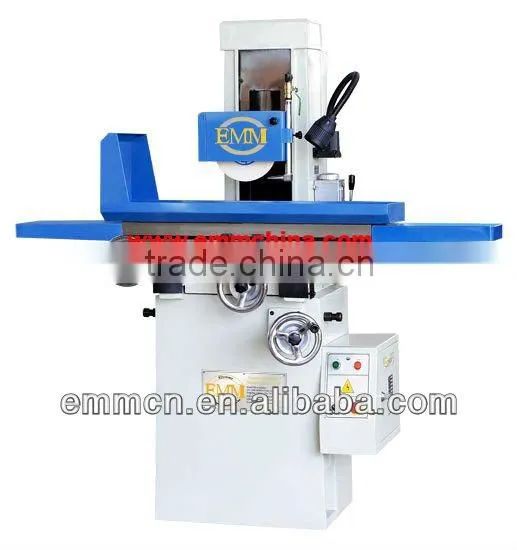

G68 small surface grinding machineG68 small surface grinding machine
Features:
All the Surface grinding series which adopt the V-type guide bring transmission by synchronous belt. Mean while, adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electro-magnetic chuck or the dense chuck of permanent magnetism and having the following features: operating simple and convenient, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement and a long-life service, mostly suitable for applying to process various moulds and ceramics.
1,Adopt the exceeding precise class7 (P4 level) ball bearing for spindle
2,Bring transmission by synchronous belt,operating simple and convenient.
|
piece to be Ground ( L×W×H) |
mm |
500×190×335 |
|
Max. Grinding Length |
mm |
500 |
|
Max. Grinding Width |
mm |
190 |
|
Distance From Table Surface To Spindle Center |
mm |
335 |
|
Slide way |
|
V-type rail with Steel-ball |
|
V-type rail with Steel-ball |
Kg |
200 |
|
Table Size (L×W) |
mm |
460×180 |
|
Number of T -Slot |
mm×n |
12×1 |
|
Speed OF Working Table |
m/min |
3-23 |
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
|
Wheel Size (dia.×width×bore ) |
mm |
200×16×31.75 |
|
Spindle Speeds |
50Hz |
rpm |
2850 |
|
0-6000 |
||
Spindle Motor |
Kw |
1.1 |
|
Coolant Pump |
Kw |
0.4 |
|
Minimum of Numerical Display |
mm |
|
|
Machine Size (L×W×H) |
mm |
1550×1060×1590 |
|
Packing Size (L×W×H) |
mm |
1060×1170×1870 |
|
Gross,Net |
T |
0.75, 0.65 |
|
