4 Post Ceramic Bimetallic Thermostat

4 Post Ceramic Bimetallic Thermostat thumbnail-1
4 Post Ceramic Bimetallic Thermostat photo-1
US$ 0.7 - 0.7 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
HW
Model Number:
33A-PT2
Contact Supplier Request Quote Chat Now
Honest-well Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name HW
Model Number 33A-PT2

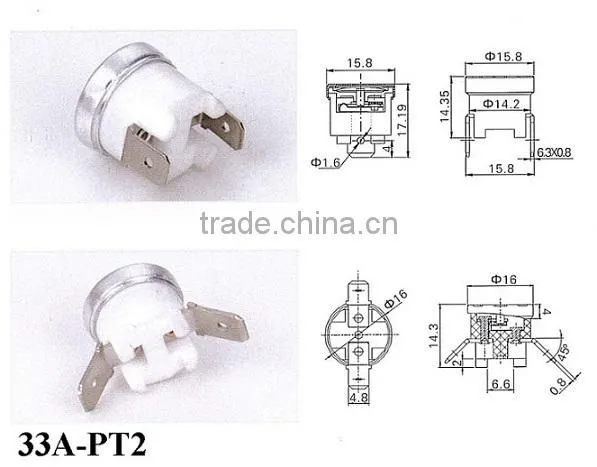

4 Post Ceramic Bimetallic Thermostats



Overview:



1. Contact Type: Contact Opens when Temperature Rises to Set Point (Normally Closed)

2. Cap Type: C Cap

3. Terminal Orientation: 45° angle

4. Terminal Size: AMP#250 TAB (6.3 x t0.8mm)



Specification:

Electrical Rating AC 125V/250V, 5A/10A/16A
Open Temperature 0~230°C
Tolerance of Open Temperature ±1.5°C, ±2°C,± 3°C, ±5°C, ±10°C
Difference between Open and Close Temperature 5~180K
Tolerance of Closed Temperature ±3°C, ±5°C, ±10°C
Dielectric Strength AC 1800V for 1 minute
Insulation Resistance ≥100m ohm (at DC500V)
Contact Resistance <50m ohm
Ceramic Heat Resistance 250°C
Lifetime Resistive 100,000 cycles



4 Post Ceramic Bimetallic Thermostat
