Help CenterSS12F99 1P2T Vertical Type Slide Switch
US$ 0.1 - 0.4
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Slide Switch
Model Number:
SS12F99
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SS12F41 1P2T Vertical Type Slide SwitchUS$ 0.1 - 0.4MOQ: 1000 Pieces -
SS12F55 1P2T Vertical Type Slide SwitchUS$ 0.1 - 0.3MOQ: 1000 Pieces
-
TS001 OFF-(ON) Tact SwitchNegotiableMOQ: 1000 Pieces
-
SS12I05 1P2T Vertical Type Slide SwitchUS$ 0.1 - 0.3MOQ: 1000 Pieces
-
TS010 OFF-(ON) Tact SwitchNegotiableMOQ: 1000 Pieces
Place of Origin
Taiwan, China
Brand Name
Slide Switch
Model Number
SS12F99
Max. Current
0.5A
Max. Voltage
DC 50V
Overview:
(1) Vertical type slide
(2) Available in various circuit such as 1P2T

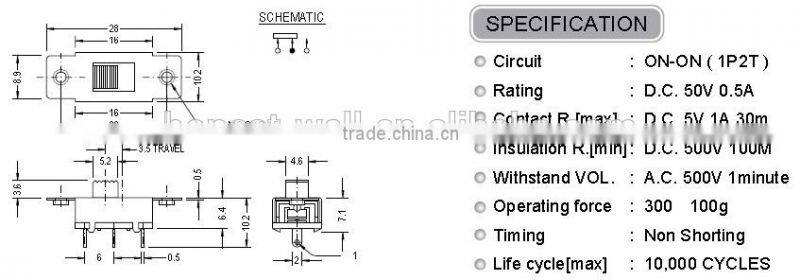

Specification:
| Circuit | ON-ON (1P2T) |
| Rating | D.C. 50V 0.5A |
| Contact R. [max] | D.C. 5V 1A 30mΩ |
| Insulation R. [min] | D.C. 500V 100MΩ |
| Withstand VOL. | A.C. 500V 1minute |
| Operating force | 300±100g |
| Timing | Non Shorting |
| Life Cycle [max] | 10,000 cycles |
