PTC - MCH Ceramic Heating Plate



The insulating material is mostly alumina ceramic, but other materials are also available, such as ceramic, glass, mica and so on. It can be used in hair straightener, hair crimper, film covering machine, and other appliances.



PTC - MCH Ceramic Heating Plate





2. Notice in appliance.
It’s rapid temperature rising, with small bulk, with high power in unit area. There is not temperature self-control character, temperature control circuit is needed. Over-temperature protector is needed for preventing failure of temperature control.

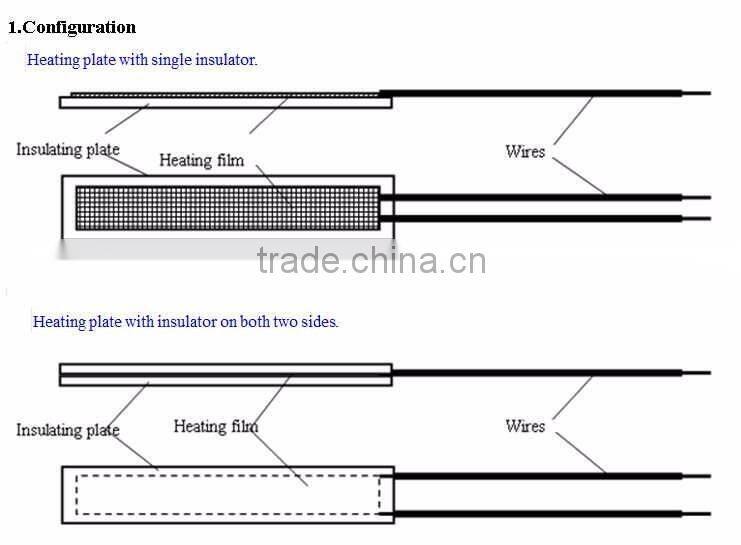

Single side insulator type consists of noble metal as heating material. It’s long life, no oxygenation. And various temperature coefficient of resistance can be selected.

Both sides insulator type consists of Mo-Mn alloy as heating material. It is longer life than wire heaters. It’s with temperature coefficient of + 2000~3000×10-6/℃. The power is changed slightly with temperature changing. Temperature control circuit is needed for controlling the temperature.


3. Current products.
part number
length
/mm
width
/mm
thickness
/mm
resistance
at 25℃ /Ω
insulator
high
pot/V
rate voltage/V
max. temperature
/ ℃
TCS-100R110L24W120V
110
24
1.0
100±10%
single side
1500
120V
250
TCS-100R110L15W120V
110
15
1.0
100±10%
single side
1500
120V
250
TC-50R70L20W120V
70
20
1.3
50±10%
both sides
3000
120V
250
TC-70R70L15W120V
70
15
1.25
70±10%
both sides
3000
220V
250
TC-70R70L10W120V
70
10
1.25
70±10%
both sides
3000
220V
250
TC-70R70L07W120V
70
7
1.25
70±10%
both sides
3000
220V
250
TC-160R70L20W220V
70
20
1.3
160±10%
both sides
3000
220V
250
TC-160R70L15W220V
70
15
1.25
160±10%
both sides
3000
220V
250
TC-160R70L10W220V
70
10
1.25
160±10%
both sides
3000
220V
250
TC-160R70L07W220V
70
7
1.25
160±10%
both sides
3000
220V
250
