Home > Products > Power Press > EMH23-63 Crankshaft for Power Press

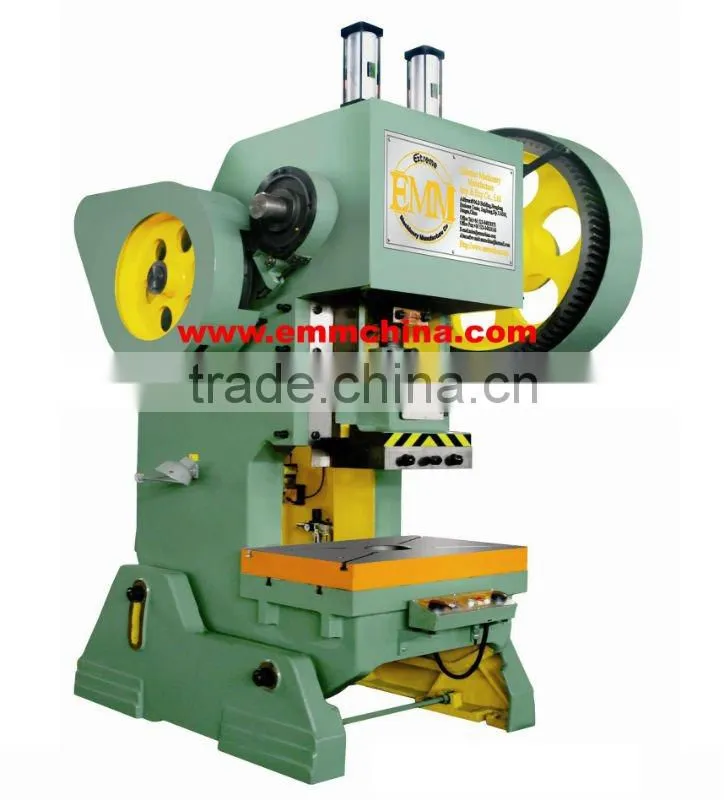

EMH23-63 Crankshaft for Power Press
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Pneumatic | Place of Origin | Jiangsu, China | |
| Brand Name | EMM | Model Number | EMH23-63 | |
| Voltage | 380V | Power(W) | 7.5KW | |
| Weight | 5440KG | Dimension(L*W*H) | 1930*1560*2740 | |
| Certification | ISO9001 | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
EMH23-63 crankshaft for power press1High-strength frame
2Stable high accuracy
3Slider adjustment mechanism
44Novel design
EMH23-63 crankshaft for power press
The machine adopts combined pneumatic friction clutchbrake, and it features compact structure, smooth transmission, flexible action, convenient operation and low noise
Technical Data | Unit | EMH 23- 40 | EMH 23- 63 | EMH 23-80 | EMH 23-100 | |
Nominal Capacity (Pe) | KN | 400 | 630 | 800 | 1000 | |
Nominal Stoke(Sp) | mm | 6 | 7 | 7 | 7 | |
Nominal Stoke(S) | mm | 90 | 110 | 120 | 140 | |
Slide Strokes Per Minute(n) | times/ min | 50 | 50 | 38 | 38 | |
Maximum Die Set Height(H2) | mm | 320 | 390 | 440 | 480 | |
Die Height Adjustment(t) | mm | 65 | 80 | 90 | 100 | |
Throat Depth(C1) | mm | 250 | 310 | 350 | 380 | |
Distance Between Uprights(d1) | mm | 340 | 420 | 450 | 560 | |
Slide Bottom Size | L×R(a) | mm | 300 | 400 | 450 | 540 |
F×B(b) | mm | 260 | 360 | 360 | 480 | |
Stem hole Size | Dia(d) | mm | 50 | 50 | 60 | 60 |
Depth(l) | mm | 70 | 70 | 75 | 75 | |
Bolster Size | L×R(C) | mm | 700 | 860 | 950 | 1080 |
F×B(D) | mm | 460 | 570 | 650 | 710 | |
Bolster Thickness(H3) | mm | 65 | 80 | 100 | 120 | |
Max. Angle Of Inclination(2) | ° | 30 | 20 | 20 | 15 | |
Bolster Surface Height(H1) | mm | 850 | 850 | 850 | 850 | |
Overall Dimensions | F×B(A) | mm | 1750 | 1930 | 2060 | 2404 |
L×R(B) | mm | 1376 | 1560 | 1915 | 2180 | |
H | mm | 2488 | 2740 | 3290 | 3625 | |
Distance Between Foundation Bolts | F×B(a’) | mm | 1060 | 1300 | 1360 | 1550 |
L×R(b’) | mm | 750 | 920 | 1010 | 1130 | |
Motor Power | KW | 5.5 | 7.5 | 7.5 | 11 | |
Weight(Approximate) | Kg | 3590 | 5440 | 7860 | 11250 | |
