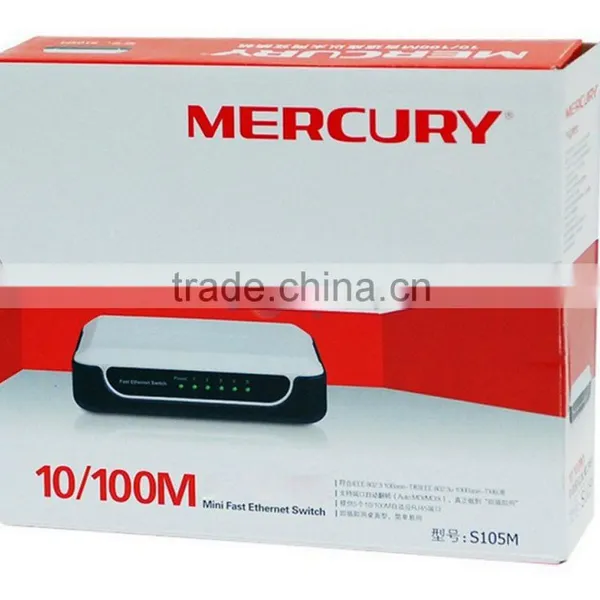

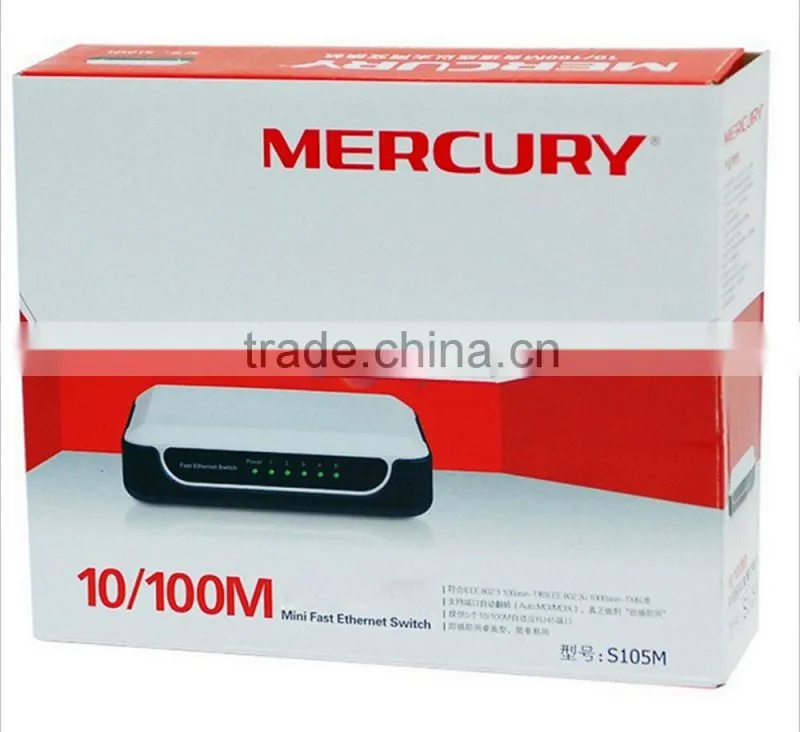

Wholesale shuixing S105M 5 ports 100M network switch BRANDS
sku:LA131
Features
5 Fast port
Port automatically flip
MAC address self-learning
Molded design
Key Features
Compatible IEEE802.3 10Base-T and IEEE802.3u 100Base-TX network standards
5 RJ-45 interface
10 / 100M dual speed adaptive
Supports port auto-flip (Auto MDI / MDIX)
Support IEEE802.3x full duplex flow control and back pressure half-duplex flow control
Dynamic LED indicator that provides a simple working condition and troubleshooting tips
Support MAC address self-learning function
Desktop Molded type, highly integrated design
External power supply, desktop compact molded case structure design
Dimensions: 140 * 84 * 28mm
Networking standards
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
protocol
CSMA / CD
Topology
Star
Support cable type
10Base-T: 3, 4, or 5 unshielded twisted pair, the longest 100 meters EIA / TIA-568 100-ohm shielded twisted pair (STP), up to 100 meters; 100Base-TX: 5 unshielded twisted-pair line, the longest 100 meters EIA / TIA-568 100-ohm shielded twisted pair (STP), up to 100 meters
Status Indicator
Power, Link / Activity Indicator
Of exchange
Store and Forward (Store-and-Forward), wire-speed filtering and forwarding
power supply
External power adapter
Filtering and forwarding rate
10M net for 14880pps; 100M net for 148800pps
Environment
Operating temperature: 0 ℃ to 40 ℃
Storage temperature: -40 ℃ to 70 ℃
Humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing
