EMMCHINA FA275 automatic iron pipe cutting machine
- 30 Set / Sets per Month
- Shanghai
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | EMM |
Model Number: | FA275 | Machine Type: | Pipe and Tube Bending Machine | Raw Material: | Pipe |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | Cut To Length | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

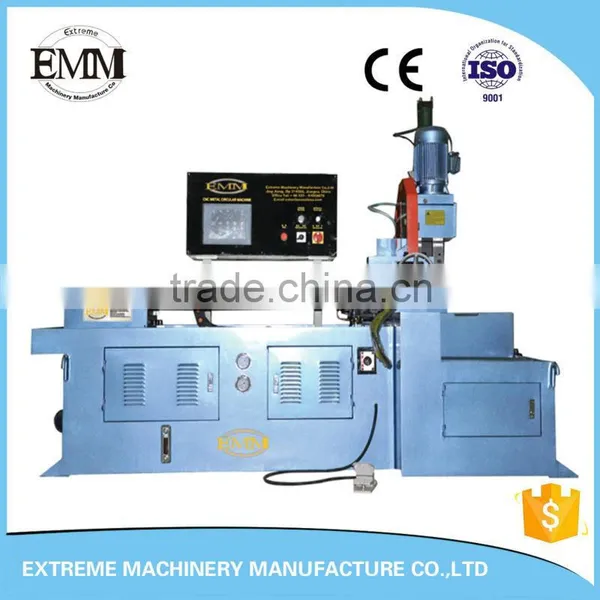

EMMCHINA FA275 automatic iron pipe cutting machine
EMMCHINA FA275 automatic iron pipe cutting machine
Technical Specification and Capacity
Model | FA275 | FA315 | FA350 | FA400 | ||
Main motor | 2/4 pole 2/2.4KW | 2/4 pole 2/2.4KW | 2/4 pole 2/2.4/3KW | 2/4 pole 2/2.4/3KW | ||
Main shaft rotating speed | 96/48 | 88/44 | 48/19 | 38/19 | ||
OD | Φ250 – 300 mm | Φ250 – 350 mm | Φ250 – 370 mm | Φ250 – 400 mm | ||
Suitable saw Blade | Center Bore | Φ32 | Φ32 | Φ32 | Φ32 | |
Pin hole | 2 x Φ11x65mm | 2 x Φ11x65mm | 2 x Φ11x65mm | 2 x Φ11x65mm | ||
PCD | PCD | PCD | PCD | |||
Feeding length | 750 x many times | |||||
Oil pump system | 2.2KW,Pole motor, double –ply pump operating pressure | |||||
25-35kg/cm | ||||||
Cooling system | 0.09Kw motor, automatic cooling circulation | |||||
Compress air | 0.0 – 0.9 Mpa 160N/min | |||||
Weight | 1100 KGS | 1300 KGS | 1400 KGS | 1500KGS | ||
Cutting capacity as reference | ||||||
sawing profile scale | Φ80 | Φ110 | Φ125 | Φ150 | ||
60 x 60 | 90 x 90 | 110 x 110 | 125 x 125 | |||
60 x 80 | 90 x 90 | 110 x 110 | 125 x 125 | |||
60 x 80 | 90 x 90 | 110 x 110 | 125 x 125 | |||
Φ38 | Φ55 | Φ75 | Φ100 | |||
38 | 50 x 50 | 65 x 65 | 80 x 80 | |||
Using special designed clamping mould, according to diameter to cut 2 – 9 pieces /time | ||||||
EMMCHINA FA275 automatic iron pipe cutting machine, the thin pipes will not be clamp flat, suit for the thin pipes, furniture pipes and sporting pipes, high efficiency.
Vertical slideway for advance and retreat blade up and down. Cutting feed is steady and cutting tools are of long use life.
High precision of saw cutting.
1. European design, many groups of tooth gearing, suit to heavy duty cutting, the accuracy is steady
2. Elaborate design for material feed system
3.Elaborate design for material feed floating system sa as not to damage the surface of work piece
and with high precision of material feed.
4. Special main clamp design, the strength is solid.
5. Special designed feeding system, the feeding length set to 6-640m/mz(can feeding 3 times)
6. Use PLC controller, no connection point no fault and easy repairing
7.Cooling liquid automatic circulation to secure the smoothness of cutting surface of work piece
8. Centralized control button. Easy and simple operation.
9. Equipped with electric saw cutting number setting and total number
10.Automatic stop when without material
11.Saw pieces are centralized for disposal to make convenient and clean
12. It stop automatic without material
13.The structure is stable, low vibration and the machine is durable
14.The cooling fluid circles automatic and makes the cutting section smooth.
15.The cutting scraps are treated together and the maintenance is easy.
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
1. 100% by T/T;
2. 30% deposit by T/T, the balance paid by L/C at sight;
3. 100% by L/C at sight;
4. 100% by 30, 60 or 90 days usance credit.
EMMCHINA FA275 automatic iron pipe cutting machine
