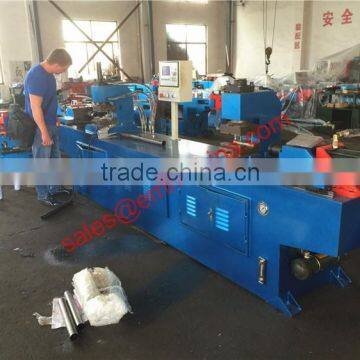

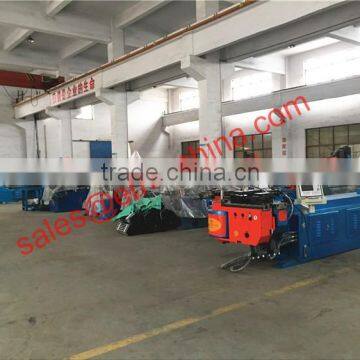

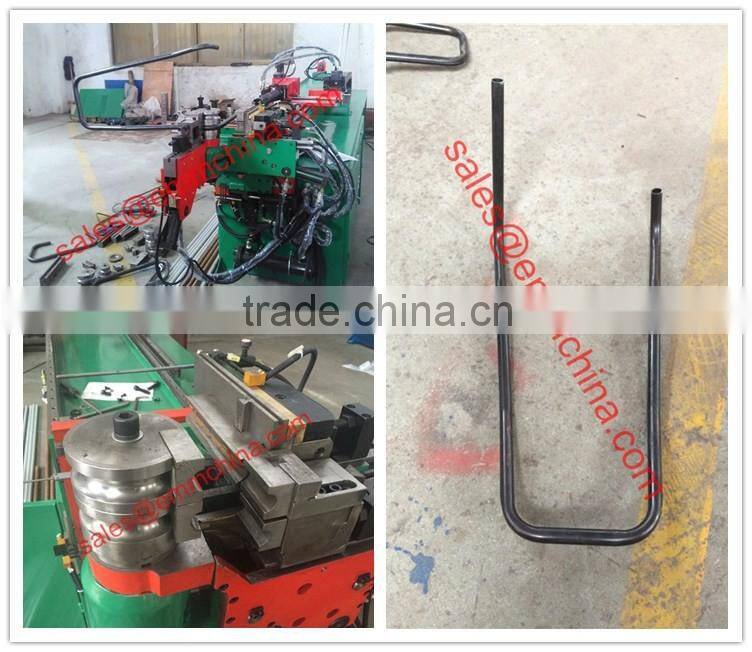

EMMCHINA EM75 manual stainless steel pipe bending machine
EMMCHINA EM75 manual stainless steel pipe bending machine:

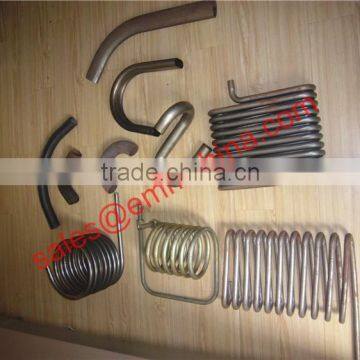

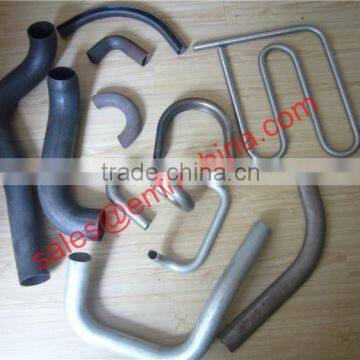

High performance middle size pipe bending machine, NC control, multi-groups program and multi angles setting, makes your operation and setting convenient. Widely used in mass production and standard products, such as: blast pipe, seat, fender guard, and all the steel furniture.
Specification/Model | Unit | EM38 | EM50 | EM63 | EM75 | EM89 |
Max bending capability | mm | Φ38*2 | Φ50*3 | Φ63*4 | Φ75*4 | Φ89*8 |
Max bending radius | mm | R260 | R350 | R350 | R400 | R450 |
Min bending radius | mm | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter | According to the pipe diameter |
Max bending angle | degree | 190 | ||||
Max effective distance of mandrel | mm | 1600 | 2200 | 2600 | 2800 | 3500 |
Control System | NC Control | |||||
Max elbow bend pipe | unit | 16 | ||||
Max storable sections | unit | 16*16 | ||||
Motor power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 |
Max. Hydraulic Pressure | mpa | 12 | 12 | 12 | 12 | 14 |
Hydraulic System Control | Electromagnetic Valve | |||||
Oil Tank Capacity | L | 110 | 150 | 220 | 250 | 260 |
Measurement | mm | 2600*600*1000 | 3000*700*1030 | 3500*750*1100 | 4000*1000*1100 | 4550*1300*1300 |
Weight of Machine | kg | 750 | 1220 | 1500 | 2000 | 3500 |
