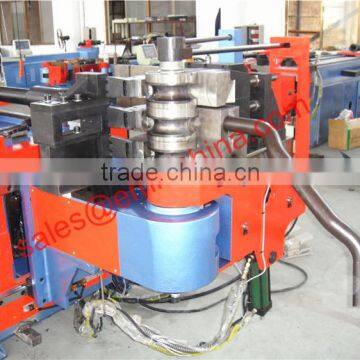

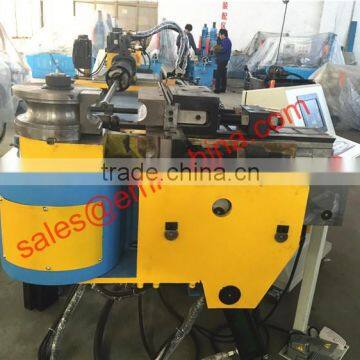

EM752A-1S hydraulic pipe bending machine pipe bender
EM752A-1S hydraulic pipe bending machine pipe bender seeks excellence on the control aspect. Its characteristics are as following:
1. Electric control system: adopts famous controller in Japan,for example, the servo driver, servo motor, location mold group, CPU and so on from Mitsubishi Clubs or Yasukawa, which is of high capability and excellent steadiness.
2. Extra-large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.
3. WINDOWS operating system is installed in the industrial computer to match with Mitsubishi servo system; therefore, apart from the advantage of Mitsubishi servo drive, it owns the convenience of file management of WINDOWS operating system. lt can also store the files in hardware or disk to indefinitely expand edition groups.
4. Function of automatically detecting error and fault, which is displayed on the screen for operators to cancel the fault easily.
5. All the process documents are inputted by touch control screen.
| Specification/Model | Unit | 1.EM752A-1S 2.EM753A-1S | EM1152A-1S | |
| Max bending capability | mm | Φ75*4 | Φ115*10 | |
| Max bending radius | mm | R250 | R350 | |
| Min bending radius | mm | According to pipe OD | According to pipe OD | |
| Max bending angle | degree | 190 | 190 | |
| Max feeding length | mm | 3000 | 3000 | |
| feeding method | direct feeding/clamping feeding | |||
| Working speed | Bending speed | Max 40/s | Max 30/s | |
| Rotary speed | Max 160/s | Max 160/s | ||
| Feeding speed | Max 800mm/s | Max 800mm/s | ||
| Working Accuracy | Bending accuracy | ±0.1 | ±0.15 | |
| Rotary accuracy | ±0.1 | ±0.1 | ||
| Feeding accuracy | ±0.1mm | ±0.1mm | ||
| Information inputting method | 1.Axis(X,Y,Z) | 1.Axis(X,Y,Z) | ||
| ing value(Y,B,C) | ing value(Y,B,C) | |||
| Bending method | 1.Servo bending: 11KW(more than 3 axis) | 1.Hydraulic bending | ||
| 2.Hydraulic bending | ||||
| Power of rotary servo motor | KW | 1 | 2 | |
| Power of feeding servo motor | KW | 1.5 | 3.5 | |
| Max bending unit | 16 units (PLC) | |||
| Max storing components | 2000000 groups (PLC) | |||
| Motor power | kw | 7.5 | 22 | |
| Max Oil pressure | mpa | 12 | 14 | |
| Size | mm | 5200*1350*1230 | 6120*1460*1400 | |
| Weight | kg | 4500 | 10000 | |
hydraulic pipe bending machine pipe bender
