Q55Y-165 ironworks for folding tables
- 100 Unit / Units per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Pneumatic |
Place of Origin: | Jiangsu, China | Brand Name: | EMM | Model Number: | Q55Y-165 |
Voltage: | 380V | Power(W): | 15KW | Weight: | 5075 KG |
Dimension(L*W*H): | 2700x1120x2160mm | Certification: | ISO9001 | Warranty: | 1 YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Q55Y-165 ironworks for folding tables1. punching machine
2. ironworker machin
3. ironworker

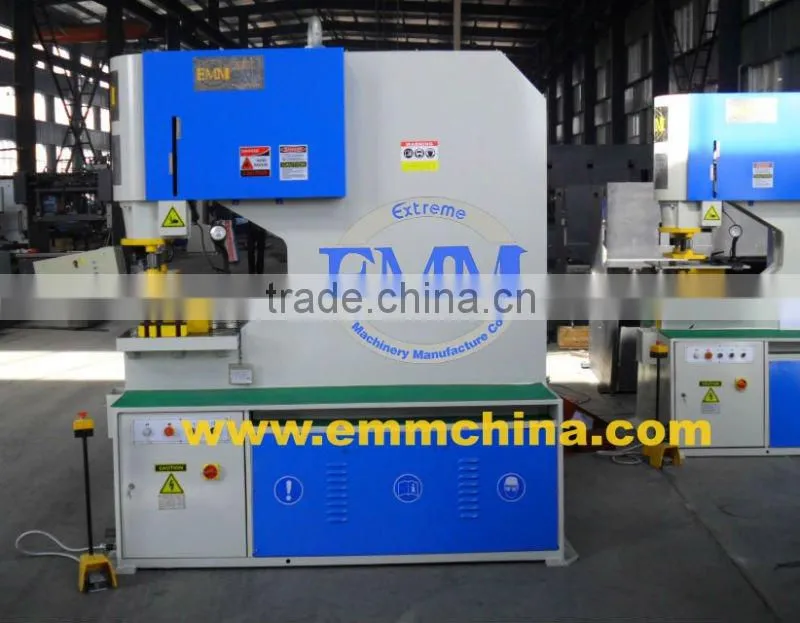

Q55Y-165 ironworks for folding tables
Features:

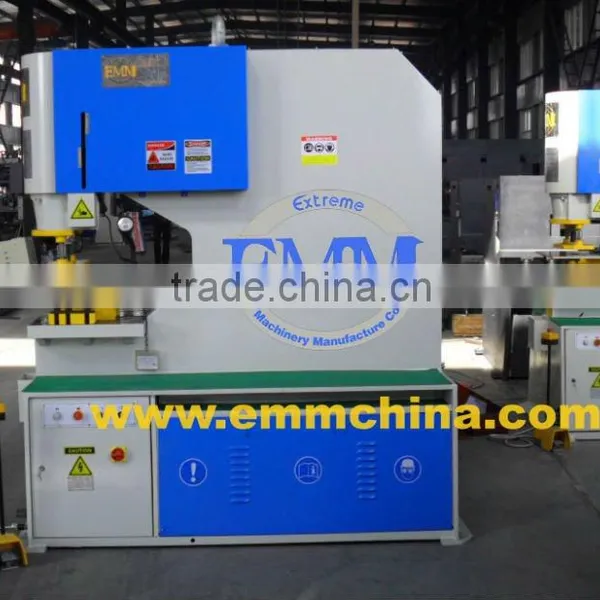

The EMM model of hydraulic punching machines all come equipped with a deep throat of 600mm as standard.
Heavyduty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution.
The EMM hydraulic punching machines are available from 60 ton to 200 ton. Furthermore, tooling from competitor’s machines and or other brand-names can be used without special machine-modifications.
Technical Capacities and Specifications
Q55Y-165 ironworks for folding tables
Model | Unit | Q55Y-165 |
Punching Pressure Ton | Ton | 165 Ton |
Max. capacity | mm | 40x32 |
Diameter x thickness | mm | 57x18 |
Stroke length | mm | 80 |
Standard throat depth punch | mm | 600x600 |
Largest hole(standard equipment) | mm | 57 |
Largest hole(optional equipment) | mm | 160 |
Maximum section | mm | 380 |
Working height | mm | 1075 |
Corner notch(optional equipment) | mm | - |
Maximum capacity | mm | 250sq x 6 |
Tube notch(optional equipment) |
| - |
Maximum outside diameter | mm | 165 |
Bending(optional equipment) | mm | - |
Bar bend. max. capacity | mm | 250x25 |
Sheet bend. max. capacity | mm | 700x4 |
Technical data | mm | - |
Motor power | kw | 15kw |
Net weight-punch | mm | 5075 |
Machine dim.(Lx W x H) | mm | 2700x1120x2160 |
