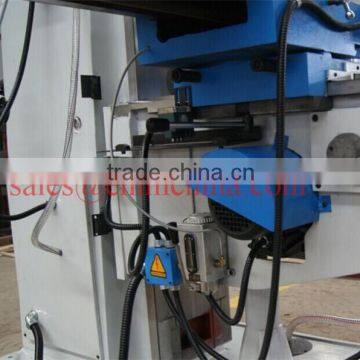

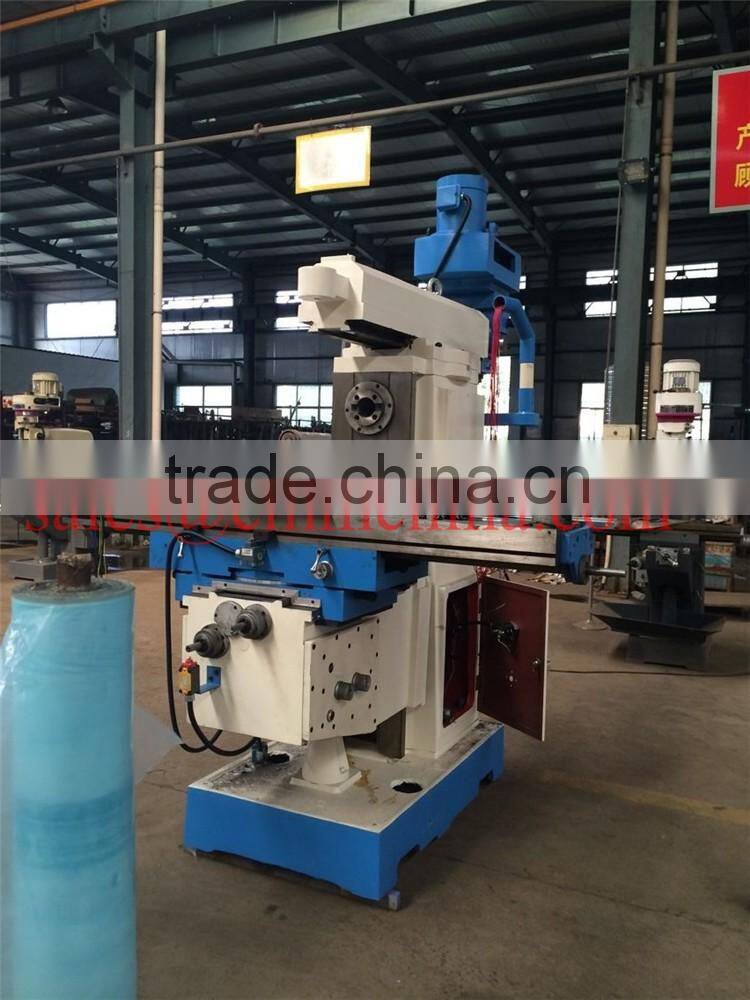

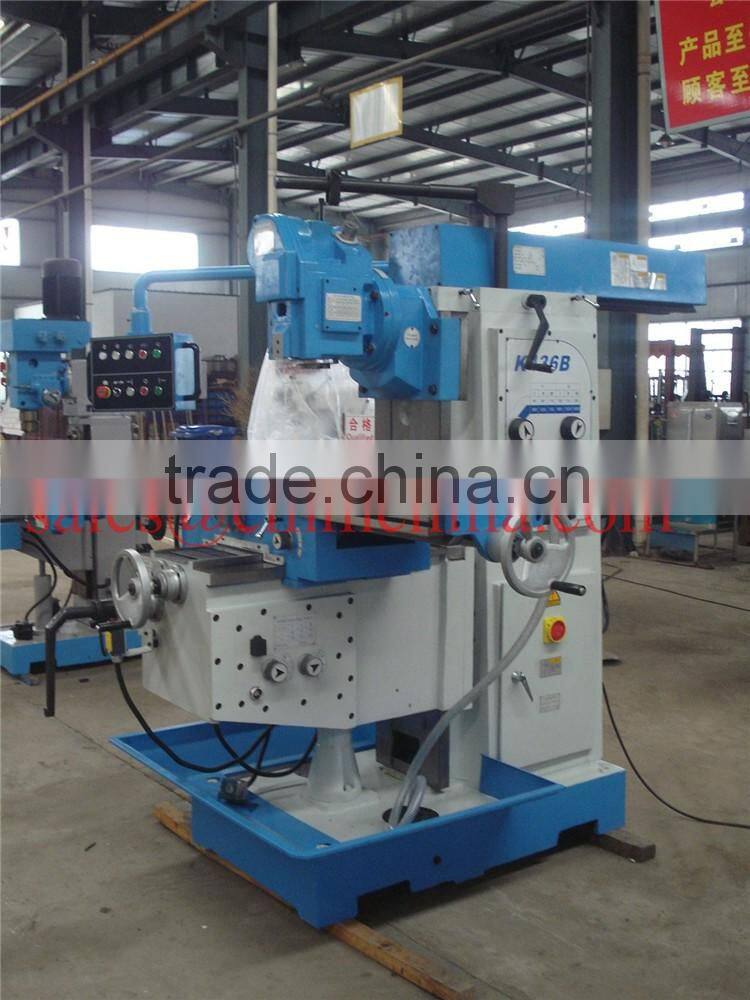

EMM K436B knee type universal milling machine
K436B is a vertical-horizontal milling machine, vertical milling head is a patented milling head contains slotting head function, is a multi-purpose machines, the feed system for three-axis automatic feed, torque power strong, three-axis guide ways hardened.
Rectangular guide ways are on bed and Z axis high stability and rigidity.
Easy conversion of vertical / horizontal milling.
Specifications |
K436B |
|
Milling vertical shaft inner cone hole |
ISO40 |
|
Difference from spindle axis to guideway(mm) |
405 |
|
Slotting maximum traveling range (mm) |
105 |
|
Inserts works as extreme breadth |
16 |
|
Slotting stroke number of times (minute) |
80 |
|
Stroke number of times and transformation |
with variable speed and milling horizontal axis series are the same |
|
Horizontal axis turning |
positive rotation |
|
Tool rest rotation angle (degree) |
90 |
|
Slotting tool cutter bar center to milling |
525 |
|
The mounting dimensions |
With milling machine main axle joint taper |
ISO50 |
The mill subscribes the vertical guide rail angle |
55 degree dovetailed way rectangular guide way |
|
Milling machine vertical guide rail width |
260 280 300 320 360 |
|
Horizontal axis center altitude |
0-480 |
|
Table size(mm) |
360*1500 |
|
Table travel(mm) |
900*250 |
|
Overall dimensions(mm) |
2300*2000*2000 |
|
Main electrical machinery (kw) |
4KW |
|
Feeding motor(kw) |
1.5KW |
|
Feeding speed |
30.55.100 |
|
Spindle speed |
60 1800 |
|
Horizontal axis hole |
ISO50 |
|
Packing size (mm) |
2000*2000*2250 |
|
Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
Service during the Sale
1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.
2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.
3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.
After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
EMM is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team members includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.
