Help CenterECR03 Plastic Rivet Machine
Related Products
Specifications
ECR03 plastic rivet machine1 high-rigidity
2 improve the working environment
3 self-locking function
4clinch workpieces

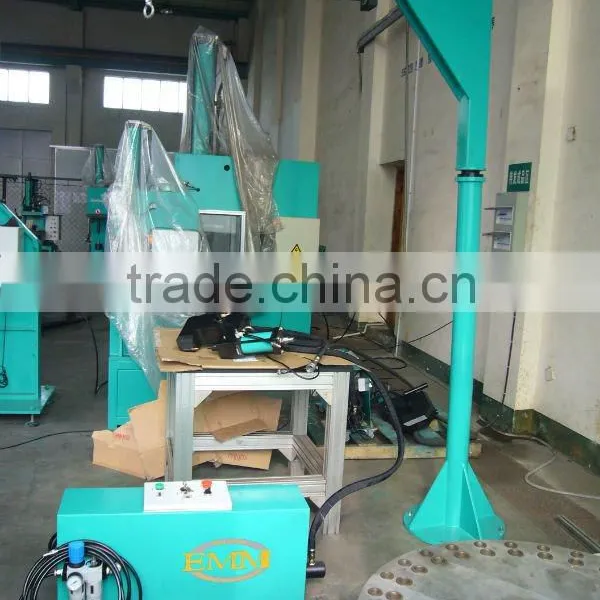

Hand Operated Riveting Machine
The riveting machine is used to process workpieces,free from clinch bolt connection and press fitting of bolts and nuts. It utilizes the punch and the dedicated connecting mold and imposes instantaneous highprocessing,during which the workpiece itself goes through cold extrusion deformation, and then an inlaid unstressed dot with certain tensile and shear strength is formed. Hence,two-layer workpieces of different materials and thicknesses are riveted together.
It is constructed by highstiffness and highstrength integrated superior cast materials and has reserved the die installation space.It works without vibration or impact, which helps to improve the production environment to some extent. Besides, this riveting machine is designed with soft in-position function to protect the die from impacts,extend the die life and to improve the product quality.
Name |
pressurized oil-air cylinder clinching machine |
Model |
ECR03.75.60.08 |
Machine No. |
12041692 |
The supercharger oil cylinder No. |
12035154 |
Total travel |
60 mm |
Power travel |
10 mm |
Max oil pressure |
234 bar (when inputting 6 bar air pressure) |
Max. force |
90 KN |
Pressure sensor No. |
20 121A |
Control system |
STE-01-H-08 |
Power supply |
220V/50HZ |
Control electrical source |
DC24V |
Power |
50W |
Rated minimum pressure |
3 bar(Below this pressure equipment action will be difficult) |
