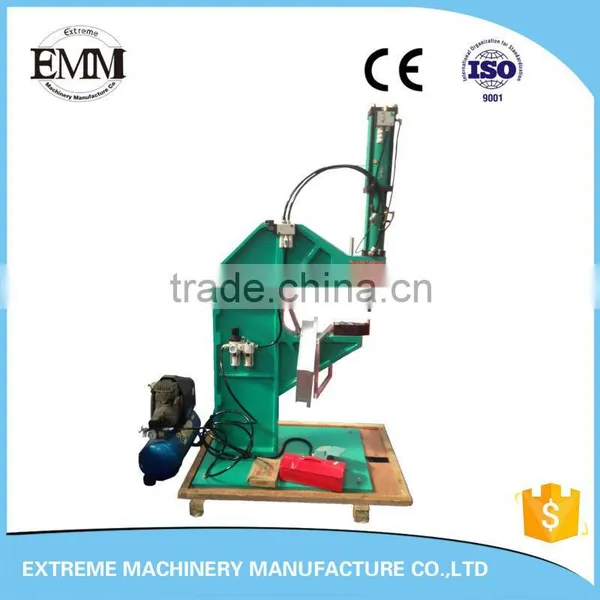

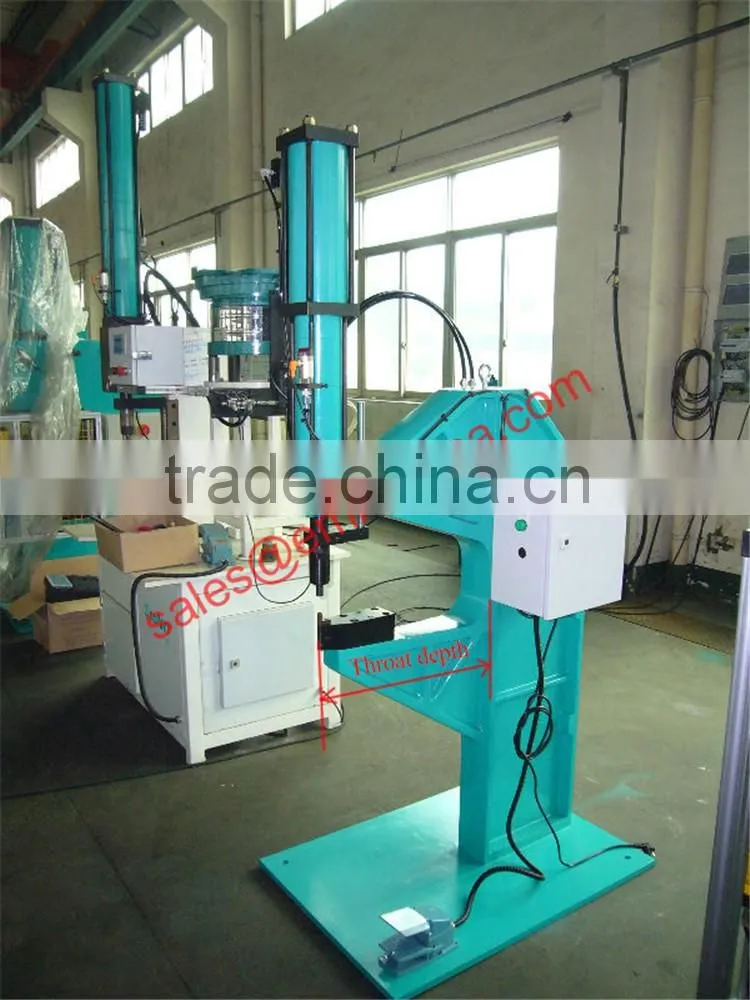

EMMCHINA EEC08 foot pedal pneumatic clinching machine
EMMCHINA EEC08 foot pedal pneumatic clinching machine
The equipment is used for user of products processing, riveting one time of one piece.
The die installation equipment adopts EEC08 organism, to insure die centering. The organism with welding overall steel plate can guarantee the user’s space. Without vibration and impact, the equipment will improve the working condition greatly. The air-hydraulic force cylinder has the function of soft place, protect the mold not to receive attack, enhance the using life of the dies, increase the qualified rate greatly.
According to the user’s practical application and the characteristic of this machine, it starts with button switch, and also sets up handle option switch.
Product specifications
Equipment Name: Air-hydraulic pressurization cylinder Riveting equipment
Equipment model: EEC08
The total stroke: 100 mm
Force itinerary: 10 mm
The maximum oil pressure: 6bar
The largest power: 76 (KN)
Pressure Sensor: 20 121A
Control systems: of STE-01-H-08
Power supply: 220V/60HZ
Control power source: DC24V
Power: 50W
Rated minimum pressure: 3 bar (lower than the pressure device will act difficulty)
Rated maximum pressure: 6 bar (higher pressure equipment will be damaged)
EMMCHINA EEC08 foot pedal pneumatic clinching machine
