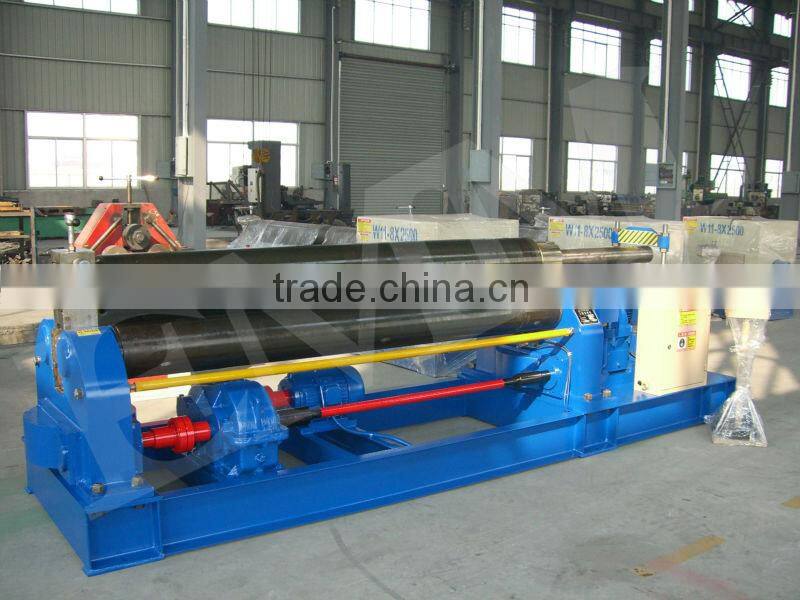

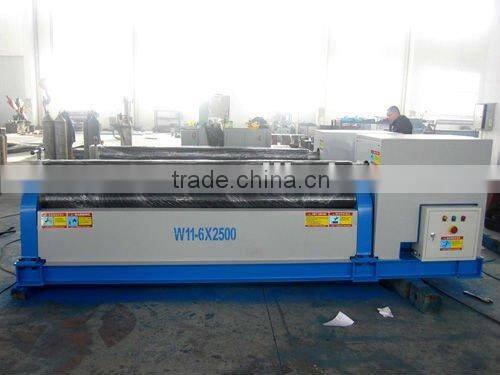

W11-6*2500 mechanical folding machines metal

Specifications

W11-6*2500 mechanical folding machines metal
1.NC control
chanical system

W11-6*2500 mechanical folding machines metal



Specifications and Characteristics:

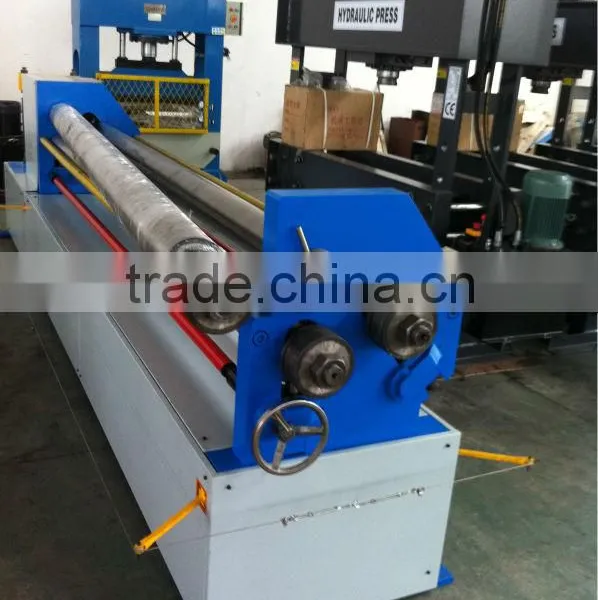

This roller is in the form of three roller symmetrical type,the upper roller doing vertical movement between the center of two lower rpllers.Hydraulic action comes from oil through the hydraulic cylinder on the piston .The  two rollers rotates through the decelerationthe machine's output gear meshing with the next roll teeth, provide torque to the roll sheet, this is a compact structure, easy operation and maintenance.

Main technical data:





W11-6x2500,the technical data as following :

Max thickness :                                       6mm

Max width :                                           2500mm

Yielding limit if sheet metal :                    245Mpa

Diameter of top shaft:                             210mm

Diameter of bottom shaft:                       160mm

Central distance between bottom shafts:             250mm

Motor power:                                         5.5kw

Weight:                                                  5800 kg

Dimension:                                             3710x1170x1310mm
