HIQ-5510 H.265 5 Megapixel Outdoor Vandal Proof Dome PoE IP Camera
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
hiQview
Model Number:
HIQ-5510
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HIQ-6511 H.265 Wireless 5 Megapixel Outdoor WeatherProof IP CameraNegotiableMOQ: 1 Piece -
HIQ-6510 H.265 5-Megapixel Outdoor Weather Proof Bullet IP CameraNegotiableMOQ: 1 Piece
-
HIQ-6411 H.265 Wireless 4-Megapixel Outdoor Weather Proof Bullet IP CameraNegotiableMOQ: 1 Piece
-
HIQ-7210 H.265 Speed Dome 20X Optical Zoom IR-150M Outdoor Full HD IP CameraNegotiableMOQ: 1 Box
-
HIQ-6410 H.265 4-Megapixel Outdoor Weather Proof Bullet IP CameraNegotiableMOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
hiQview
Model Number
HIQ-5510
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
Infrared
Special Features
Other, IR-Cut Filter, ONVIF, IP66, Support mobile monitor
HIQ-5510
on
hiQview.com:
/pro/detail.php?pid=371
HIQ-5510

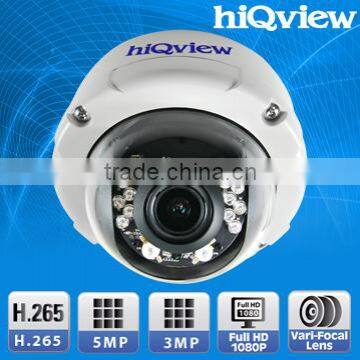

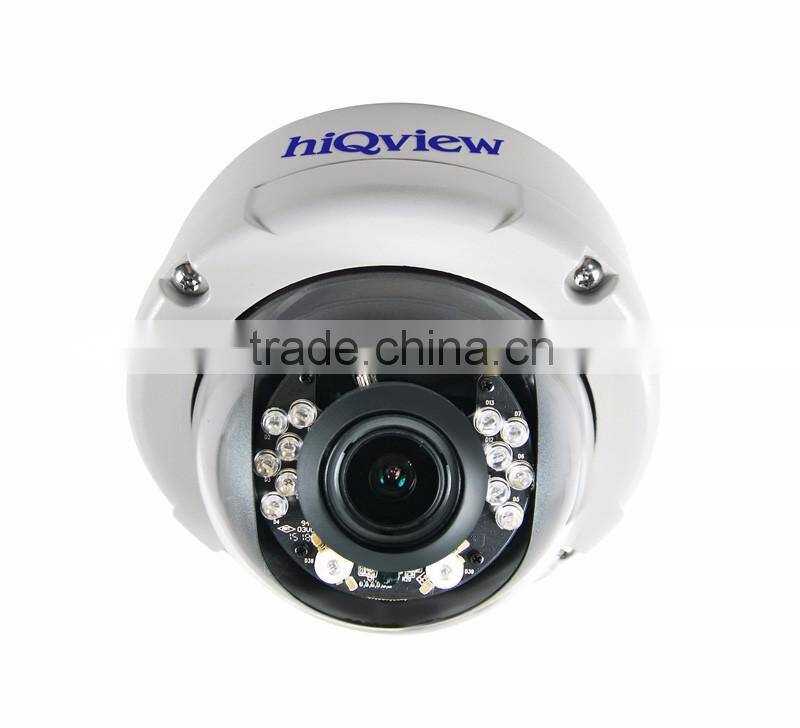

H.265 5-Megapixel Outdoor Vandal Proof Dome IP Camera

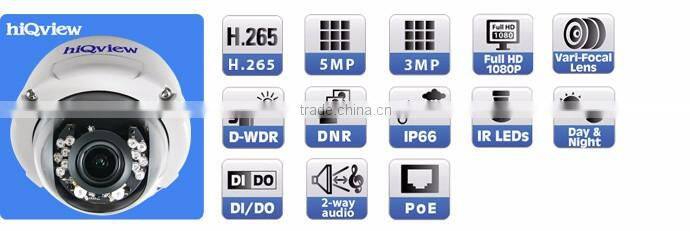

Features
* H.265/ H.264/ M-JPEG Compression
* Max. resolution: 2592 X 1944 (5-Megapixel)
* Saving Bandwidth up to 50%
* 1/3.2" Megapixel CMOS sensor
* 30 fps @ 2592 X 1944 (5-Megapixel) real-time
* Digital Wide Dynamic Range (D-WDR)
* 3D and 2D Digital Noise Reduction (DNR)
* Support ROI (Region of Interest) Function
* 3-10.5mm @ F1.4 Vari-Focal lens
* IR Distance: 20M, 12 Units 5φ + 2 Units High Power IR LEDs
* Mechanism IR Cut filter for day / night function
* IP66 Weather-Proof for outdoor application
* Support Vandal Proof IK10
* Support 2-way audio
* Power over Ethernet
* Support mobile phone remote monitoring
* Free bundled 64 CH recording software
Specifications
| Camera | |
| Image Sensor | 1/3.2" CMOS |
| Sensor Resolutions | 5 Megapixel |
| Max. Resolutions | 2592x1944 |
| Sensitivity | Color : 0.5 Lux (AGC On), B / W: 0.1 Lux (AGC On) |
| Lens Type | Vari-focal Lens 3-10.5 mm @ F1.4 |
| Angle of View | Horizontal: 26.94°~70.25° |
| Veritical: 20.17°~51.16° | |
| ICR | Mechanism IR Cut Filter |
| LED | 12 Units 5φ + 2 Units High Power, 850nM |
| IR Distance | 20M |
| Video / Audio | |
| Vido Compression | H.265/ H.264/ M-JPEG |
| Video Profile | 2592*1944/ 2048*1536 / 1920*1080 / 1280*720 / 640*480/ 320*240/176*144 |
| Frame Rate | Up to 30fps @ 2592*1944 |
| Up to 30fps @ 2048*1536 | |
| Up to 30fps @ 1920*1080 | |
| Up to 30fps @ 1280*720 | |
| Up to 30fps @ 640*480 | |
| Up to 30fps @ 320*240 | |
| Up to 30fps @ 176*144 | |
| Triple Streaming | Yes |
| Image Snapshot | Yes |
| Full Screen Monitoring | Yes |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, |
| AGC, Night Mode, WDR, Flip, Mirror, Noise Reduction, | |
| Day&Night Adjustable | |
| Video Bitrates Adjust | CBR, VBR |
| Audio | G.711(64K) and G.726(32K,24K) audio compression |
| Input : External Audio in | |
| Output: External Line out | |
| Support 2-way audio | |
| SD Card (Optional) | |
| RecordingTrigger | Motion Detection, IP check, Network break down(wire only), Schedule, DI |
| Video Format | AVI, JPEG |
| Video Playback | Yes |
| Delete Files | Yes |
| Software | |
| Search & Installation | IP Installer |
| Bundled NVR Program | Free Bundle 64 Channel Recording Software |
| Firmware Upgrade | HTTP mode, can be upgraded remotely |
| Network & Security | |
| Ethernet | 10 / 100 M Base-T |
| Support Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, |
| UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour | |
| Simultaneous Connection | Up to 10 |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, |
| 802.1X port-based authentication for network protection | |
| Power over Ethernet | Yes |
| System Integration | |
| Triggered Action | Mail, FTP, Save to SD card, DO, SAMBA |
| Motion Detection | Yes, 3 different areas |
| Private Mask | Yes, 3 different areas |
| Pre/ Post Alarm | Yes, configurable |
| General | |
| CPU | Multimedia SoC |
| RAM | 512MB |
| Flash | 32MB |
| I / O | 1 DI / 1 DO |
| Video Out | Yes |
| Power | DC 12V Max: 5.52W(IR ON), 3.24W(IR OFF) |
| PoE Max: 7.20W(IR ON), 4.32W(IR OFF) | |
| Water Resistance | IP66 |
| Operation Temperature | -20°C ~ 60°C (*IR OFF) |
| Dimension | 137 mm (Ø) x 102mm (H) |
| Weight | 890g |
| View System Requirements | |
| OS | Windows 7, 8 , 10 ,XP |
| Browser | Microsoft IE 6.0 or above, Chrome, Safari, Firefox |
| Hardware Suggested | Intel Dual Core 2.8G, RAM: 4GB, Graphic card: 128MB |
| *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. | |
