Prominent advantages of engineering prefab house :
1,Firm structure: Safe and reliable light steel flexible structural system.
2,Flexible layout:Doors, windows and indoor partition can be located at any position.
3,Easy & quick installation:6 worker can finish 300sqm prefab house in 2 days.
4,Economical:Thanks to our customized design and optimized material application.
5,Widely application:Construction site, office building, family living house,dormitory, canteen, recreation room, washing room, outdoor temporary building, etc.
6,Environment friendly:Repeated use, no construction garbage caused.
7,Life span:Anti-rust and normally more than 15 years using life.
Technical Parameters:
A,Overall weight:50~60kg/sqm
B,Seismic fortification intensity:8 grade
C,Wind-proof capacity:wind speed 20m/s, resist 8grade wind
D,Floor loading capacity:150kg/sqm
E,Roof loading capacity:60kg/sqm
F,External wall bearing capacity:50kg/sqm
More information please refer to
/product/717300676-215732115/Technical_Parameters_of_prefab_house.html

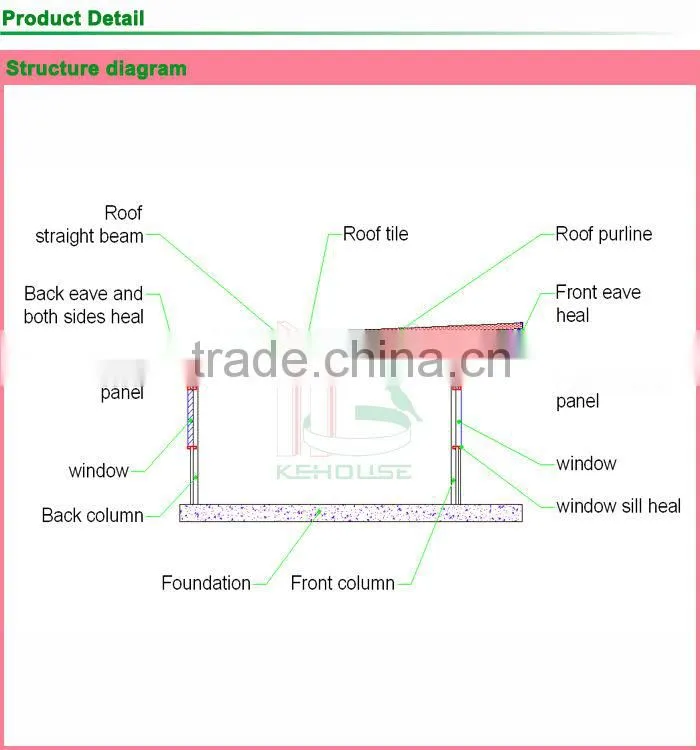

FOSHAN KEHOUSE LIGHT STEEL HOUSE CO.,LTD | ||||
No. |
Component |
Specification |
Material thickness |
Remark |
I Main steel structure | ||||
1 |
Ground beam |
50#U aluminum slot |
/ |
Grey white |
2 |
Column |
80×80 square tube |
2.8mm |
Grey white |
3 |
Straight beam |
150×75 flat pipe |
2.5mm |
Grey white |
4 |
Roof purlin |
80×40 flat pipe |
1.2mm |
Grey white |
5 |
Ring beam |
80×40 flat pipe |
1.2mm |
Grey white |
II Wall | ||||
1 |
External wall panel |
EPS sandwich panel or rock wood panel |
50mm,75mm,100mm for your options |
Grey white |
2 |
Inner partition board |
EPS sandwich panel or rock wood panel |
50mm,75mm,100mm for your options |
Grey white |
III Roofing | ||||
1 |
Roof tile |
EPS sandwich tile |
50mm,75mm,100mm for your options |
Blue, red |
IV Door&window | ||||
1 |
Door |
Steel anti-theft door |
870X2100mm |
|
2 |
Window |
PVC sliding window |
Width1150×height 100mm |
|
Click to check material pictures
/product/718607650-215732115/Luxury_Prefab_house_s_components.html
