Specifications
1,Stable structure and sloping shape2,Cost and labor saving
3,Long-term use and recycle
4,Low foundation cost

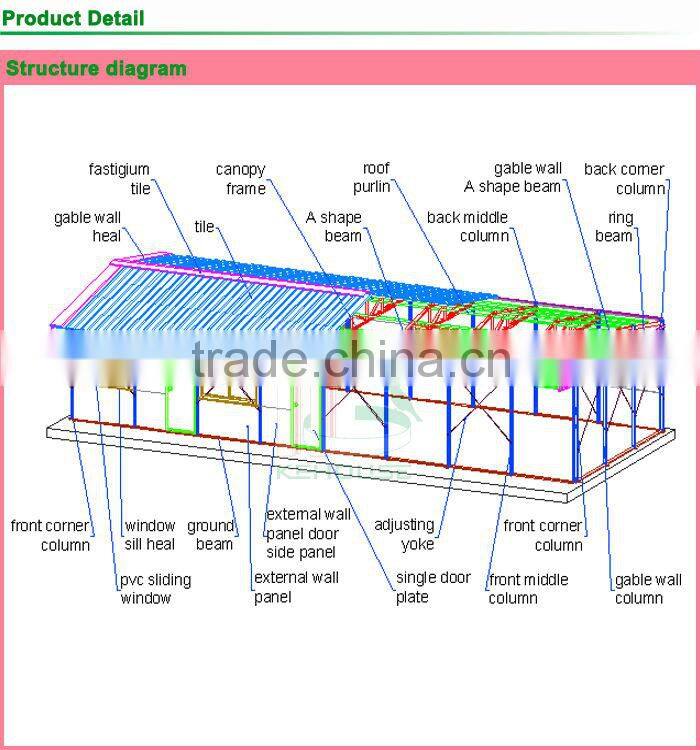

Main advantages of prefabricated office building : 1. Stable structure: Safe and reliable light steel flexible structure system.
2. Beautiful decoration: Beautiful materials, bright color, flat surface and art decoration. 3. Flexible composition: Doors and windows could be installed at any position, separate wall could be built at any transverse axis.
4. Easy & quick to install: Repeated use, simple tools for installation. One worker could install 20-30 square meters per day, 6 workers could work out 3K×10K house in two days.
5. Economical: Compared with concrete buildings, it costs much less.
6. Long life span: All the outside steel structure is galvanized, anti-rust, which makes its using life more than 10 years.
7. Environmental friendly: Professional design, easy installation, recycling use, no construction waste.
FOSHAN KEHOUSE LIGHT STEEL HOUSE CO.,LTD | ||||
No. |
Component |
Specification |
Material thickness |
Remark |
I. Main steel structure | ||||
1 |
Ground beam |
8#C steel |
1.8mm |
Blue paint |
2 |
Ring beam |
8#C steel |
1.8mm |
Blue paint |
3 |
Column |
Double 8#C steel |
1.8mm |
Blue paint |
4 |
Straight girder |
8#C steel+50×30 square tube |
1.6mm+1.2mm |
Iron red |
5 |
Floor purlin |
8#C steel |
1.6mm |
Iron red |
3 |
A shape beam |
80#C steel + 50x30 flat pipe |
1.8mm+1.2mm |
Iron red |
4 |
Roof purlin |
50×30 flat pipe |
1.2mm |
Slivery white |
5 |
Stair |
16#C steel |
2.5mm |
Black paint |
stair tread |
steel plate |
2.5mm |
Black paint |
|
walkway board |
steel plate |
2.5mm |
Black paint |
|
6 |
Canopy frame |
8#C steel |
1.8mm |
Blue paint |
7 |
Canopy frame support |
Φ25round pipe |
2.0mm |
Blue paint |
8 |
Lateral bracing |
angle steel |
3.0mm |
Blue paint |
II. Wall | ||||
1 |
External wall panel |
EPS sandwich panel or rock wood panel |
50mm,75mm,100mm for your options |
Grey white |
2 |
Inner partition board |
EPS sandwich panel or rock wood panel |
50mm,75mm,100mm for your options |
Grey white |
III. Roofing | ||||
1 |
Roof tile |
830 PU tile |
20mm |
Blue, red |
IV. Door & window | ||||
1 |
Door |
color steel sandwich panel door |
870X2100mm |
Grey white |
2 |
Window |
PVC sliding window |
Width1748×height 925mm |
|
V. Floor | ||||
1 |
Floor board |
Plywood |
15mm |
|
