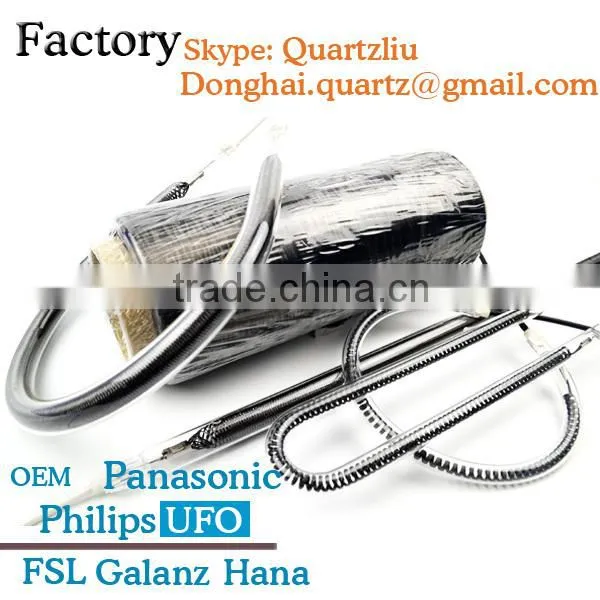

Quartz heater infrared heater

Specifications

1 Infrared heating lamp.
2 China famous brand name WANHUASHAN.
3 More than 20 years experience in this industry.





1 Quartz tube etc:



 A Clear fused quartz tube available as continuous machine drawn and automatic controlled tubing. With high purity,good spectral transmission and well controlled dimension and lower OH ppm and so on. Supplied 2-300mm.

 B Big size quartz rod:  With melting technology 2-80mm  High purity High light transmittance No black center No air line Less air bobbles.  Widely used in Quartz glass instrument Laser production Fiber fabrication Optical lenses and Semiconductor.

 C Transparent quartz slab: Thickness 3-8mm Wideness of 300mm Length up to 3000mm No air lines and bubbles.  Thickness tolerance is within 5% Used as High temperature resistant windows and for quartz glass instrument and optical lenses.

 D Large OD tansparent quartz tube for IC and Photovovoltaic industry 200-500mm  Used in IC industry Furnace diffusion tubes Cleaning ank,quartz slab in photovoltaic industry and chemical pipes.  15-200mm used in semiconductor light sources and chemical tube.

 E UV-stop quartz tube: Mainly used in Lighting resources Se-miconductor Electric heating Infra-red heating,Optical communication and Chemical industry.

 F Ozone free quartz tube: Mainly used in free germicidal lamps and other kinds of lamps.

 G Twin quartz tube: Mainly used for the coating heater of the luxury cars.

 E Quartz wares for semiconductor: Like quartz boat quartz flange quartz crucible and quartz vertical furnaces  quartz tank etc.are essential to make silicon slice in the semiconductor.

2  Infrared halogen lamp:



    Kangda infrared emitter is made by a low OH ≤ 10ppm quartz tube  with a 91 grade filament inside tomake sure leading quality in heating industry.



As to details of lamps we have high quality contro of Filament 91 grade   Filament heating treatment   Anchor outer diameter  Anchor quantity and position   Embossing condition  Filament Lighting length   Filament lead Sealing condition   Anchor center condition   Halogen gas rate   Low oh ppm qartz tube  Air exhausting condition   Vacuum degree etc ( This is why we can produce more than 5000 hours lifetime lamps)





Applied in : suitable for fast heating of surfaces parts or thin thickness materials such like Plastic Water and other solvents absorb particularly well the radition at this wavelength.

                   Space heating Dring of lacquer Paint Printing ink Micro-wave oven and heaters etc.





3 Far infrared carbon heating lamp:



   Far infrared carbon heating lamp is high-tech product is different from from traditional heating tube such as metal wire ,halogen and etc

With long life High efficient electrothermal energy conversion Far infrared radiation Health care so on advantages  Wavelength 4-14um.



Advantages:

1 : More than one third of energy saving than halogen heating lamp.

2:  Health and environment protection no harmful substance for human and environment.

3:  Heating rapidly but a little slower than halogen, do not need to touch the hetaing material it just focus on the heating area and no worry of overheat.

4:  Light wave sterilization High -speed movement of kight molecule everywhere no chance for bacteria can destroy hepatitis B, cold and so on virus.

5:  Safe and durable. Life is more than 2-3 times of halogen ,in jogging shutting off and long continuous working heater is no oxidizing and breakdown.



Application:Lightwave cooker Food oven Disinfector Tea drying macine Wig drying Plastic equipment for drying Car paiting Paper and Fabric Drying for wood etc



4 J type halogen lamp include class c.



We have J42 J48 J78 J118 J175 J189 J228 J254 J333 etc   With greater economy through long life and high output J series lamps are ideal for flood lighting wide areas for both indoor and outdoor lighting installations.

Carton case Wooden case Wooden pallet etc based on customer need.











Our Services



1.Reply you inquiry within 24hours ( Please talk to KANGDA sales manager  Alex Liu, he is professional with more than 10 years experience)



2.Customize size are welcome,OEM and ODM are welcome. Sample order are welcome.



3.The leading quality with reasonale price( maybe a little more expensive than small factory or other trading company).



4.Delivery the goods to our customers with speed and precision by sea by air DHL UPS FEDEX etc.

5.Payment: Paypal,West Union, T/T,D/P,D/A.L/C.





Note: we can custom-made upon request, please consult our sales department  Alex Liu  directly.
