Frame Type Plate Vulcanizing Press
Description of Frame Type Plate Vulcanizing Press
Used Solid Tyre Press

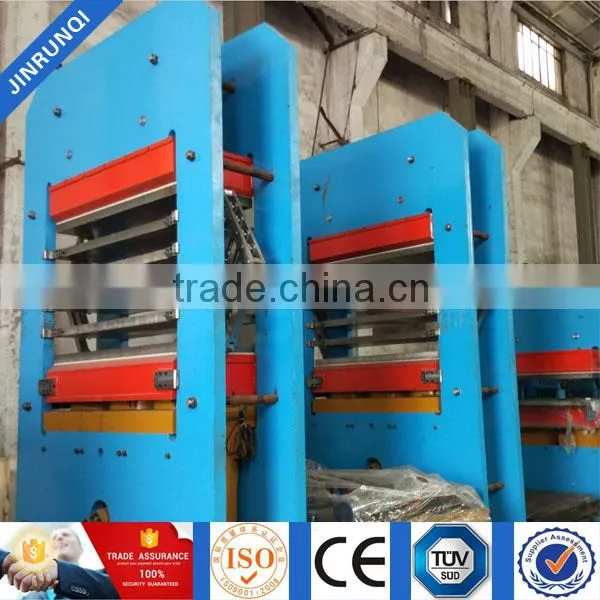

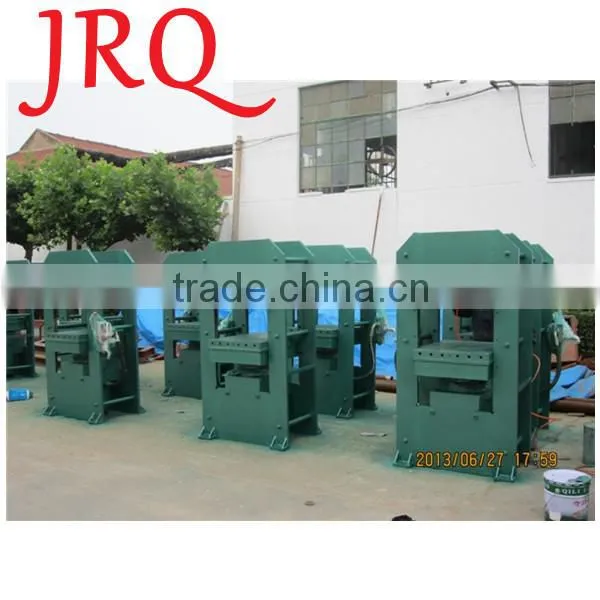

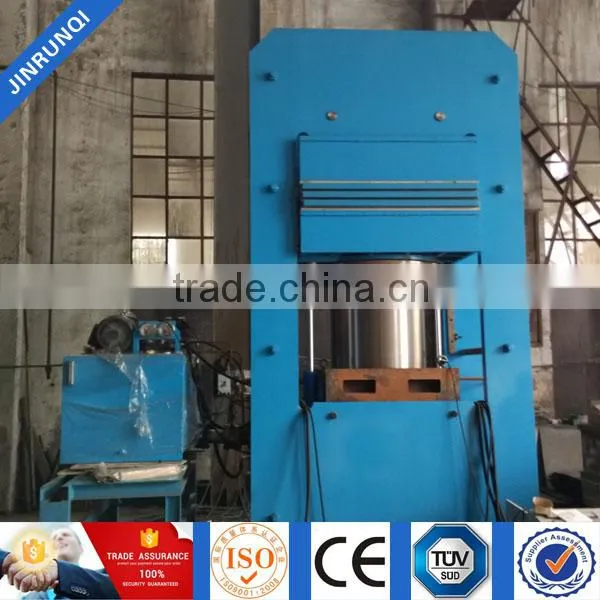

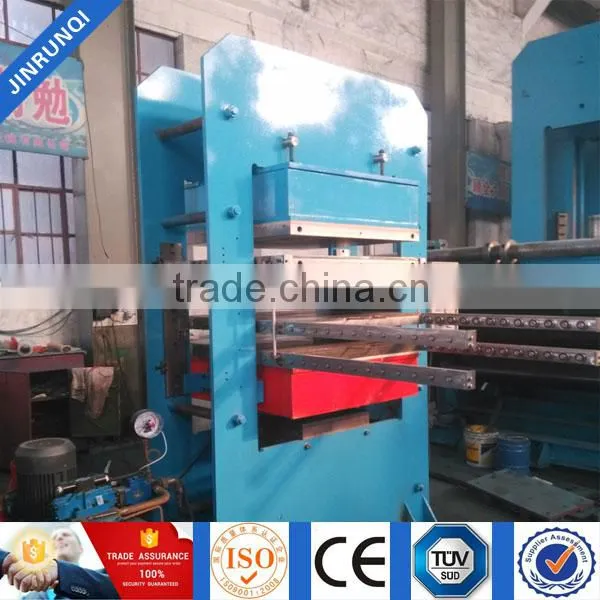

Frame type plate vulcanizing press is used for pressing rubber products and thermosetting plastic products, and also be used
to make seals, project rubber and rubber plate, rubber sheet, rubber waterstop, Air Spring, Bridge Bearing etc. High unit pressure ensures good rubber products quality. Based on different products, the machines can be equipped with model pulling and pushing device to reduce manual labor. Manual control, electrical control and PLC control is optional.
1. The machines with its frame structure, is easy to handle and convenient to use. The two deckle boards, with its holistic processing, are of the same size. This ensures no error on the depth of parallelism; the up and down platforms, are processed after being distressed and annealed. This helps keep its shape. The hot plates, being ground finished, ensures an error of less than 0.01.
And it can be lifted and lowered with quickly or slowly according to the customers’ requirements.
2. The main parts, pistons, are made of cold and hard alloys, abrasion index can reach 100%. With a main oil seal, its service life can reach 5 years without change.
3. Operation modes of this machine can be divided into manual and automatic mode. The heating methods can be divided into electric heating and hot oil heating.
Frame Type Plate Vulcanizer
Used Solid Tyre Press
Type |
800*800 |
1000*1000 |
1200*1200 |
1500*1500 |
Nominal clamp mould force (MN) |
1.60 |
2.00 |
2.50 |
3.15 |
Piston size |
800*800 |
1000*1000 |
1200*1200 |
1500*1500 |
Number of hydro-cylinder |
1 |
1 |
1 |
1 |
Piston diameter(mm) |
360 |
400 |
450 |
500 |
Stroke of piston (mm) |
300 |
300 |
300 |
300 |
Distance between hot plate(mm) |
300 |
300 |
300 |
300 |
Unit area pressure of hot plate(Mpa) |
2.5 |
2.0 |
1.8 |
1.5 |
Power(KW) |
3.0 |
5.5 |
8.0 |
8.0 |
Overall size(L*W*H)(mm) |
900*1600* 2500 |
1100*1900* 3600 |
1300*2100* 4000 |
1600*2450* 4200 |
Weight(kg) |
4000 |
5800 |
6800 |
8000 |
Close mould speed(mm/s) |
≥ 6 |
≥ 6 |
≥ 6 |
≥ 6 |
Contact me
Phone Number:0532-15864715281
Frame type plate vulcanizing press
1. Reply your inquiry in 24 working hours.
2. Customized design is available.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
4. We are manufacturer, specializing in producing all kinds of machinery , competitive with good quantity.
5. As an excellent seller, we always use superior raw materials, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
