2014 24VDC electronic overload relay wholesale
Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controller (e.g. temperature regulator, humidity regulator). The electronic relay is available in 24VDC and 48VDC versions.
Electronic Relay SM 010 Data:
|Electronic Relay In Stock|Solid State Relays|Electric Relay - Relays|relay's armature|electromagnetic relay|
| Contact type | contact maker (Relay/MOSFET) |
| Contact resistance | < 10mOhm |
| Service life | > 100 000 cycles |
| EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | 6-pole terminal, clamping torque 0.5Nm max., rigid wire 2.5mm² |
| Mounting | clip for 35mm DIN rail, EN50022 |
| Casing | plastic according to UL94 V-0, light grey |

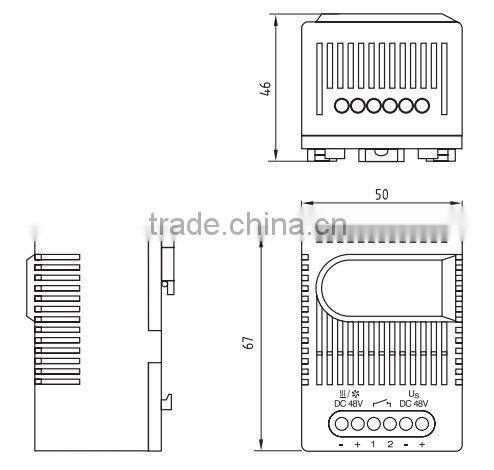

| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 85g |
| Fitting position | variable to installation |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type | IP20 |
| Approvals | VDE intended |
|programmable thermostat | digital thermostat | thermostat install |
switching thermostat||electronic thermostat|thermostat control|thermostat system| desired
| Art. No. | Operating voltage | Max. switching capacity |
| 01001.0-00 | 24VDC (20-28VDC) | 28VDC 16A |
| 01000.0-00 | 48VDC (38-56VDC) | 56VDC 16A |
|Electronic Switches|Switches & Relays |switches and relays|Electronic Components|

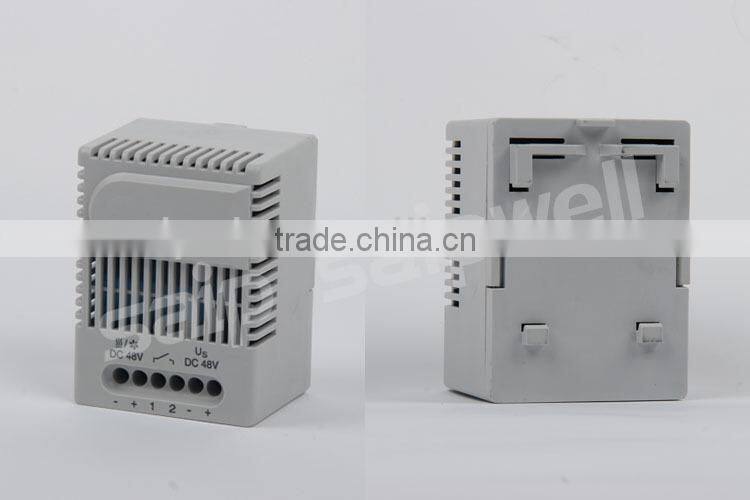

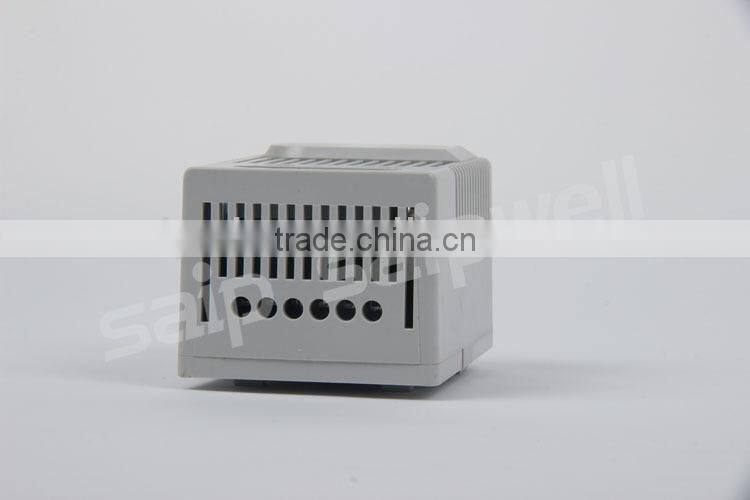

Electronic Relay SM 010 Image:
24VDC electronic overload relay |Electronic relays|Reed Relays||Ratchet Relay|Potter & Brumfield Relays|Automotive Relay| Electronic Relays India|

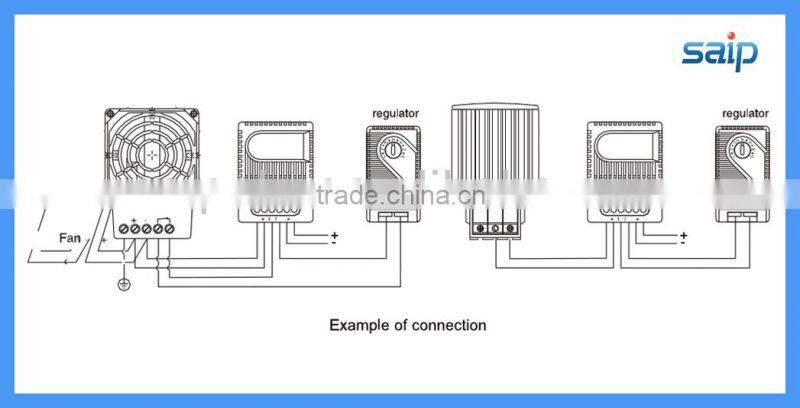

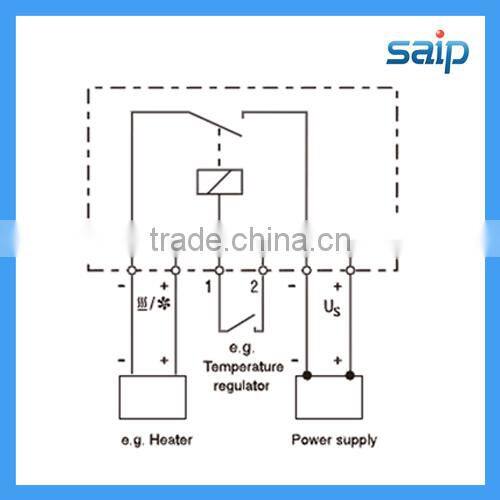

Example of connection :
24VDC electronic overload relay wholesale |Ratchet Relay|Potter & Brumfield Relays|Automotive Relay| Electronic Relays India|

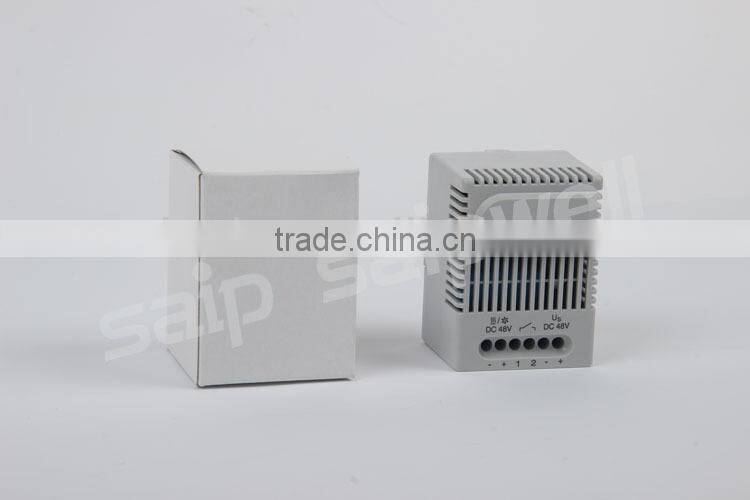

Electronic Relay SM 010 Package:
|Latching relay|Reed relay|Mercury-wetted relay|Mercury relay| Polarized relay|Machine tool relay|Ratchet relay|Coaxial relay|
24VDC electronic overload relay wholesale

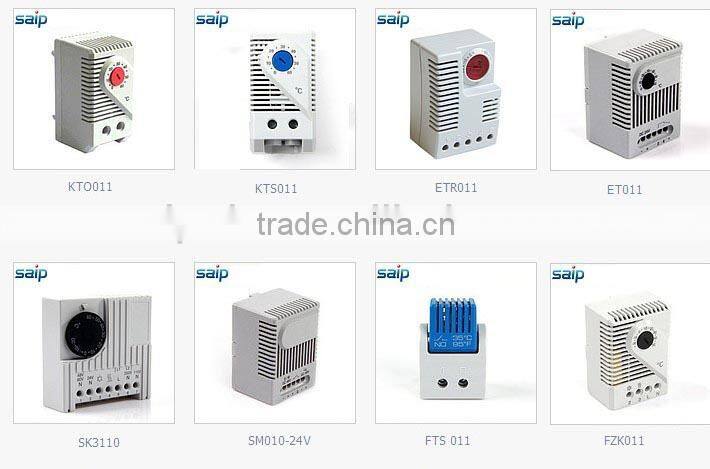

Thermostat Product show:
|Solid-state relay|Solid state contactor relayrelay|Forced-guided contacts relay|Overload protection relay|Vacuum relays|
24VDC electronic overload relay wholesale |electronic relay|electronic over current relay||electronic motor |protection relay|electronic time relay|

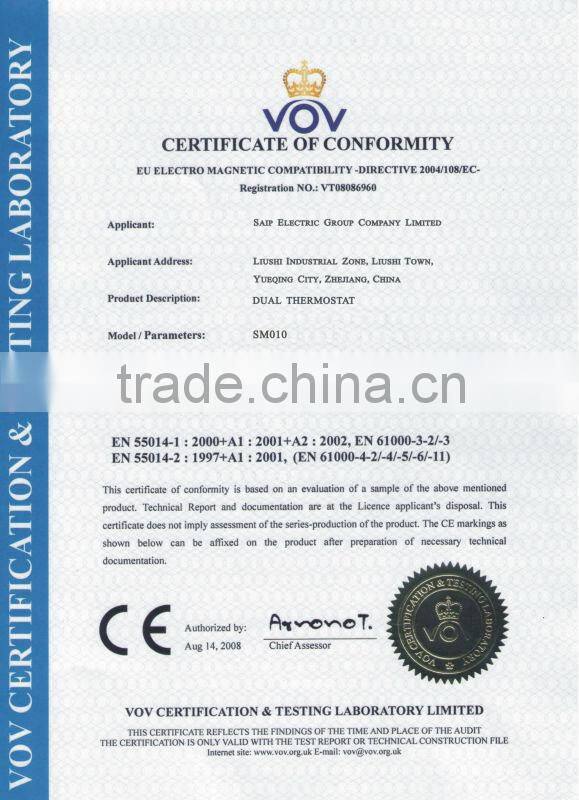

Certification:
Factory Image:
wifi thermostat|room thermostat|digital thermostat|ksd301 thermostat| |electronic motor protection |overload relays|
Saip And Electronic Relay Wholesale:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments., is an integrated enterprise which is focus on the , ODM, OEM as well as domestic & oversea sales in the field of industrial. We sells small compact thermostat / dual thermostat / adjustable humidity mechanical controller /high switching capacity thermostat / electronic thermostat.Our company is established to make different style industrial thermostat for our customer, in other words, the high performance is exactly made for beautiful life.
For industrial thermostat, we can package and deliver any ways you like. We can answer your questions about industrial thermostat within 24 hours in professional knowledge. We can also solve the industrial thermostat problems for you with our professional service.
