Specifications
Mig-315 igbt welding machines for sale1.Digital IGBT Inverter
2.AC/DC Pulse welder
3.Pulse tig welding
4.TIG/MMA welding

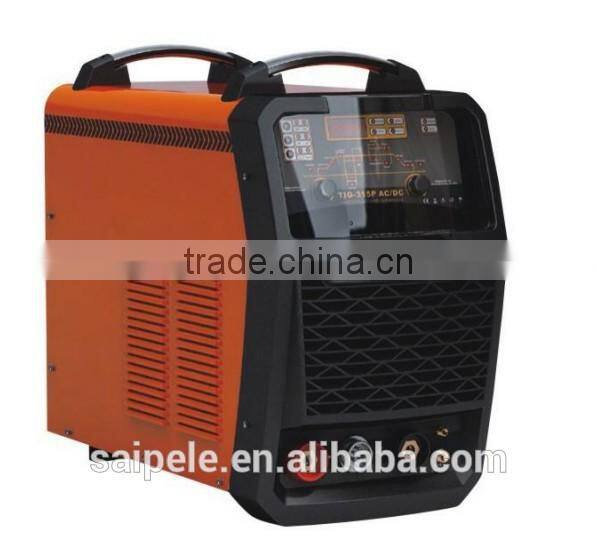

Mig-315 igbt welding machines for sale
| Why choose us? |
1. 10years - Saip Group Co.,Ltd is founded in 2004. |
Application:
1. IGBT high frequency soft switch transform,high effciency and reliability
Main articles: Shielded metal arc welding, Gas metal arc welding, Flux-cored arc welding, and Submerged arc welding
2. MCU controlled technology,multi-function in one machine,convenient to use
welding of cast iron, nickel, aluminium, copper and other metals.
3. Foot pedal to control current is optional
mig welding machine manufacture,wholesale /dealer mig welding machine
4. Passive power factor correction makes power factor higher
5. Easy to arc starting,stable arc,high performance
6. Accurate adjustment can achieve great penetration,aesthetic apperance of weling seam and low electrode consumption
Specification data:
| Inverter MIG-AC/DC Square Wave Welding Machine | |||
| Model | MIG-315AC/DC | MIG-500AC/DC | |
| Type | IGBT Module | ||
| Rated input voltage | three phase 380V±10% / 50Hz | ||
| Rated input capacity | 13KVA | 25.7KVA | |
| Rated input current | 20A | 39A | |
| Constant current | 5-315A | 20-500A | |
| Peak current | 5-315A | 20-500A | |
| Welding current for MMA | 20-315A | 20-500A | |
| Drive current for MMA | 10-200A | ||
| Base current | 5-315A | 20-500A | |
| Start arc current | 20-160A | ||
| Crater arc current | 5-315A | 20-500A | |
| Duty ratio | 1-100% | ||
| AC bias ratio | -50%~+30% | ||
| Pulse frequency | 0.2-20Hz | ||
| AC frequency | 20-200Hz | 20-100Hz | |
| Pre-flow time | 0.1-15s | ||
| Gas delay time | 0.1-15s | ||
| Current slow up time | 0.1-10s | ||
| Current decay time | 0.1-15s | ||
| Cleaning ratio | -40%~+40% | ||
| Rated duty cycle | 60% | 60% | |
| No-load voltage | 74V | 79V | |
| Efficiency | 79% | 77% | |
| Power factor | 0.95 | ||
| Net weight | 47.2KG | 75KG | |
| Insulation of main transformer | H | ||
| Insulation of output reactor | B | ||
| Note: the rated AC is defined in the condition of 50Hz. | |||
| including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, TIG torch (air cooled QQ300)×1pcs | |||
Our Competive:

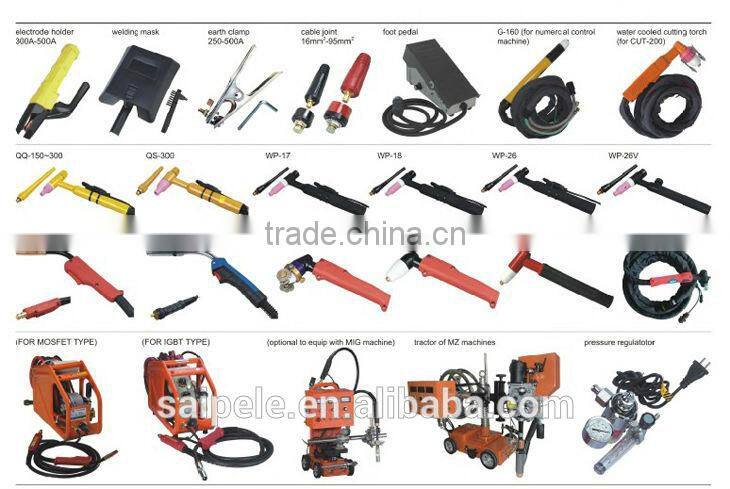

Accessories:
Packing:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY Saip.
* FULL SERVICE AND Welding PARTS BACK UP.
* 24 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.We do producing many different other series welding machines,if you feel interests,please send us an inquiry!
Brief Introduction:
We specialize in welding and cutting machines serires products, welding torch and welding accessories.
MIG/TIG/ARC/MMA/TIG welding machine; MIG/TIG Welding Torch;
Tungsten Welding Electrode; All kinds of flowmeters are available.
Offer OEM/ODM Service; Reasonable Price; Fast Delivery;
Send us inquires, you will get the quick response within 24hours!
