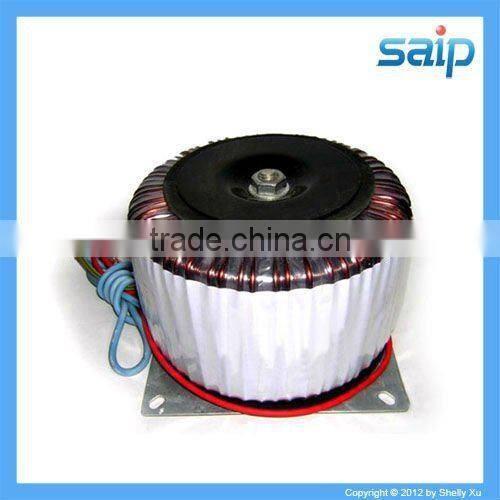

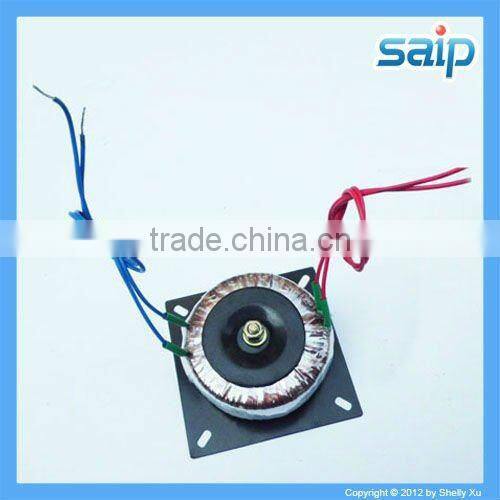

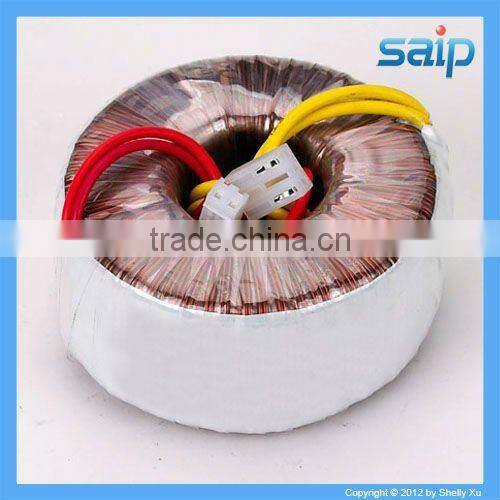

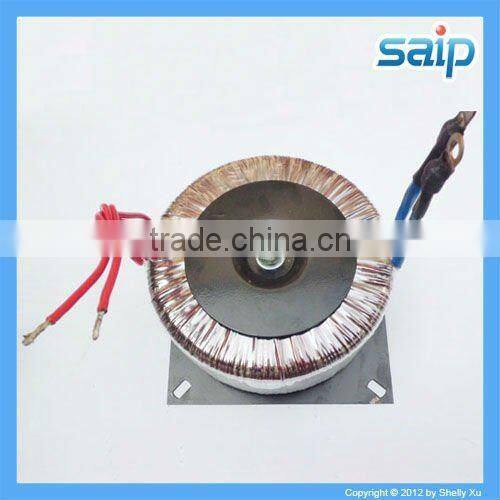

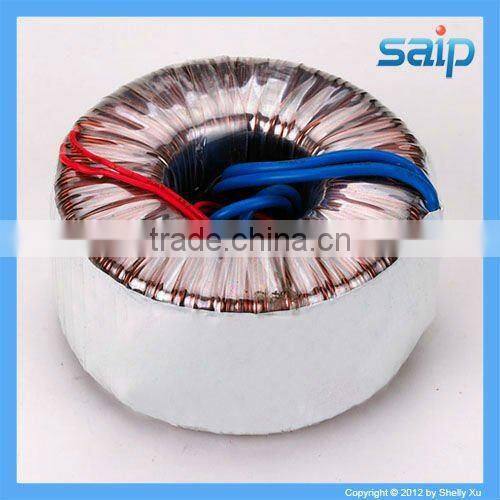

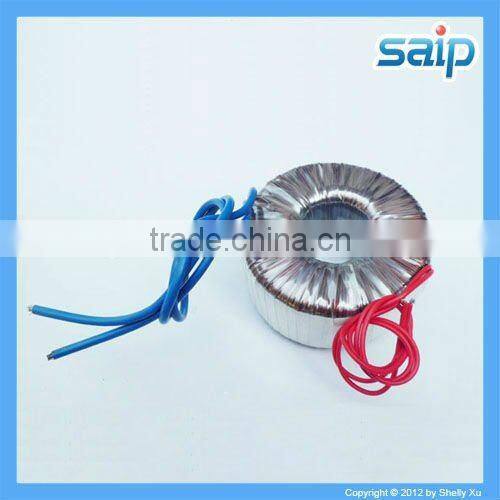

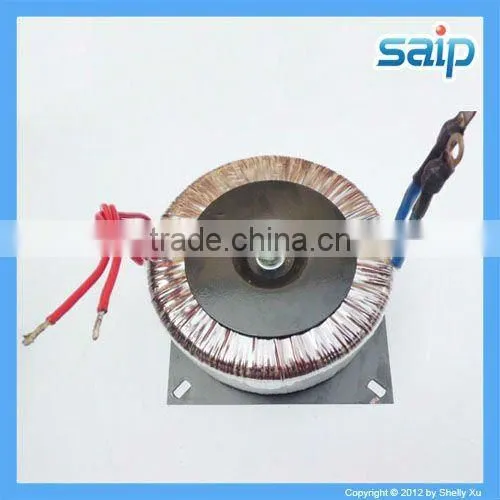

Toroidal Transformer 110v 220v 230v

Toroidal Transformer 110v 220v 230v thumbnail-1
Toroidal Transformer 110v 220v 230v photo-1
US$ 10 - 500 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip
Model Number:
BK
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip
Model Number BK
Usage Other, control transformer
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

toroidal transformer 110v 220v 230v
Elevator Transformer apply to be used as control power, working light of general el



BOD-50VA
Feature
It is producted by 0.27 mm or 0.30 mm high quality cold-rolled orientation silicon materials which is low iron loss and high magnetic, the advantages of our products are small size, low temperature, magnetic flux leakage small, installation easy.
High efficient
It is product by high quality material and the type is compact. It can narrow the gap between the coil and the core. So the efficiency is above 90%.
Low magnetic flux leakage
   The gap between core and coil is small and the coil is uniformly.
Low noise and low temperature
  Due to the high quality materil and the coil is uniformly, the resistance loss and the fever is very low.
Application
Toroidal transformer is widely used in the area of the power transportation and the tranform of voltage and current. It is widely used in the power technology and electronic area. Such as autotransformer, isolation transformer and lighting transformer etc. It also has special application,such as mutual inductor. We can produce the transformer as the guests’ requirements.



Power/VA Size Weight/kg Chasiss size Gland Screw
Power H/mm D/mm L/mm*W/mm Mounting hole/mm mm
20 32 70 0.5 80*80 6.5 M6
30 30 73 0.6 80*80 6.5 M6
50 30 80 0.85 90*90 6.5 M6
80 35 85 1.1 100*100 6.5 M6
100 40 90 1.32 100*100 8.5 M8
150 45 95 1.4 100*100 8.5 M8
200 50 105 2.4 110*110 8.5 M8
250 52 110 2.7 110*110 8.5 M8
300 55 110 2.9 110*110 8.5 M8
350 60 115 3.2 125*125 8.5 M8
400 65 120 3.5 125*125 8.5 M8
450 65 120 3.8 125*125 8.5 M8
500 68 120 4.2 125*125 8.5 M8
600 70 140 5.3 150*150 8.5 M8
700 70 147 5.6 150*150 8.5 M8
800 70 150 6.2 150*150 8.5 M8
1000 75 165 7.6 180*180 8.5 M8
1200 78 170 8.5 180*180 8.5 M8
1500 80 175 9.7 180*180 10.5 M10
1800 83 190 12.5 200*200 10.5 M10
2000 88 200 13.5 200*200 10.5 M10
2500 92 205 14.8 200*200 10.5 M10
3000 98 220 16.5 230*230 11.5 M10
5000 110 235 20.5 245*245 12.5 M10



toroidal transformer 110v 220v 230vtoroidal transformer 110v 220v 230vtoroidal transformer 110v 220v 230vtoroidal transformer 110v 220v 230vtoroidal transformer 110v 220v 230vtoroidal transformer 110v 220v 230v



NEW silicon steel sheet





Mark







Terminal
