Help Center100va Toroidal Transformer
Related Products
Specifications
Toroidal transformerHigh efficient
Low magnetic flux leakage
Low noise and low temperature
installation easy

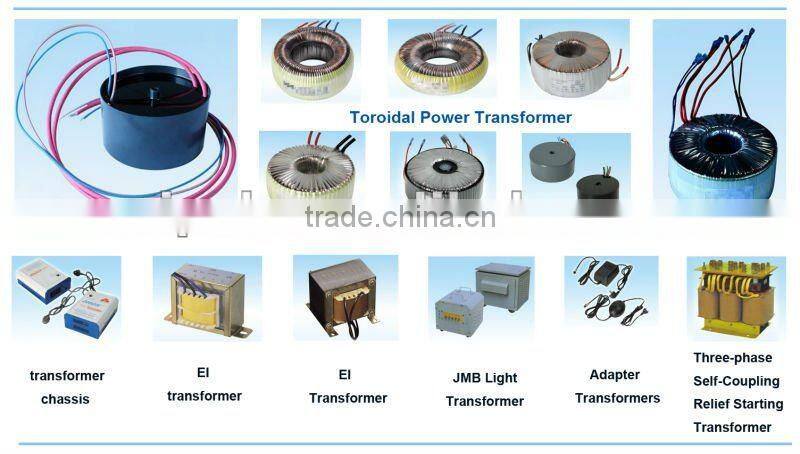

100va Toroidal transformer
Feature
It is producted by 0.27 mm or 0.30 mm high quality cold-rolled orientation silicon materials which is low iron loss and high magnetic, the advantages of our products are small size, low temperature, magnetic flux leakage small, installation easy.
High efficient
It is product by high quality material and the type is compact. It can narrow the gap between the coil and the core. So the efficiency is above 90%.
Low magnetic flux leakage
The gap between core and coil is small and the coil is uniformly.
Low noise and low temperature
Due to the high quality materil and the coil is uniformly, the resistance loss and the fever is very low.
Application
Toroidal transformer is widely used in the area of the power transportation and the tranform of voltage and current. It is widely used in the power technology and electronic area. Such as autotransformer, isolation transformer and lighting transformer etc. It also has special application,such as mutual inductor. We can produce the transformer as the guests’ requirements.
| Power/VA | Size | Weight/kg | Chasiss size | Gland | Screw | |
| Power | H/mm | D/mm | L/mm*W/mm | Mounting hole/mm | mm | |
| 20 | 32 | 70 | 0.5 | 80*80 | 6.5 | M6 |
| 30 | 30 | 73 | 0.6 | 80*80 | 6.5 | M6 |
| 50 | 30 | 80 | 0.85 | 90*90 | 6.5 | M6 |
| 80 | 35 | 85 | 1.1 | 100*100 | 6.5 | M6 |
| 100 | 40 | 90 | 1.32 | 100*100 | 8.5 | M8 |
| 150 | 45 | 95 | 1.4 | 100*100 | 8.5 | M8 |
| 200 | 50 | 105 | 2.4 | 110*110 | 8.5 | M8 |
