Specifications
DBW SBW Compensated Voltage Stabilizer1. Frequency: 50Hz/60Hz

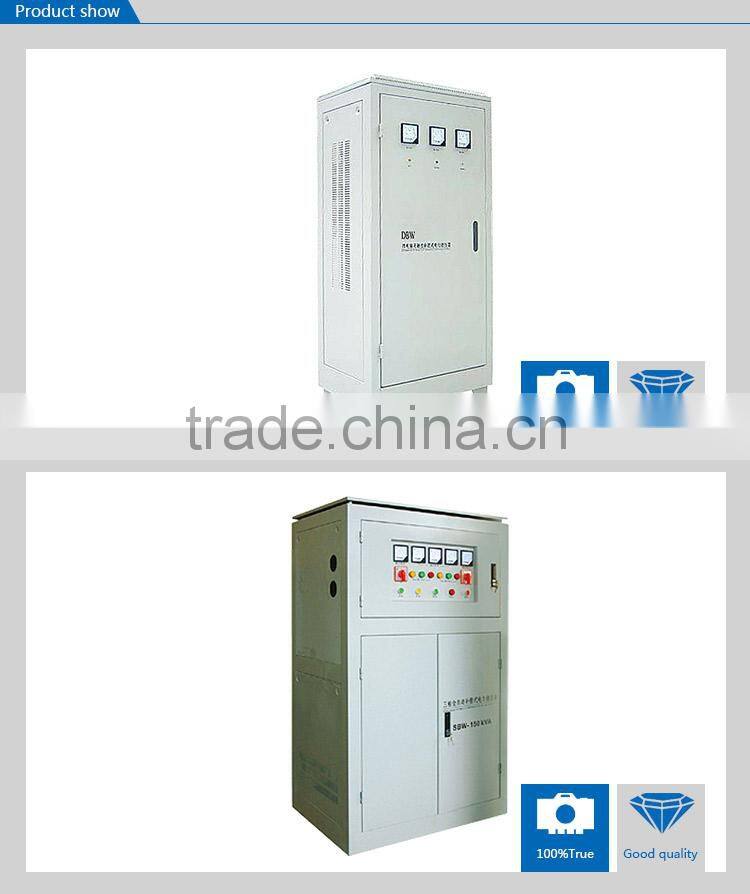

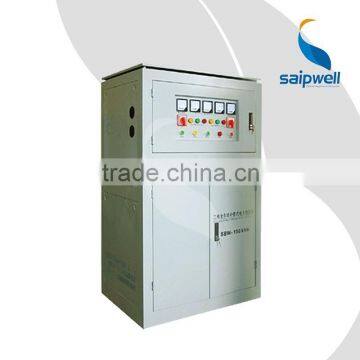

2015 China Factory DBW SBW Compensated Voltage Stabilizer
DBW SBW compensated voltage stablilizer is a contact adjustable automatic voltage compen-sation high-power regulating power device. When voltage from supply network is varied or dueto loading current effect, it automatically regulates the output voltage to ensure the normal func-tion of the varied of electric equipments.
| Input voltage | Single phases: 220V±20% or 220V±30% Three phases four-line: 380V±20% or 380V±30% |
| Output voltage | Single phase: 220V; Three phases: 380V |
| Phase | Single phase; Three phases four-line |
| Frequency | 50Hz/60Hz |
| Response | within 1 sec.(against 10% input voltage deviation) |
| Efficiency | Better than 95% |
| Ambient temperature | -10oC~+40oC |
| Waveform | Non-lack fidelity waveform |
| Insulation restortion | Better than 5MΩ |
| Overload | Double rated current, one min |
| Protection | Overvoltage, overcurrent, feed phases |
Outline and Packing
| Type | Outpower(kVA) | Outline(cm) | Weight(Kg) | Qty/CTN |
| DBW-20KVA | 20 | 70 x 50 x 135 | 283 | 1 |
| DBW-30KVA | 30 | 70 x 50 x 135 | 310 | 1 |
| DBW-40KVA | 40 | 70 x 50 x 135 | 330 | 1 |
| DBW-50KVA | 50 | 80 x 60 x 150 | 360 | 1 |
| DBW-60KVA | 60 | 80 x 60 x 150 | 380 | 1 |
| DBW-70KVA | 70 | 80 x 60 x 150 | 100 | 1 |
| DBW-80KVA | 80 | 90 x 70 x 170 | 430 | 1 |
| DBW-100KVA | 100 | 90 x 70 x 170 | 480 | 1 |
| SBW-50KVA | 50 | 80 x 62 x 135 | 350 | 1 |
| SBW-60KVA | 60 | 80 x 62 x 135 | 370 | 1 |
| SBW-100KVA | 110 | 85 x 52 x 150 | 420 | 1 |
| SBW-150KVA | 150 | 100 x 72 x 170 | 550 | 1 |
| SBW-180KVA | 180 | 100 x 72 x 170 | 570 | 1 |
| SBW-200KVA | 200 | 100 x 72 x 170 | 630 | 1 |
| SBW-225KVA | 225 | 110 x 80 x 180 | 660 | 1 |
| SBW-250KVA | 250 | 110 x 80 x 200 | 700 | 1 |
| SBW-300KVA | 300 | 110 x 80 x 210 | 740 | 1 |
| SBW-320KVA | 320 | 110 x 80 x 210 | 760 | 1 |
| SBW-400KVA | 400 | 110 x 80 x 210/2 | 1100 | 2 |
| SBW-500KVA | 500 | 110 x 80 x 210/2 | 1500 | 2 |
| SBW-600KVA | 600 | 110 x 80 x 210/2 | 2200 | 2 |
| SBW-800KVA | 800 | 85 x 100 x 220/3 | 2800 | 3 |
| SBW-1000KVA | 1000 | 85 x 100 x 220/3 | 3500 | 3 |
| SBW-1200KVA | 1200 | 85 x 100 x 220/3 | 4100 | 3 |
| SBW-1600KVA | 1600 | 110 x 110 x 220/4 | 5560 | 4 |
| SBW-2000KVA | 2000 | 110 x 110 x 220/4 | 7100 | 4 |
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed
4.Solved the problem with you during using our products
5.Samples will be offered to you for our future cooperation.
we can provide you good quality product and best service .
we can design the product as your demmand and we also have other type of stabilizers for you to choose.
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments. Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners. Saip,an ISO9001 certificated enterprise. With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
1.Please tell us the model and quantity and other request you need.
2.We make the PI for you.
3.After you confirm the PI, we arrange the order for you after receiving your payment.
4.After the goods finished, we send the goods out to you and tell you the tracking number.
5.We will track your goods until you receive the goods.
♦OEM is available: Material,size,Color and other requirements are customized.
♦High quality after-sale service :
1.Two years warranty
2.Track the order until you get the goods
3.Choose the shipping company according to customer's requirements
4.We will replace the broken parts with new parts in your next order
5.Solve the problem with you during using our products
♦Shipment: UPS/TNT/FedEX/EMS/DHL etc.(1-3days for sample,3-7days for order )
♦Payment:L/C, T/T, Western Union, Paypal.
Why Choose me?
1. We have professional export experience more than 10 years .
2. Professional quality, competitive price, fast delivery.
3. Strong customized service according to customers’ request.
4. Your inquiry will be replied in 24 hours.
5.Your any question will be given a satisfying answer.
6.Kinds of specifications can be customized.
7.Perfect after sale service.
8 We accept OEM&ODM.
9.We will protect your sales area, ideas of design and all of your private information.
