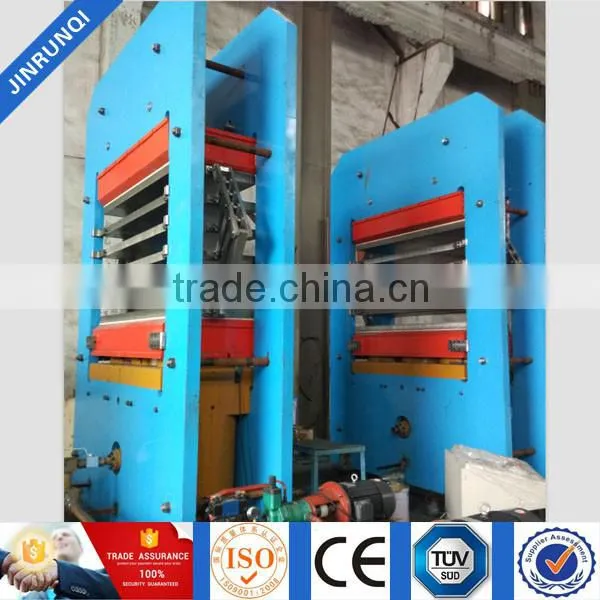

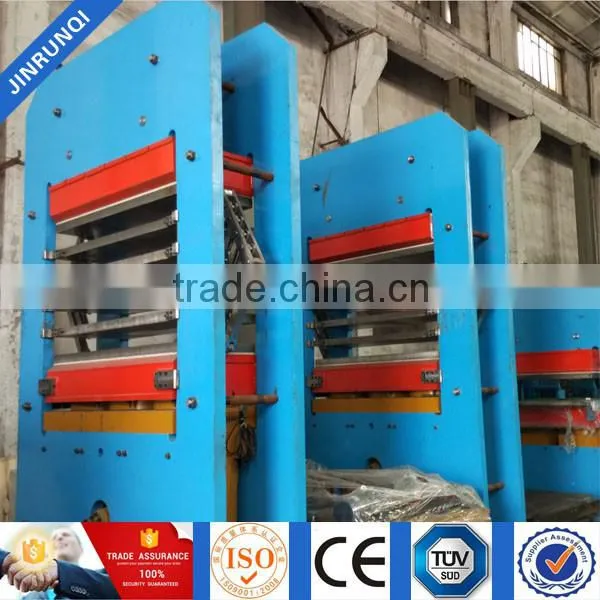

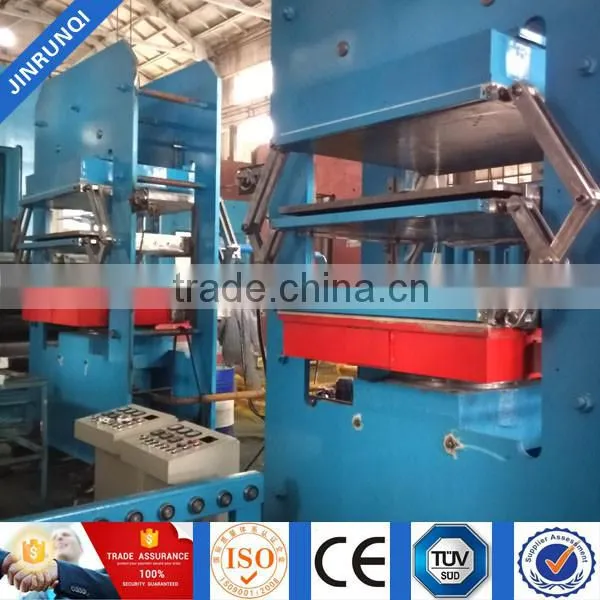

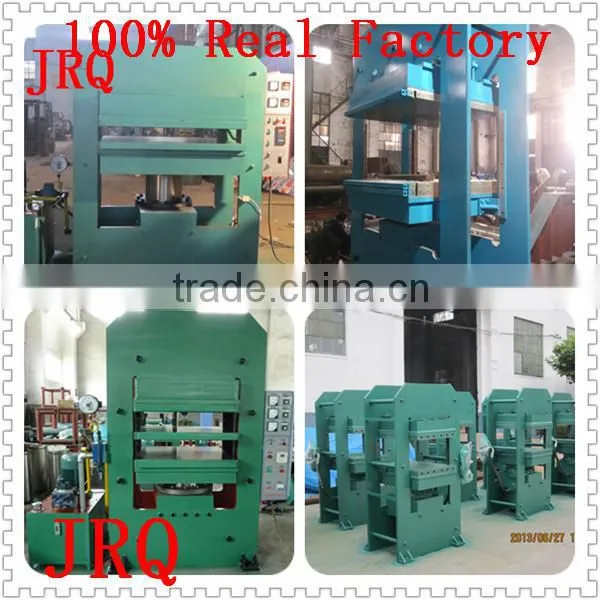

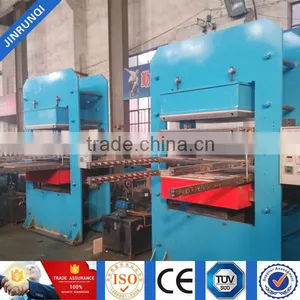

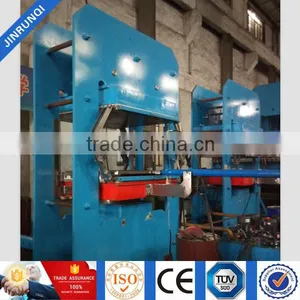

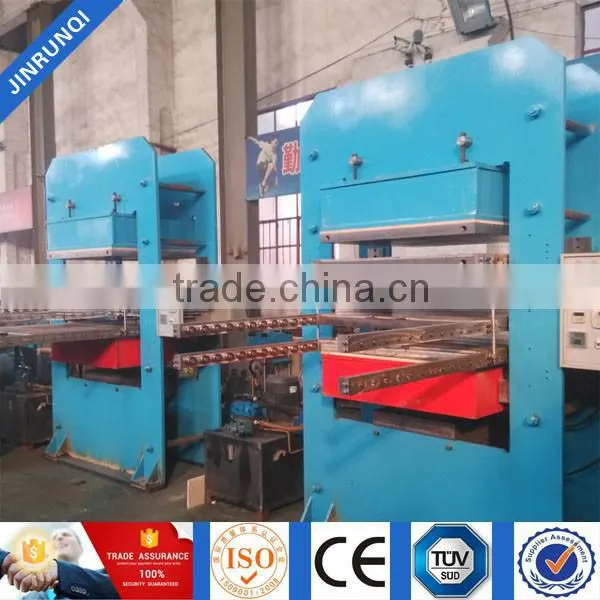

Frame type rubber hydraulic press
we can design and produce non-standard plate vulcanizing press according to your need.
We are 100% real factory , welcome to viste.

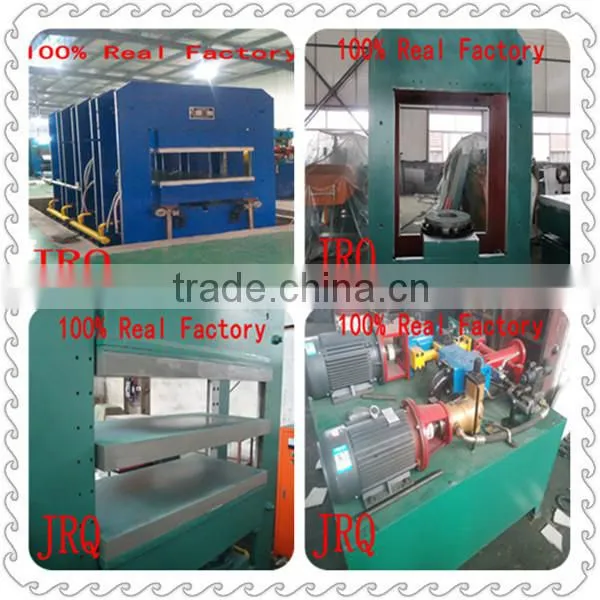

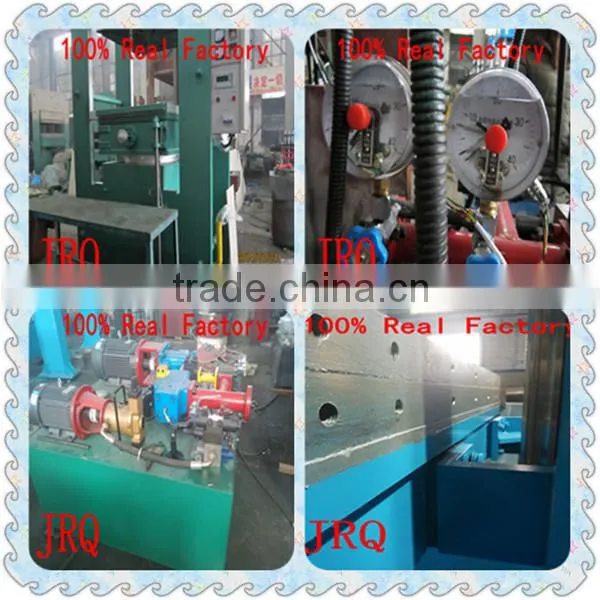

1. Features Of Frame Type Rubber hydraulic Press
- This machine, with its frame structure, is easy to handle and convenient to use. The two deckle boards, with its holistic processing, are of the same size. This ensures no error on the depth of parallelism; the up and down platforms, are processed after being distressed and annealed. This helps keep its shape. The hot plates, being ground finished, ensures an error of less than 0.01.
- It can be lifted and lowered with quickly or slowly according to the customers’ requirements. Vulcanizing Testing Machine
- The main parts, pistons, are made of cold and hard alloys, abrasion index can reach 100%. With a main oil seal, its service life can reach 5 years without change.
- Operation modes of this machine can be divided into manual and automatic mode. The heating methods can be divided into electric heating and hot oil heating. Vulcanizing Testing Machine
2. Relative Parameter Of Frame Type Rubber Hydraulic Press And Large Frame Type Rubbber Vulcanizing Press.
| Model | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Nominal clamp mould force (MN) | 1.6 | 2.0 | 2.5 | 3.15 |
| Nominal clamp mould force(t) | 160 | 200 | 250 | 315 |
| piston size(mm) | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 |
| Number of hydro-cylinder | 1 | 1 | 1 | 1 |
| distance between hot plate (mm) | 300 | 300 | 300 | 300 |
| Piston diameter (mm) | 360 | 400 | 450 | 500 |
| stroke of piston(mm) | 300 | 300 | 300 | 300 |
| Unit area pressure of hot plate (Mpa) | 2.5 | 2.0 | 1.8 | 1.5 |
| power(kw) | 3.0 | 5.5 | 8.0 | 8.0 |
| Overall size(L*W*H)(mm) | 900*1600*2500 | 1100*1900*360 | 1300*2100*4000 | 1600*2450*4200 |
| Weight(kg) | 4000 | 5800 | 6800 | 8000 |
| Close mould speed(mm/s) | ≥6 | ≥6 | ≥6 | ≥6 |
| Open mould speed(mm/s) | ≥4 | ≥4 | ≥4 |
≥4 |
Frame Type Rubber Hydraulic Press
| Model | 1800*1800 | 2000*2000 | 3000*3000 | 3100*4200 |
| Nominal clamp mould force (MN) | ||||
| Nominal clamp mould force(t) | ||||
| piston size (mm) | 1800*1800 | 2000*2000 | 3000*3000 | 3100*4200 |
| Number of working layer | 20 | 20 | 31.5 | 48 |
| Number of hydro-cylinder | 4 | 4 | 6 | 12 |
| distance between hot plate (mm) | 800 | 700 | 1100 | 250 |
| stroke of piston(mm) | 800 | 700 | 800 | 250 |
| Piston diameter (mm) | 600 | 600 | 600 | 600 |
| Unit area pressure of hot plate (Mpa) | 6.2 | 5.0 | 5.0 | 3.7 |
| power(kw) | 20.5 | 20.5 | 61 | 66 |
| Overall size(L*W*H)(mm) | 4400*1900*4965 | 4500*1900*4965 | 6500*5120*5500 | 4300*4100*420 |
| Weight(kg) | 8000 | 9000 | 18000 | 23000 |
| Close mould speed(mm/s) | ≥6 | ≥6 | ≥6 | ≥6 |
| Open mould speed(mm/s) | ≥4 | ≥4 | ≥4 |
≥4 |
Large Frame Type Rubber Hydraulic Press
Vulcanizing Testing Machine
3. Products Of Frame Type Rubber Hydraulic Press And Large Frame Type Rubbber Hydraulic Press.

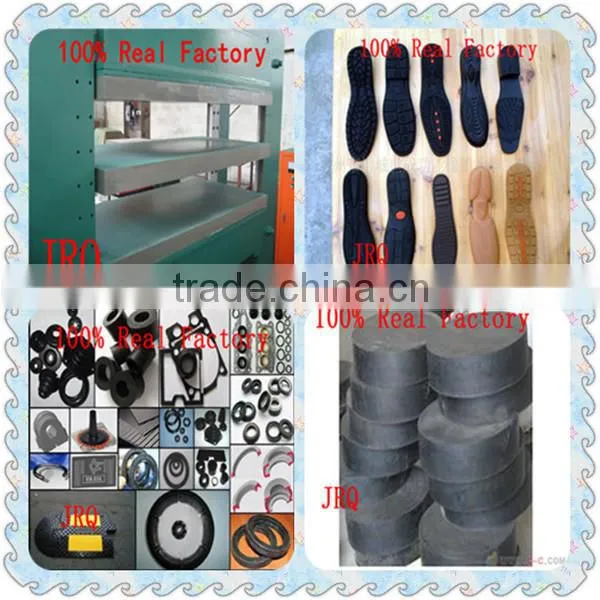

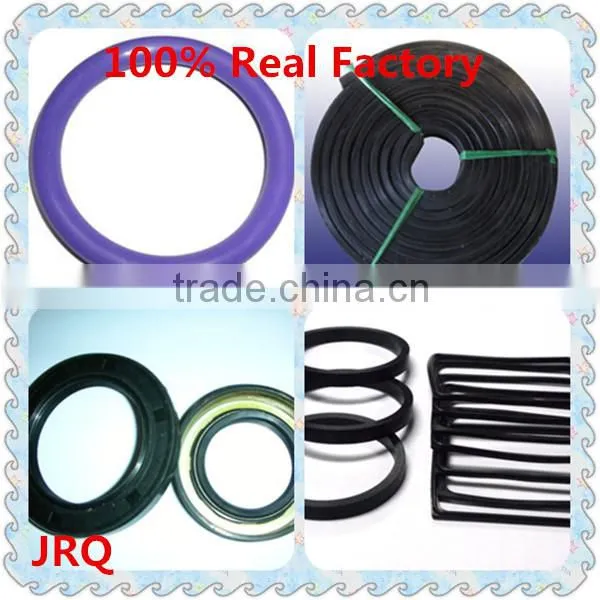

Frame Type Rubber Hydraulic Press / Large Frame Type Rubber Hydraulic Press is suitable for producing the following products: O ring, mobile phone. Keyboard and other key products such as computer keyboard and remote controller,sealing washer for pressure cooker and rice cooker or other home appliances, food,health and medical equipment accessories. Nipple,medical supplies,health supplies,crafts, toys sealing, conductive rubber, rubber parts for automotives and industrial, medical silicone products, sports equipment, all kinds of containers, multi-layer and complex silicone and rubber parts such as rubber soles etc. Frame type rubber hydraulic press machine
4. We Can Also Design And Produce According To Your Requirement.
We can product all kinds of non-standard rubber machinery and can design according to your requests. If you are interested in our products or have any questions please contact us freely. We will try our best to meet your requirement. Frame type rubber hydraulic press machine

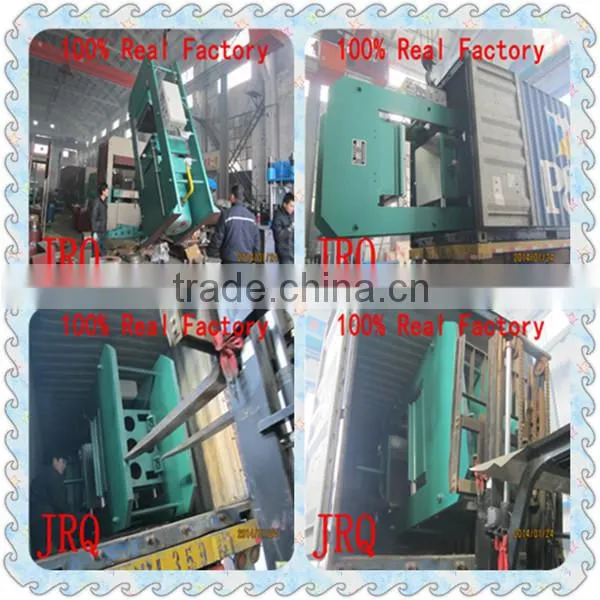

Packing: plywood box or customized way that is suitable for long distance transportation. Frame type rubber hydraulic press machine
Shipping: 30-60 days after deposit.

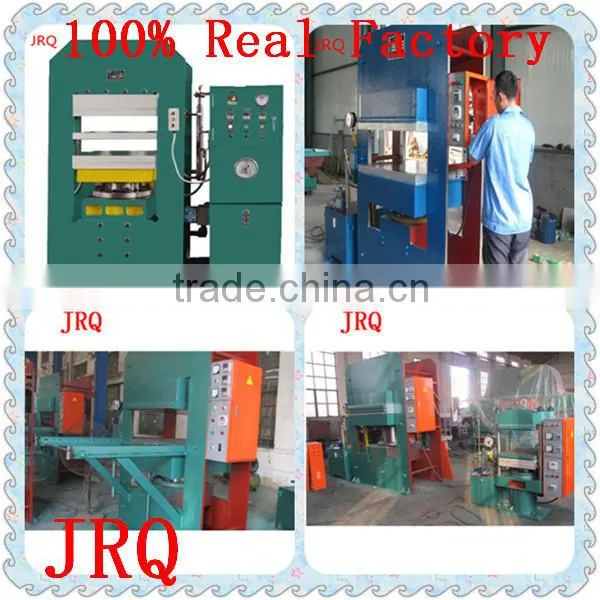

We have various of rubber-dealing machine as following, rubber plate vulcanizer / rubber mixing mill / rubber crushing mill / rubber refining mill / rubber extruder machine / rubber cutter / rubber cold line / rubber tile machine / tyre recycling line and so on.
We can also design and produce machines according to your requirement. if you have any question, please don't be hesitated to let me know, I and my colleagues would like to provide you sincere and timely help.

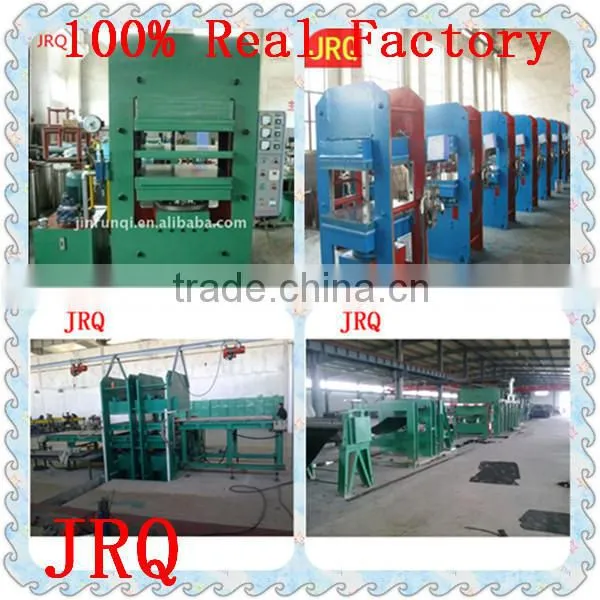

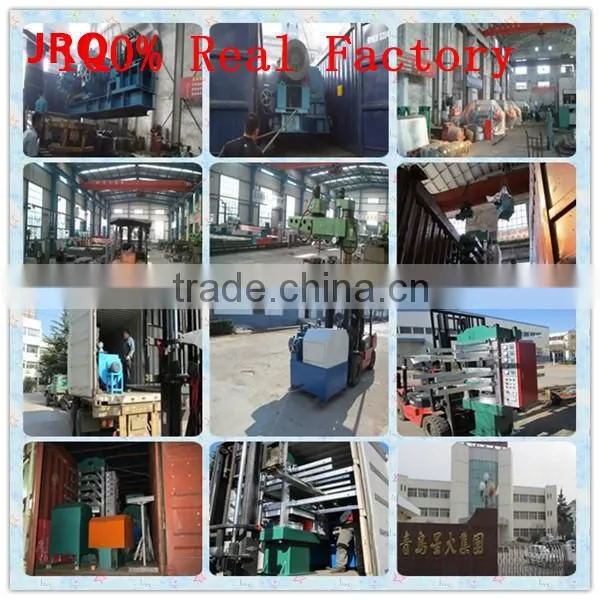

1. Is 100% real manufacturer, rather than a trading company.
2. Give one year quality guarantee and whole-life technical support.
3. About our company
Our company was founded in 1980. Our main business is designing and making nonstandard vulcanizing press. We started tire recycling business in 2007.
Our products have been exported to all around the world, such as Russia, Ukraine, Kazakhstan, Vietnam, UAE, Saudi Arabia, India, Iraq, Turkey, Indonesia, Brunei etc.
Frame Type Rubber Hydraulic Press is one of our major plate vulcanizing press, we provide best quality and compatitive price.
With the best quality and service, our products have gained great praise from domestic and foreign customers.
Welcome to visit, pls focus one eye on our company, we would like to show you our good products and good service. Frame type rubber hydraulic press machine
4. Contact Us.
www.jinrunqi.en.china.cn
We are specialized in Frame Type Rubber Vulcanizing Press and other rubber-dealing machines, if you have any question, please don't be hesitated to let me know, I and my colleagues would like to provide you sincere and timely help.
We are 100% real factory , welcome to viste.
Contact person: Wendy Wu
WhatsApp:+86 13964223094
Skype: saijiuwendy
Email: wendy(at)
