Motorcycle Tire Making Machine With Motorcyle Tire Curing Press
- 30 Set / Sets per Month
- Qingdao PORT
- T/T
Product Details
| Place of Origin: | Shandong, China | Brand Name: | Jinrunqi | ||
| Model Number: | LLY-B950x1000 | Voltage: | 380V | Power(W): | Y180L-4-22 |
| Dimension(L*W*H): | customize | Weight: | 11500 | Certification: | ISO CE TUV |
| Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Motorcycle/bicycle inner tube and tire production line
3.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
4.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.

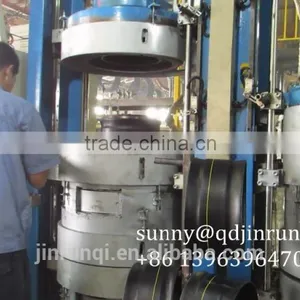

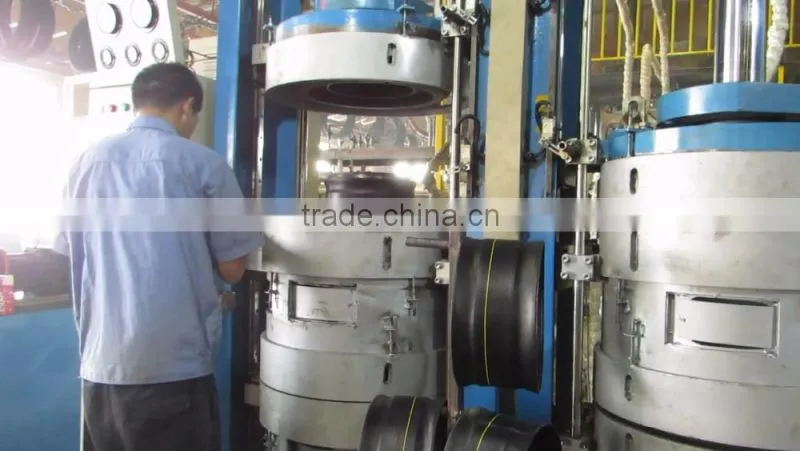

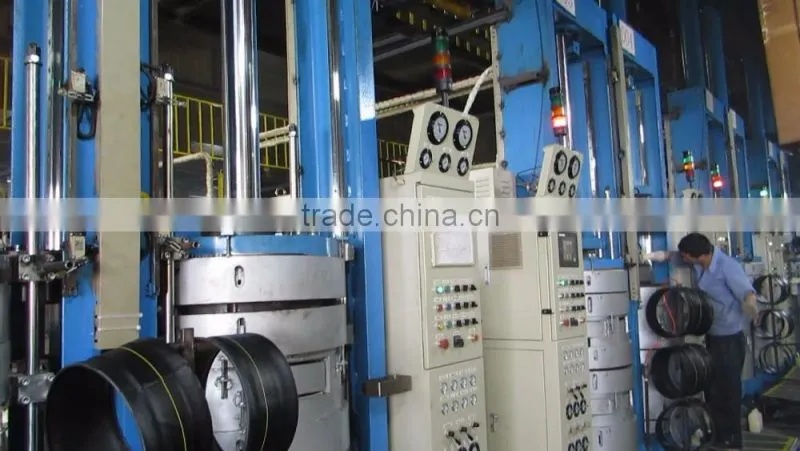

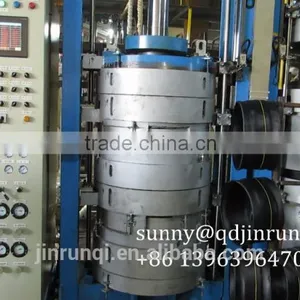

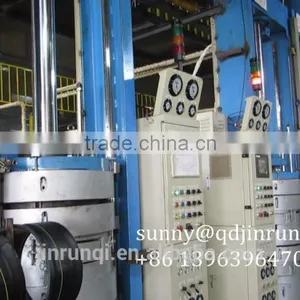

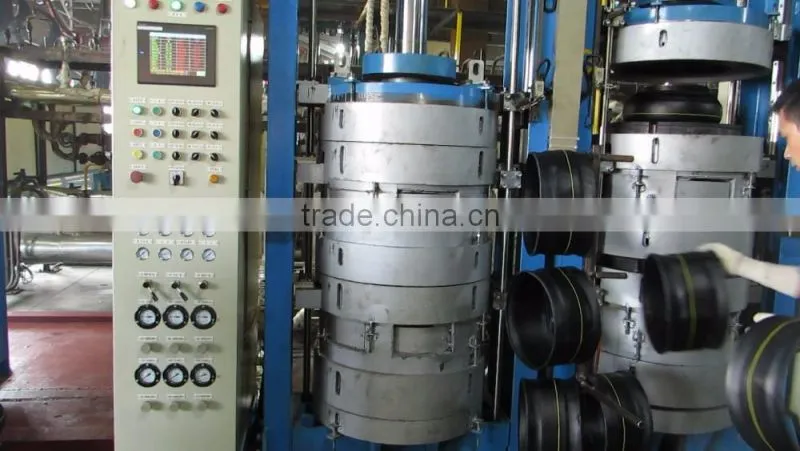

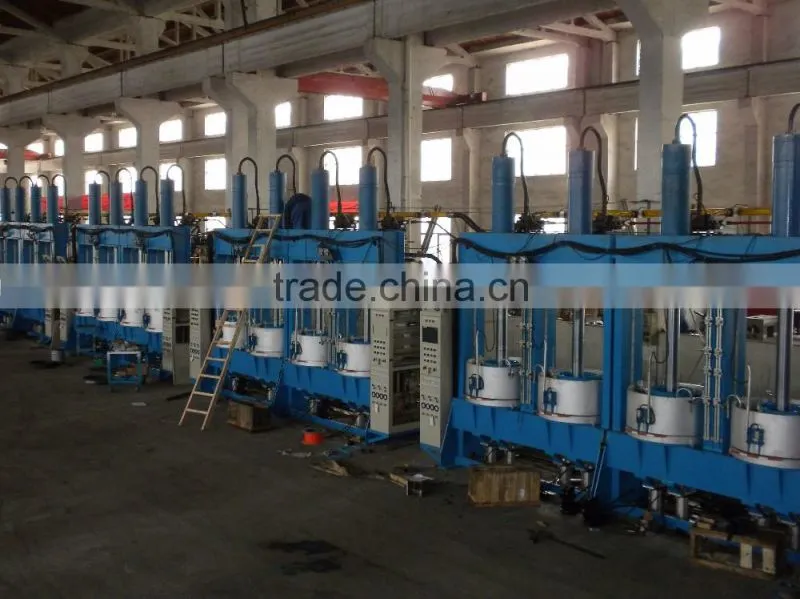

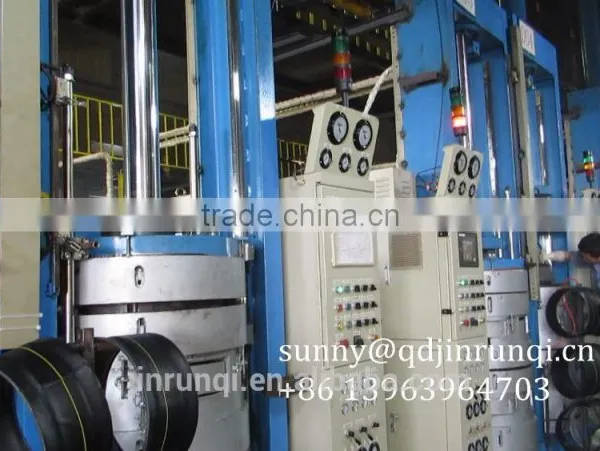

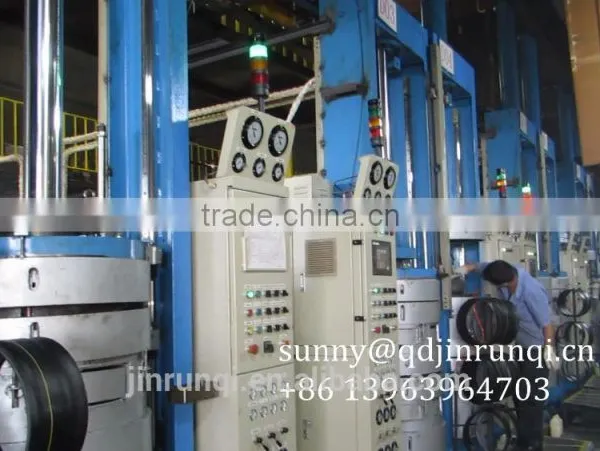

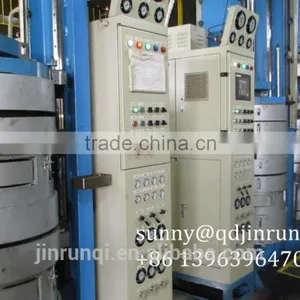

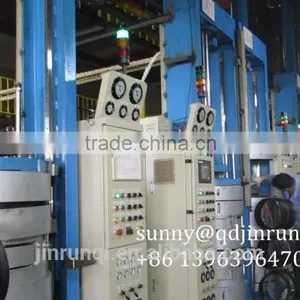

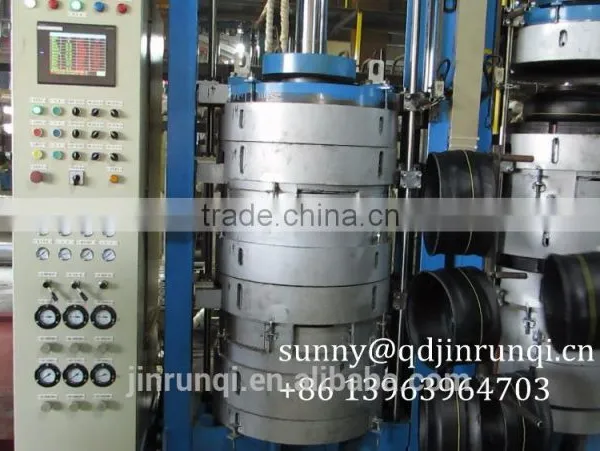

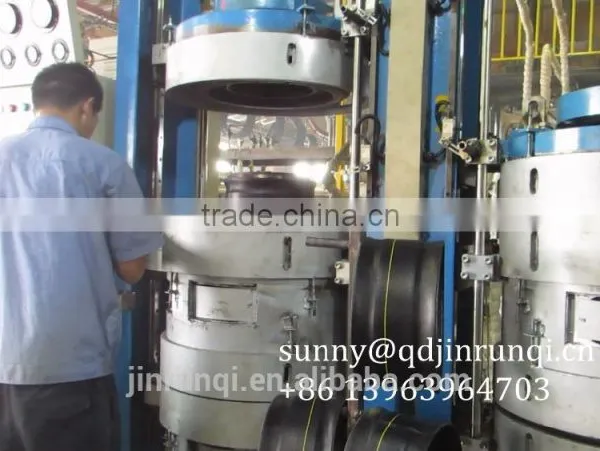

Automatic Hydraulic Tire Curing Press
1.Dual-mold automatic hydraulic tire curing press is suitable for the production of electric motorcycle tires and bias tires with nitrogen gas or steam vulcanizing process.
2.This tire curing press use of two independent dual mode framework
among units with bolt coupling into the structure of four modules, linear guide rail guiding system, combining a model on each side by side fourstations, oil cylinderinstalled on the upper beam center combining a model.
3.Dual-mold automatic hydraulic tire curing press ,the hydraulic system is driven by a hydraulic station one to five vulcanzing machine ,and can realize the process control function.

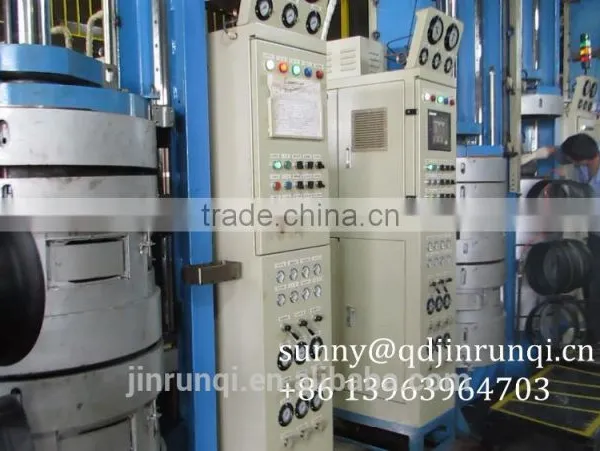

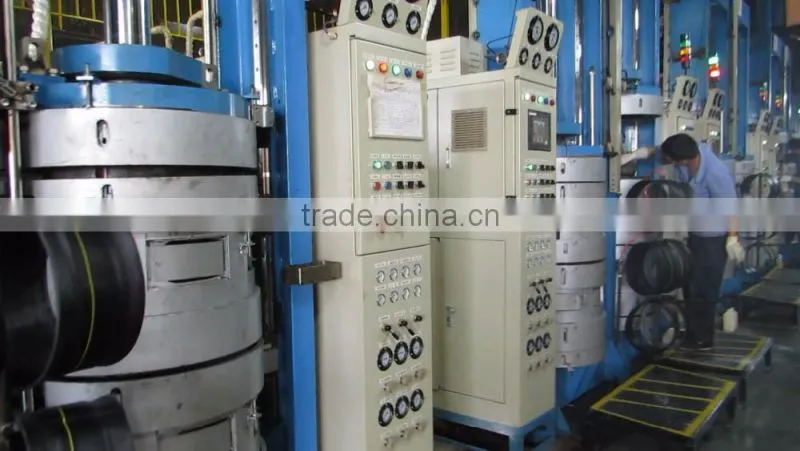

4.The control system adopts PLC programmable controller as the real time control core ,the industrial computer as the main machine operation interface ,that can realize vulcanizing process parameter setting .
Automatic Hydraulic Tire Curing Press technical parameter:
| Product type | LLY-B950x1000 | LLY-B600x700 |
| Applicable types of tyres | Motorcycle tyres | Motorcycle tyres |
| Specification | 8″-21″ | 4”-12” |
| No. of molds | 2-4 | 2-4 |
| Total pressure (each mold) (Mpa) | 100 | 60 |
| Hydraulic system pressure setting (Mpa) | ≤21 | ≤21 |
| Hydraulic working pressure setting (Mpa) | ≤19.5 | ≤19.5 |
| Dia. of hot plate (mm) | 950 | 650 |
| Inner dia. of insulation cover (mm) | Φ975 | Φ700 |
| Max. clearance between plates (mm) | 1000 | 1000 |
| Applicable mold height (mm) | 120-300 | 120-300 |
| Max. thickness of green tyre (mm) | 450 | 450 |
| Demolding force (k) | 750 | 750 |
| Max. height of the top tire (mm) | 200 | 200 |
| Open (close) mold speed (mm/s) | 60 | 60 |
| Hot plate heating steam pressure (Mpa) | Max.1.0 | Max.1.0 |
| Inner pressure steam or compressed air pressure(Mpa) | 1.5-2.3 | 1.5-2.3 |
| Shaping steam or compressed air pressure (Mpa) | 0.1-0.2 | 0.1-0.2 |
| Water (gas) cylinder use pressure (Mpa) | 1.5-2 | 1.5-2 |
| Controlling use compressed air pressure (Mpa) | 0.35 | 0.35 |
| Vacuum (Mpa) | 0.013-0.026 | 0.013-0.026 |
| Hydraulic oil | 46#anti-wear hydraulic oil | 46#anti-wear hydraulic oil |
| Pump motor (kw) | Y180L-4-22 | Y180L-4-22 |
| Total weight (kg) | 11500 | 9500 |
Automatic Hydraulic Tire Curing PressAutomatic Hydraulic Tire Curing PressAutomatic Hydraulic Tire Curing PressAutomatic Hydraulic Tire Curing Press
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
