2014 High Quality Hybrid Solar Inverter Controller
- Ningbo/Shanghai
- T/T Credit Card PayPal
You May Like
-
2014 High Quality Hybrid Controller Inverter
-
2014 High Quality 1000w Hybrid Solar Inverters
-
2014 Hot Sale on Grid And off Grid Solar Power Inverter 20KW
-
2014 Hot Sale 12v 220v Pure Sine Wave Solar Power Inverter 20KW
-
2014 Hot Sale Three Phase Pure Sine Wave Solar Power Inverter 20KW
-
2014 Hot Sale Pure Sine Wave Frequency Solar Inverter 4kw
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Saip | |
| Model Number | SP-T-13KW | Output Power | Other, Max.AC power:13000w | |
| Output Type | Other, AC | Size | 575*655*240 | |
| Weight | 44.5 | Input Voltage | 1000V | |
| Output Voltage | 3/N/PE,230/400V | Type | Other, AC | |
| Output Frequency | 50,60HZ | Output Current | 20A |
standard export packing
Product Description
Specifications
hybrid solar inverter controller1. IP65
2. CE&RoHS certificate
3. 5 years warranty
4.Noise level:<45(with fan<50)
SAIP MEANING: switch box
A global quality electric organization switch box
In order to obtain the highest quality all of switch box
Products according to international IECnormative. switch box
SAIP VISION:
To be an enterprise lasting 103 years and beyond
To be an enterprise with a network of 20000 sales personnel and 2000 design engineers
To be the choice brand manager of major worldwide electrical brands
SAIP MISSION:
To create products that deliver happiness to everyone
SAIP BUSINESS PRINCIPLE:
To conduct business in a simple straightforward manner.
SAIP WORKING PRINCIPLE:
To work and live happily
2014 High quality hybrid solar inverter controller
Specification:
1. Max.Efficiency 98.2%, Euro. Efficiency 97.8%
2. Double MPPT, MPPT accuracy up to 99.9%
3. IP65 design, work properly under severe outdoor circumstances.
4. Full slution of safety protection, DC switch integrate.
5. Flexible input and output connections, support RS485, Ethernet and USB communication.
6. Transformerless design and high power density, lighter and more convenient for installation.
Product Introduction:
Technical Data:
| Type | SP-T-13KW | SP-T-17KW | SP-T-20KW |
| Input(DC) | |||
| Max. PV-Generator Power(W) | 13500 | 17600 | 21200 |
| Max. DC Voltage(V) | 1000 | 1000 | 1000 |
| MPPT DC Voltage Range(V) | 400-800 | 440-850 | 480-850 |
| Nominal DC Voltage(V) | 640 | 640 | 640 |
| Number of MPPT Trackers | 2 | 2 | 2 |
| Max. DC Current(A/B)(A) | 22/11 | 22/22 | 22/22 |
| DC Connection per MPPT | A:3 / B:3 | A:3 / B:3 | A:3 / B:3 |
| Output(AC) | |||
| Nominal AC Voltage(V) | 3/N/PE,230/400V | 3/N/PE,230/400V | 3/N/PE,230/400V |
| Frequency(Hz) | 50, 60 | 50, 60 | 50, 60 |
| Max.AC Power(W) | 13000 | 17000 | 19200 |
| Nominal AC Power(W) | 13000 | 17000 | 19200 |
| Max. AC Current(A) | 20 | 26 | 29 |
| Nominal DC Current(A) | 18.8 | 24.6 | 28 |
| Power Factor | 0.9i…1…0.9c | 0.9i…1…0.9c | 0.9i…1…0.9c |
| Hammonic Distortion(THD) | <2% | <2% | <2% |
| Power Consumption at Night(W) | <0.6 | <0.6 | <0.6 |
| Power Consumption at Standby(W) | <12 | <12 | <12 |
| Efficiency | |||
| Max.Efficiency | 98% | 98.10% | 98.20% |
| Euro.Efficiency | 97.50% | 97.60% | 97.80% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% |
| Safety and Protection | |||
| DC Surge Protection | Type III | Type III | Type III |
| DC Insulation Monitoring | Integrated | Integrated | Integrated |
| Earth Fault Protection | Integrated | Integrated | Integrated |
| Grid Monitoring | According to VDE 0126-1-1 | According to VDE 0126-1-1 | According to VDE 0126-1-1 |
| Earth Fault Current Monitoring | RD1699, ENEL, G59, AS4777 According to VDE 0126-1-1 | RD1699, ENEL, G59, AS4777 According to VDE 0126-1-1 | RD1699, ENEL, G59, AS4777 According to VDE 0126-1-1 |
| Electricity Fuse Protection | Integrated | Integrated | Integrated |
| DC Switch | Integrated | Integrated | Integrated |
| Normative Reference | |||
| CE Compliant According to | IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11 | IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11 | IEC62109,EN61000-6-2, EN61000-6-3,EN61000-3-12,EN61000-3-11 |
| Dimensions and Weight | |||
| Dimensions (WxHxD)(mm) | 575x655x240 | 575x655x240 | 575x655x240 |
| Weight(Kg) | 44.5 | 45 | 45 |
| Mounting Information | Wall Bracket | Wall Bracket | Wall Bracket |
| IP Protection Type | IP65 (EN 60529) | IP65 (EN 60529) | IP65 (EN 60529) |
| Environmental Limits | |||
| Operating Temperature Range | -20 °C to +60°C | -20 °C to +60°C (>55°C derating) | -20 °C to +60°C (>45°C derating) |
| Relative Humidity | 0% to 98%, no condensation | 0% to 98%, no condensation | 0% to 98%, no condensation |
| Altitude(m) | 2000 | 2000 | 2000 |
| Noise Level(dBA) | <45 (with fan<50) | <45 (with fan<50) | <45 (with fan<50) |
| Communication | |||
| Monitoring Connection | RS485 | RS485 | RS485 |
| Software Upgrade | RS232(USB) | RS232(USB) | RS232(USB) |
| LCD Display | 800x480 TFT Graphic Display | 800x480 TFT Graphic Display | 800x480 TFT Graphic Display |
| Standard Warranty | 5 Years(Optional 10-25 years) | 5 Years(Optional 10-25 years) | 5 Years(Optional 10-25 years) |

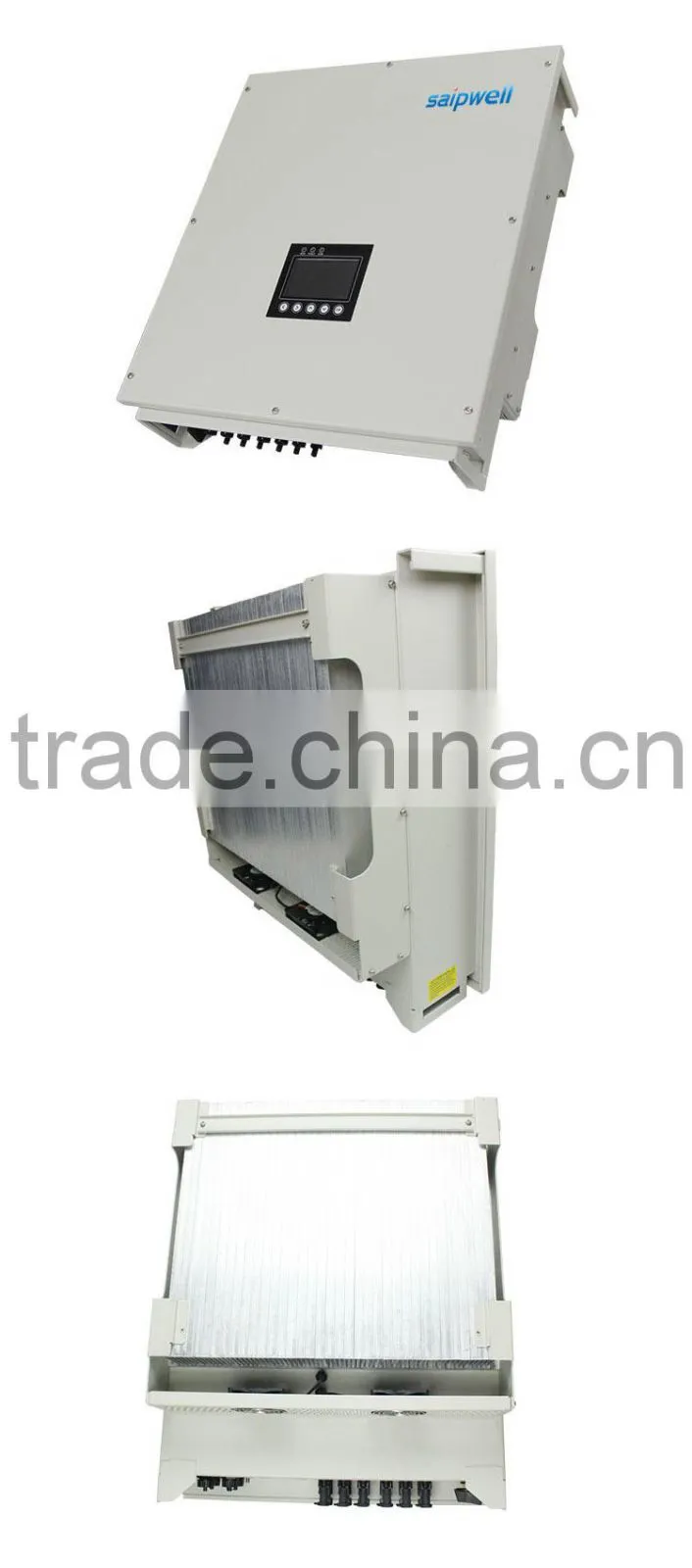

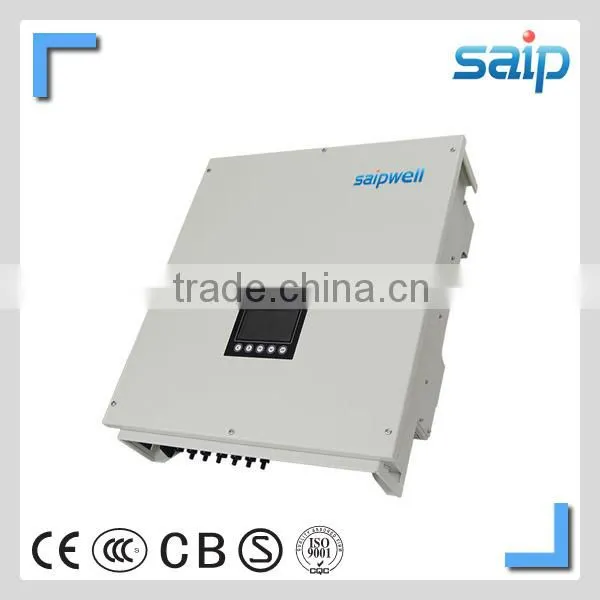

Product Show:

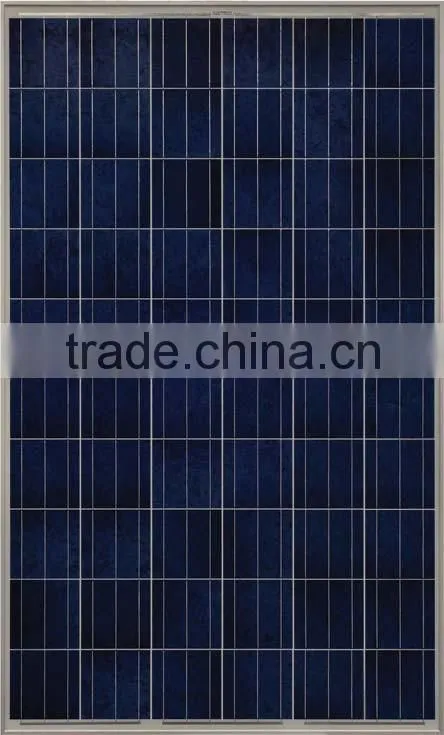

Hot sale combination:
+
Installation and service:

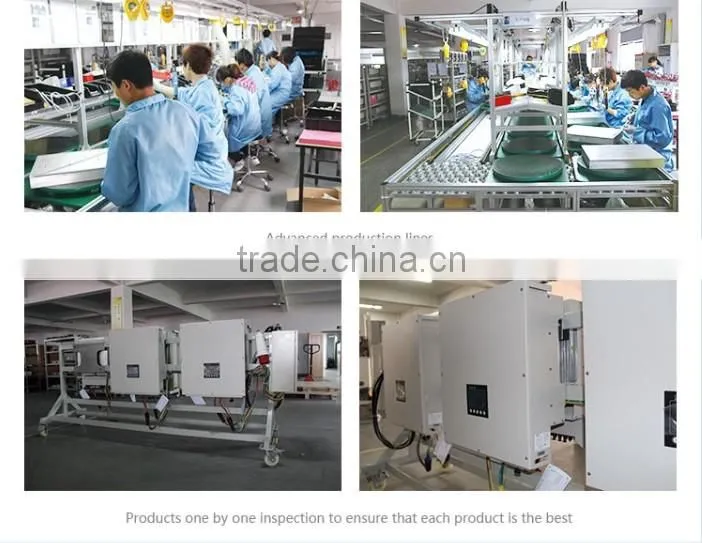

Factory show:
Packaging & Shipping:
Our service:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Samples will be offered to you for our future cooperation.
6.We can provide you good quality product and best service .
About us:
Saip Electric Group Co.,Ltd(called"Saip"for short)is an enterprise specialized in design,production and sales of electric equipments. Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called"the Electric Equipment Capital of China",next to Shanghai and Ningbo Ports.
Saip has Five specialized branches, over 300 specialized cooperative partners.Saip,an ISO9001 certificated enterprise,owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
