Help CenterHydraulic Rubber Press 25t
Related Products
-
Sealing Rubber Ring Hydraulic Press MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Automatic Rubber Vulcanizing Hot Press Machine/plate Vulcanizing Press MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Hot Plate Rubber Vulcanzing Automatic Push-out Molding MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Rubber Moulding Hydraulic Press Fully AutomaticUS$ 1,000 - 10,000MOQ: 1 Set
-
Full Automatic Push Mold Unloading Rubber Vulcanizing MachineUS$ 1,000 - 10,000MOQ: 1 Set
Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

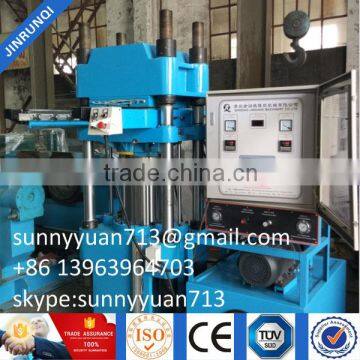

Rubber Press
1.Former top open mold is used for a variety of two-story or three story mold pattern, is a multi-funnctional model.
2.Adopting the dual power,designing the circuit respectively,the machine can operate,quitely steadily and simultaneously with low failure.
3.Correct the mold function automatic with slow speed, at the same time the processes are more accurate and safer.
4.Access the loacation accurately and have a 100% safety design to ensure the mold positioning nondestructive.
5.Speed of the lift-shut are adjustable, accurate and reliable.
6.The machine is mainly used for producing mould press products, such as rubber products, thermoset plastic and thin rubber sheet product.
7.With automatic control method, improving the production effiviency and reduce the defective rates.

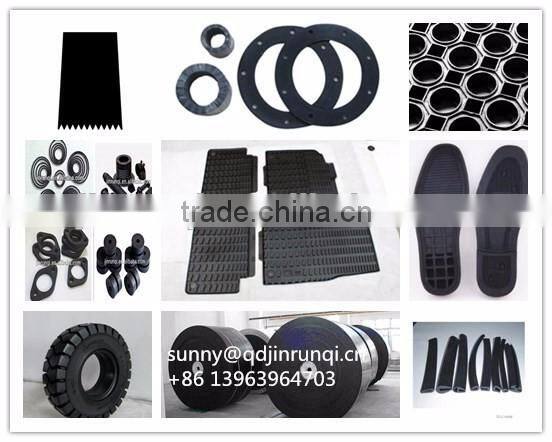

Rubber product
It is used to make conveyor belt,rubber sheets,rubber mat,rubber tile,rubber O-rings,rubber gasket,solid tyre,moulded rubber products etc
Rubber Press Technical Parameters
| Type | 100T | 150T | 200T | 250T |
| Norminal force ( MN ) | 1 | 1.5 | 2 | 2.5 |
| Heating plate size ( mm ) | 500 X 500 | 550 X 550 | 600 X 600 | 750 X 750 |
| Max. Working Pressure ( Mpa ) | 15 | 15 | 15 | 15 |
| Plate daylight ( mm ) | 125 | 125 | 125 | 200 |
| Number of working layer | 1 | 1 | 1 | 1 |
| Stroke of piston ( mm ) | 250 | 250 | 250 | 300 |
| Unit Area Pressure of Hot Plate ( Mpa/cm) | 2 | 2.2 | 2.5 | 2.8 |
| Motor Power ( KW ) | 5.5 | 5.5 | 5.5 | 7.5 |
| Overall diamension ( mm )(LxWxH) | 2200x1400x1750 | 2300x1500x1850 | 2400x1600x1900 | 2800x1800x1950 |
| Weight ( kg ) | 4000 | 5500 | 7500 | 9500 |
Rubber Press Rubber Press
Rubber Press Rubber Press
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
