Home > Products > Automatic vulcanizing machine > Four Column Rubber Vulcanizing Press / Hydraulic Press For Rubber Vulcanization
Four Column Rubber Vulcanizing Press / Hydraulic Press For Rubber Vulcanization
- 30 Set / Sets per Month
- QINGDAO PORT
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | JINRUNQI |
Model Number: | 250T | Voltage: | 380V 50Hz | Power(W): | 7.5KW |
Dimension(L*W*H): | 2800X1800X1950mm | Weight: | 9500kg | Certification: | CE ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

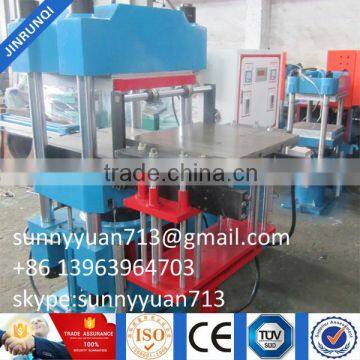

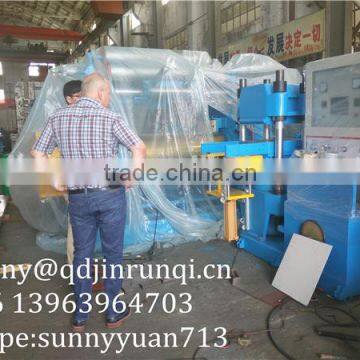

Rubber Vulcanizing Press
1.Former top open mold is used for a variety of two-story or three story mold pattern, is a multi-funnctional model.
2.Adopting the dual power,designing the circuit respectively,the machine can operate,quitely steadily and simultaneously with low failure.
3.Correct the mold function automatic with slow speed, at the same time the processes are more accurate and safer.
4.Access the loacation accurately and have a 100% safety design to ensure the mold positioning nondestructive.
5.Speed of the lift-shut are adjustable, accurate and reliable.
6.The machine is mainly used for producing mould press products, such as rubber products, thermoset plastic and thin rubber sheet product.
7.With automatic control method, improving the production effiviency and reduce the defective rates.
Rubber product
It is used to make conveyor belt,rubber sheets,rubber mat,rubber tile,rubber O-rings,rubber gasket,solid tyre,moulded rubber products etc
Rubber Vulcanizing Press Technical Parameters
Type | 100T | 150T | 200T | 250T |
Norminal force ( MN ) | 1 | 1.5 | 2 | 2.5 |
Heating plate size ( mm ) | 500 X 500 | 550 X 550 | 600 X 600 | 750 X 750 |
Max. Working Pressure ( Mpa ) | 15 | 15 | 15 | 15 |
Plate daylight ( mm ) | 125 | 125 | 125 | 200 |
Number of working layer | 1 | 1 | 1 | 1 |
Stroke of piston ( mm ) | 250 | 250 | 250 | 300 |
Unit Area Pressure of Hot Plate ( Mpa/cm) | 2 | 2.2 | 2.5 | 2.8 |
Motor Power ( KW ) | 5.5 | 5.5 | 5.5 | 7.5 |
Overall diamension ( mm )(LxWxH) | 2200x1400x1750 | 2300x1500x1850 | 2400x1600x1900 | 2800x1800x1950 |
Weight ( kg ) | 4000 | 5500 | 7500 | 9500 |
Rubber Vulcanizing Press Rubber Vulcanizing Press
Rubber Vulcanizing Press
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
