2015 High Degree Air Pressure Device / Plastic Cover (DA 084)
Air Pressure Device
Product Features:
1. High degree of protection
2. Easy to install
3. It has becomemore andmore important to provide a protected enclosure environment
for valuable and crucial electrical and electronic components.
4. In a tightly closed enclosure, pressure differentials can occur during extreme
temperature variations, such as day/night operation.
5. When this occurs, the risk of dust and humidity being absorbed into the control
panel increases dramatically.
6. The specially designed pressure compensation device DA 084 permits a controlled
change in pressure.
7. It can be installed easily in any enclosure. because of the pressure compensation plug's
high degree of protection (IP450), the protection type of the enclosure will not be affected.
Technical Data: Air Pressure Device
| Mounting | PG 29 thread with union nut |
| Torque | 5Nm (max. 10Nm) |
| Material | plastic according to UL94 V-0, pebble grey |
| Sealing | sealing gasket NBR |
| Air interface | approx. 7cm² |
| Dimensions | Ø 65.5mm x 30.5mm |
| Fitting position | vertical |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal
pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
Installation: Make cut-out Ø 37+1mm in enclosure wall and mount pressure compensation device with nut.
pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
Art. No. |
Model | Protection type | 1 packing unit | Weight (approx.) |
| 08400.0-00 | without gasket | IP45 | 2 pieces | 62g (31g/pc.) |
| 08400.0-04 | with gasket | IP55 | 2 pieces | 62g (31g/pc.) |
Technical Drawing:

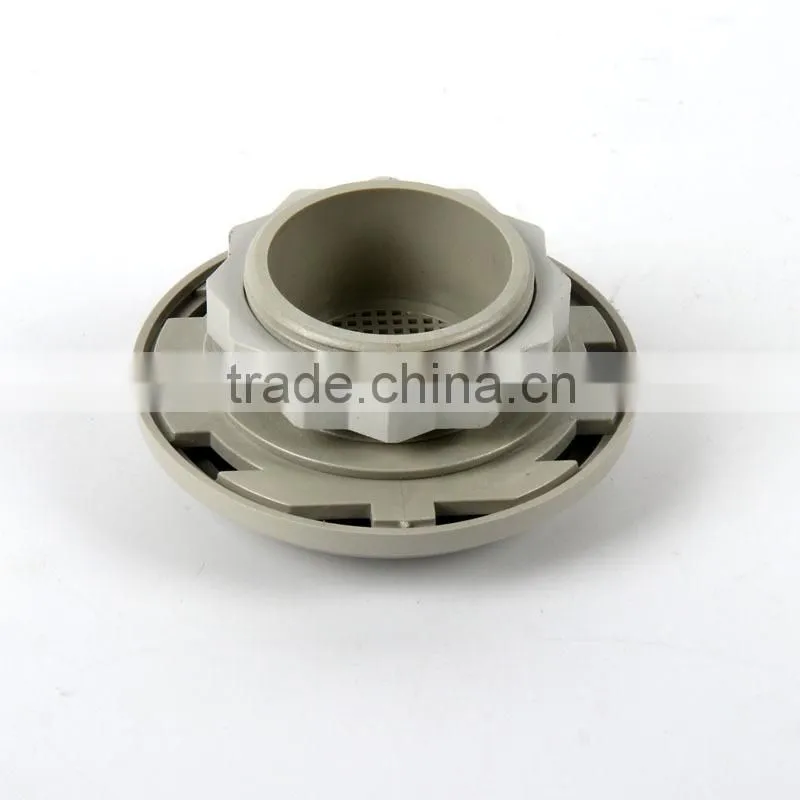

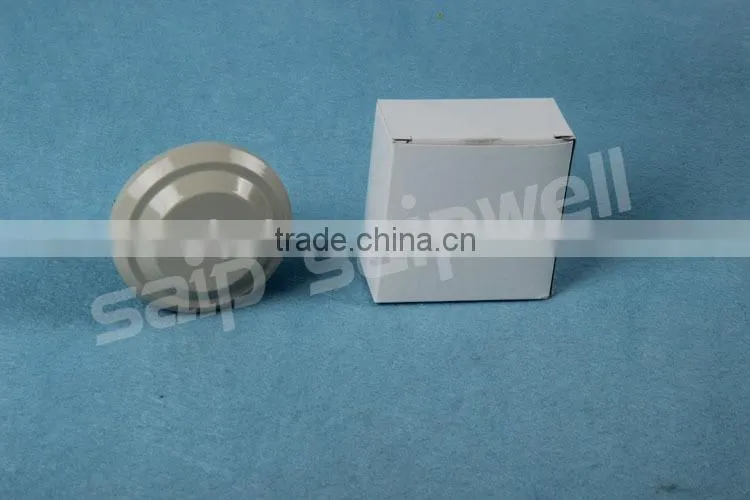

Product Pictures:
About Our Saip:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
Our Service:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Answer your question detailed
4.Solved the problem with you during using our products
5.Samples will be offered to you for our future cooperation.
we can provide you good quality product and best service .
we can design the product as your demmand and we also have other type of pressure compensation device for you to choose.
