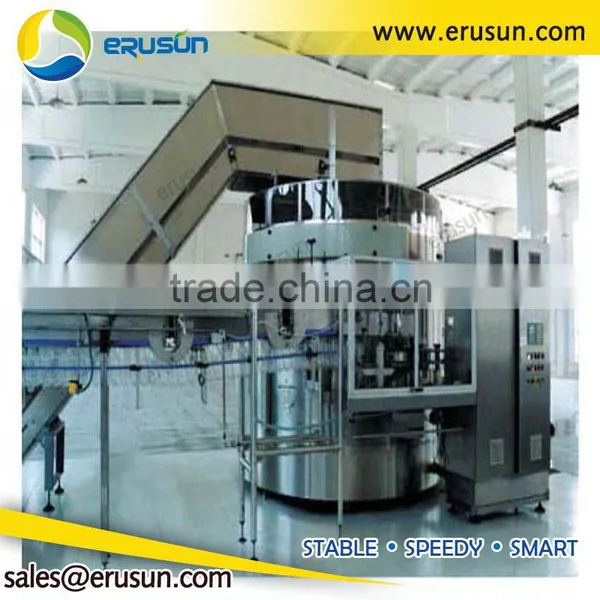

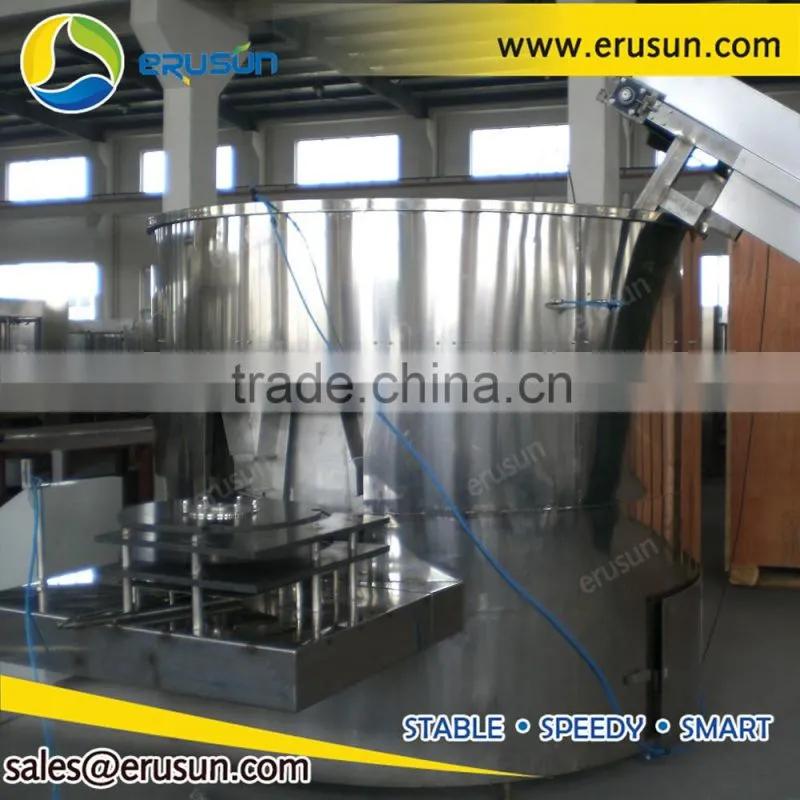

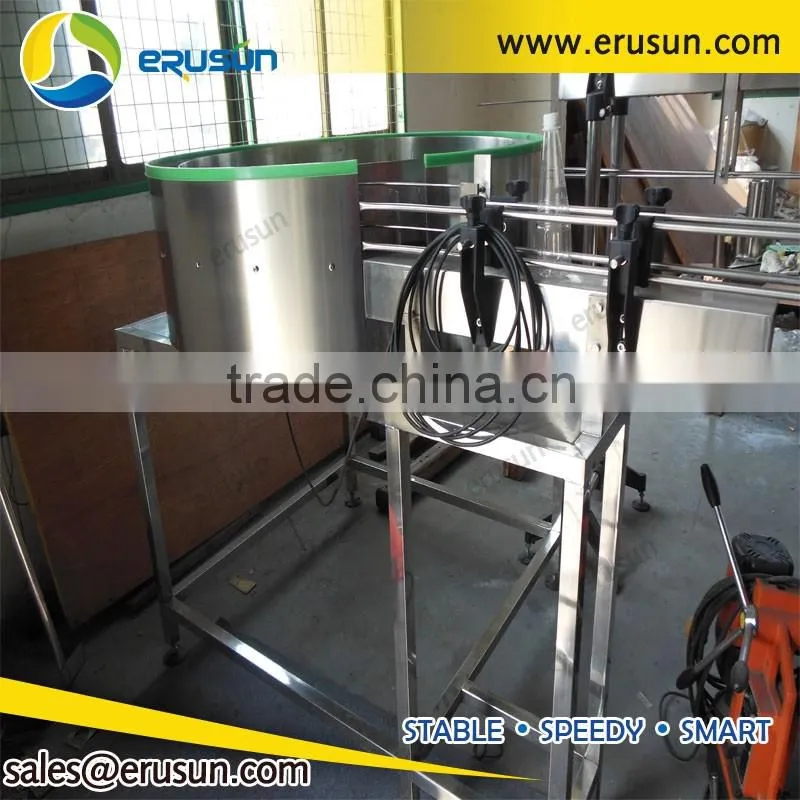

High Speed Automatic Plastic Bottle Unscrambler
US$ 19,500 - 75,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ERUSUN
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling CSD Spray Bottle WarmerUS$ 12,500 - 75,500MOQ: 1 Set -
Big SALE Reliable Edible Oil Filling MachineUS$ 7,700 - 45,500MOQ: 1 Set
-
Hot Selling Liquid Detergent Filling MachineUS$ 38,500 - 115,000MOQ: 1 Set
-
Good Quality Spray Bottle WarmerUS$ 9,700 - 19,500MOQ: 1 Set
-
SS304 Material Air Bottle Blow DryerUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
ERUSUN
Model Number
LP-18
Voltage
220V/380V
Power(W)
5kw~15kw
Weight
3000KG-8000KG
Dimension(L*W*H)
200ml-2liter
Processing Types
plastic bottle
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Bottle unscrambler
The bottle unscrambler's working principle is to arrange the empty PET bottles in turn through centrifugal force and orientation bottle drop device and send them out to connect with air conveyor system.

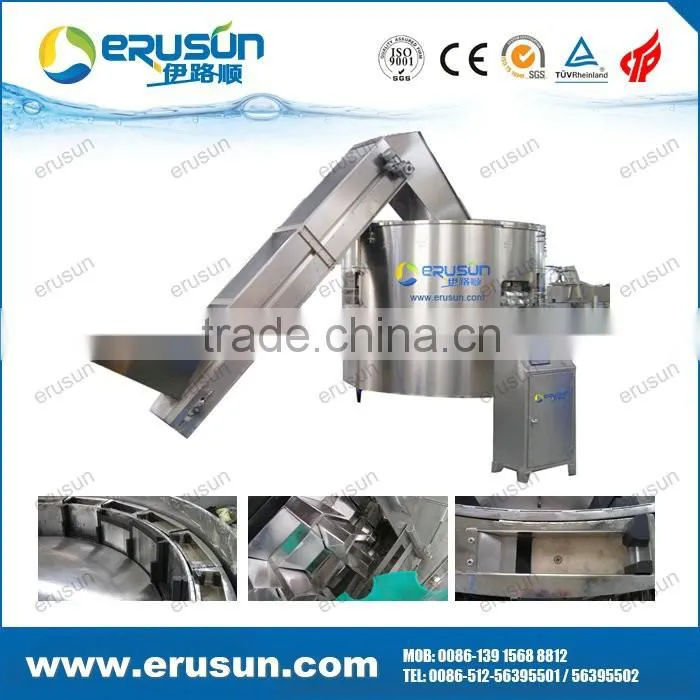

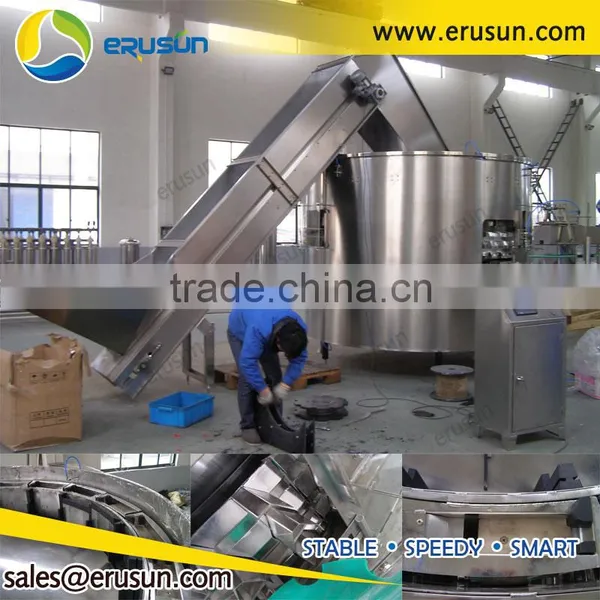

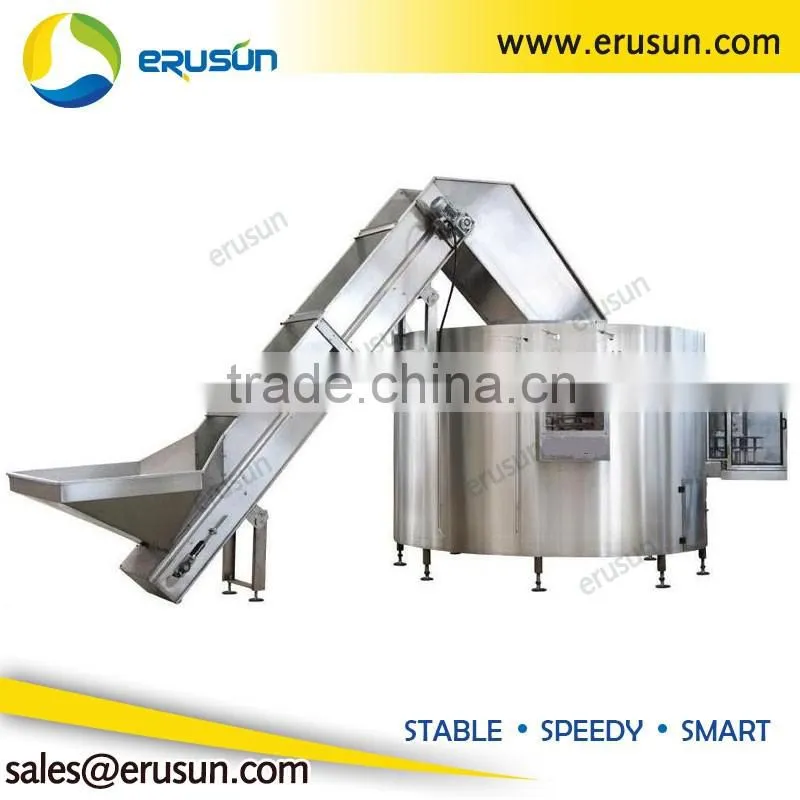

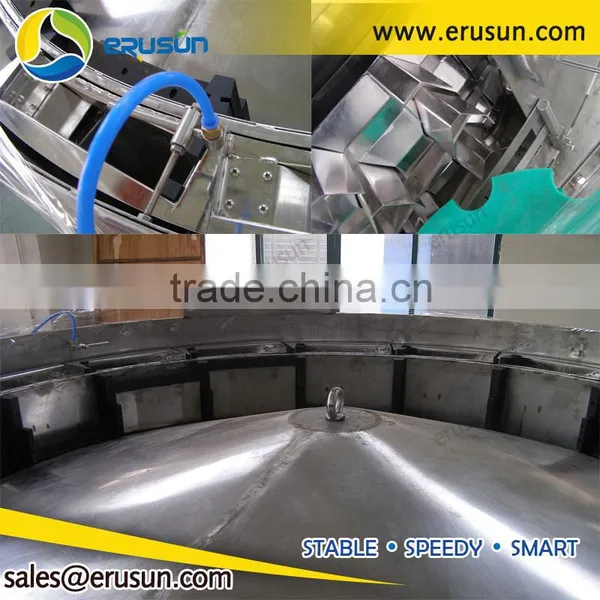

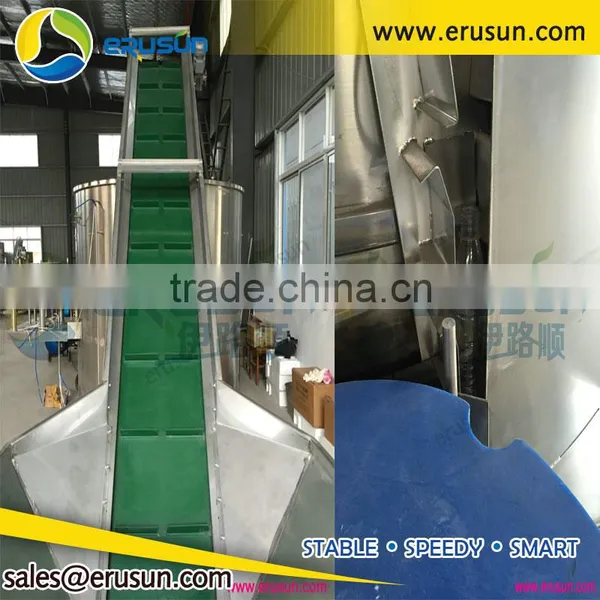

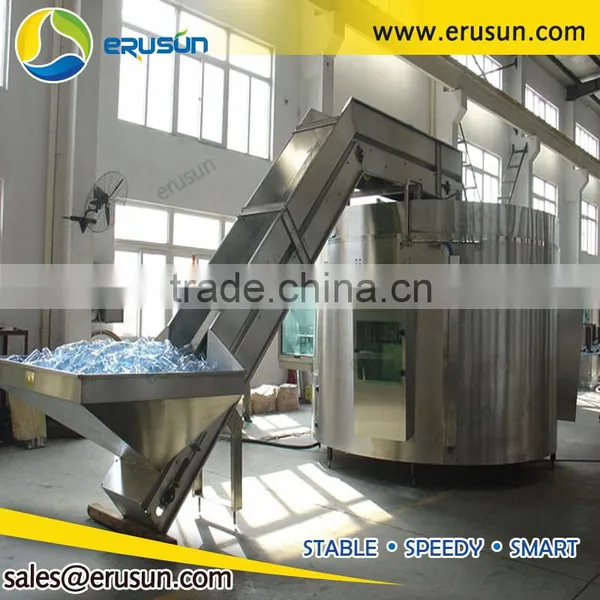

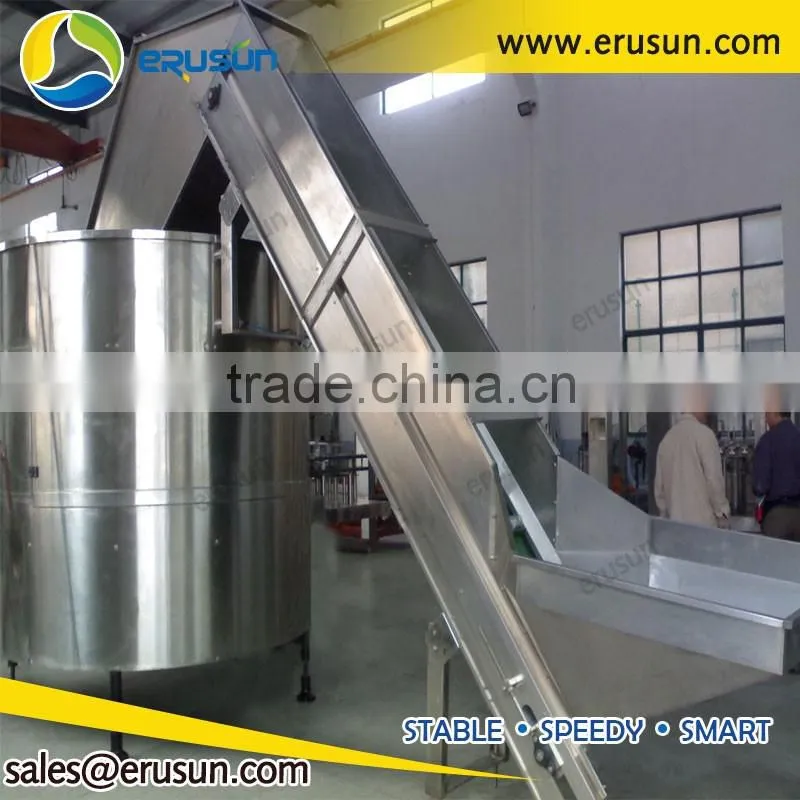

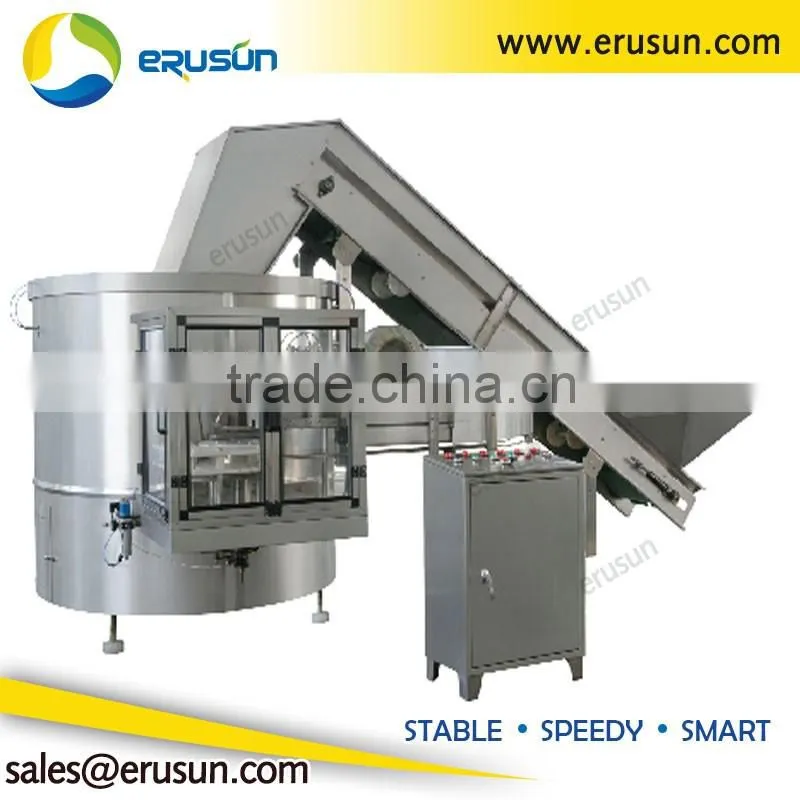

The bottle unscrambler is composed of round silo, umbrella tower, bottle drop device, and drive system. In addition, bottle elevator is equipped to send the empty PET bottles to the top of main machine. On the unscramble there is senor which controls bottles storage quantity the bottle in the main machine.
Technical features
It could handle different bottles according to customer's need.
The PLC control with frequency adjusting ensures the synchronization of the production line.
Bottle out feed is controlled by synchronous belt and starwheel to ensure stable bottle outfeed, no fallen bottles and no bottle squeezing.
Centralized lubrication system is set for lubrication at right time and right place with right dosing.
Technical Parameter
| Item | LP-16 | LP-18 | LP-21 | LP-24 |
| Working position | 16 | 18 | 21 | 24 |
| Productivity (BPH) | 6000-8000 | 8000-12000 | 12000-15000 | 15000-18000 |
| Air pressure | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa |
| Power | 1.5KW | 3KW | 3KW | 3KW |
| Bottle range | D 50-100mm; H 165-310mm |
D 50-100mm; H 165-310mm |
D 50-100mm; H 165-310mm |
D 50-100mm; H 165-310mm |
| Dimension | Φ2240(D)×2200(H) | Φ2640(D)×2300(H) | Φ3020(D)×2650(H) | Φ3400(D)×2650(H) |
| Total weight | 3500KG | 4000KG | 4500KG | 5000KG |
