China RO Purifying System

 Definition of Pure Water

Purified water means the water is so pure that there is nothing inside the water; it is produced by reverse osmosis, distillation, or de-ionization process. In some markets, it is also called demineralized water.

Suitable source:
The most commonly used raw water source for bottled purified water is municipal water. However, in practice, there are also other sources such as river water, lake water, natural spring or borehole water. In rare cases, sea water and brackish water is also used as source of purified water.

Principle of design:
The main consideration of design of purified water treatment consists of 1.the reliable and stable running of the system
2.the low-running cost
3.longer life time of expensive membrane, and durable whole system
nstant output, even after long time running
5.reliable quality of the product water

Principle of design:
The main consideration of design of purified water treatment consists of 1.the reliable and stable running of the system
2.the low-running cost
3.longer life time of expensive membrane, and durable whole system
nstant output, even after long time running
5.reliable quality of the product water

Technical Parameter

Water treatment and bottling plants is to produce high quality drinking water for drinking or beverage

factory, which include sand filter, carbon filter, softener, micron filter and RO system.

1. Raw water pump-- provide the pressure to sand/carbon filter

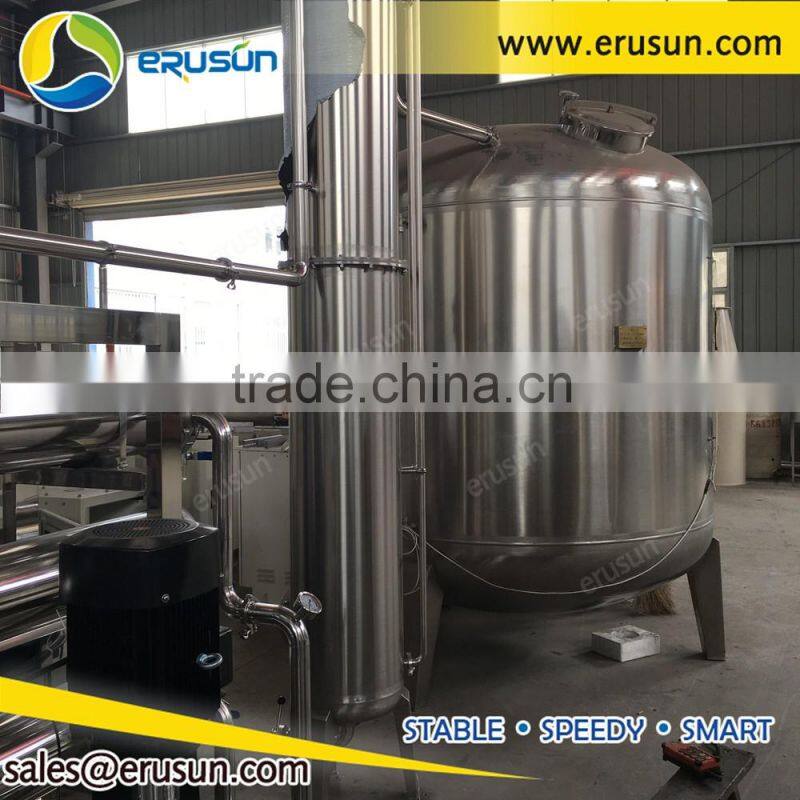

2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on

3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4. Micron filter--prevent any deposition of large Particles, some bacteria, and viruses into the RO membrane, The
accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

5. High pressure pump-- Provide the high pressure to RO membrane, at least 2.0 MPA

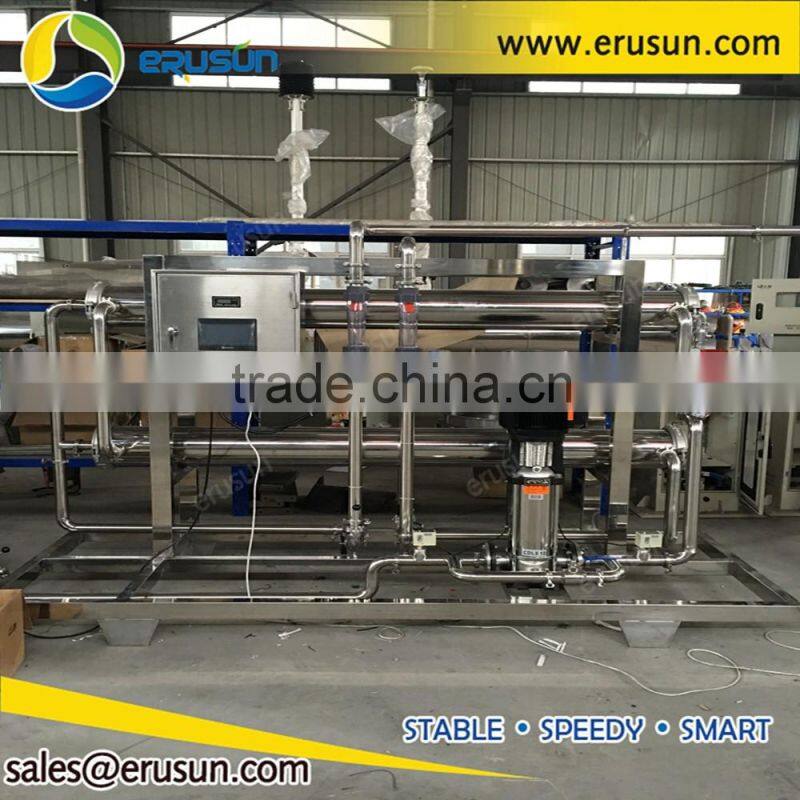

6. RO system--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of
ions, bacteria, particles and 98% of organics and silica, 85 % of B. simply operation and life span.
