Specifications
2014 hot hot sale Touch-safe Heater CSF 060 Series 50W-150W1 CE certification
2 OEM sevice
3 Energy saving
4 Compact
2014 hot hot saleTouch-safe Heater CSF 060 Series 50W-150W
Touch-safe Heater Specifications
1.Low surface temperature
2.Clip fixing
3.Ready for use
4.Maintenance free
5.Integrated thermostat
Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air.The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. This heater is also available in a version with plug-in thermostat requiring no additional wiring. Both versions are designed for permanent operation. This heater is also available in a version without thermostat (CS 060).
Touch-safe HeaterTechnical Data:
| Operating voltage | 120-240V AC/DC |
| Heating element | PTC resistor - temperature limiting |
| Surface temperature | <80°C(176°F) except upper protective grille |
| Connection | 4-pole terminal 2.5mm2 torpue 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
| Fitting position | vertical |
| Operating / Storage temperature | -20 to+70°C(-4 to +158°F)/-45 to +70°C(-49 to +158°F) |
| Protection type / Protection class | IP20 / II (double insulated) |
| Approvals | VDE+UL File No.E15057(according to UL499 in combination with UL508A) |
| Note | other voltages on request |
| Operating with voltages below 140V AC/DC reduces heating performance by approx.10%. | |
Art. No. |
Heating capacity |
Inrush current max. |
Air outlet temperature2 |
Switch-off temperature3 |
Switch-off temperature3 |
Dimensions |
Weight (approx.) |
06001.0-00 |
50W |
2.5A |
+86°C(186.8°F) |
+15°C(59°F) |
+15°C(41°F) |
110x60x90mm |
0.30kg |
06002.0-00 |
50W |
2.5A |
+86°C(186.8°F) |
+25°C(77°F) |
+25°C(59°F) |
110x60x90mm |
0.30kg |
06011.0-00 |
100W |
4.5A |
+120°C(248°F) |
+15°C(59°F) |
+15°C(41°F) |
110x60x90mm |
0.30kg |
06012.0-00 |
100W |
4.5A |
+120°C(248°F) |
+25°C(77°F) |
+25°C(59°F) |
110x60x90mm |
0.30kg |
06021.0-00 |
150W |
8A |
+145°C(293°F) |
+15°C(59°F) |
+15°C(41°F) |
150x60x90mm |
0.50kg |
06022.0-00 |
150W |
8A |
+145°C(293°F) |
+25°C(77°F) |
+25°C(59°F) |
150x60x90mm |
0.50kg |

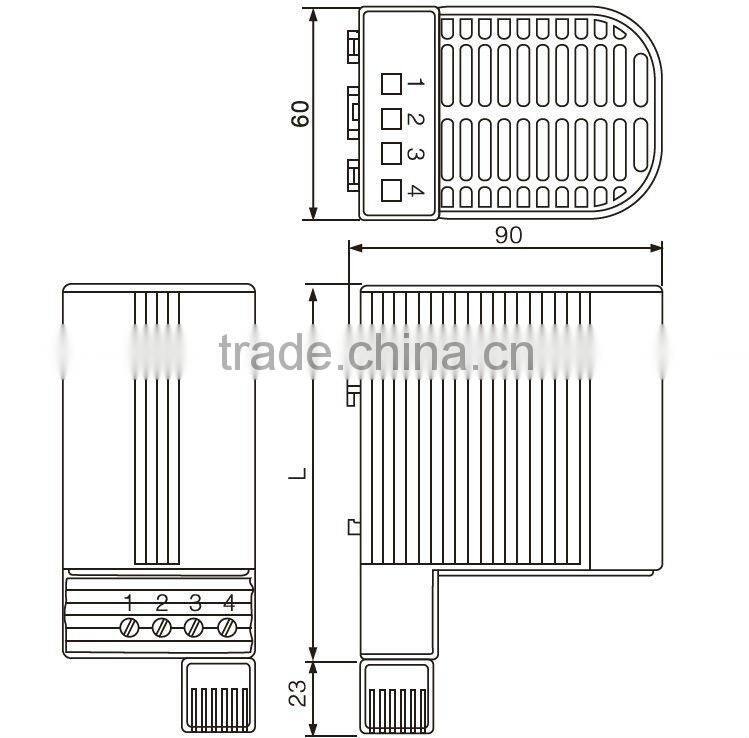

Touch-safe Heater The Drawing:
Touch-safe Heater Product Detail
