Specifications
2014 Hot Sale 12v electric car heater REC 0161 CE certification
2 OEM sevice
3 Energy saving
4 Compact

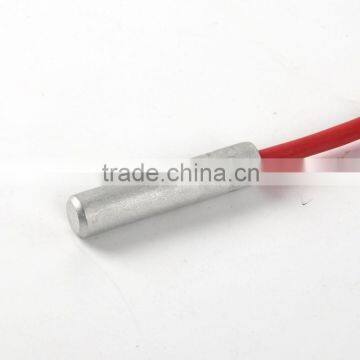

2014 Hot Sale 12v electric car heater REC 016
Specifications of electric panel heater
1.Temperature limiting
2.wide voltage range
3.Dynamic heating up
4.Energy saving
pact
Small heaters designed to prevent condensation and ensure a minimum operating temperature in small enclosures.
Technical Data
Operating voltage |
120-240V AC/DC* (min. 110V, max. 265V) |
Heating element |
PTC resistor, temperature limiting |
Heater body |
aluminium, anodised |
Mounting |
screw fixing |
Fitting position |
variable |
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
Operating/Storage humidity |
max. 90 % RH (non-condensing) |
Protection type/Protection class |
IP54 / II (double insulated) |
Approvals |
VDE + UL File No. E150057 |
Note |
other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx.
10%
Art. No. |
Heating capacity* |
Inrush current max. |
Pre-fuse T (time-delay) |
Surface temperature (approx.) |
Connection |
Weight (approx.) |
01622.0-00 |
5W |
2.0A |
1A |
165°C |
2 x AWG 22 sheathed cable (silicone) |
20g |
01623.0-00 |
9W |
2.5A |
2A |
175°C |
2 x AWG 22 sheathed cable (silicone) |
20g |

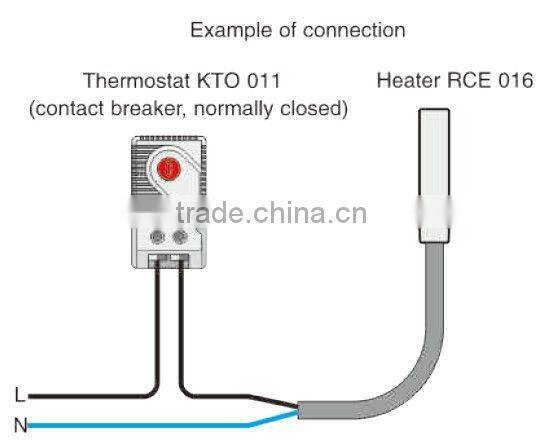

The Drawing of electric panel heater
