Specifications
2014 Hot sale infrared heater aluminum profile 8W 10W 13W RC 0161 CE certification
2 OEM sevice
3 Energy saving
4 Compact

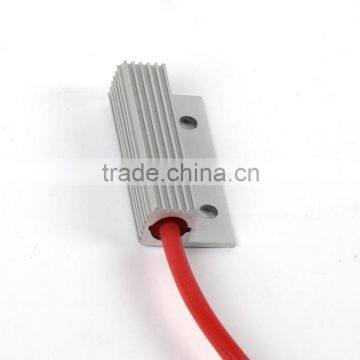

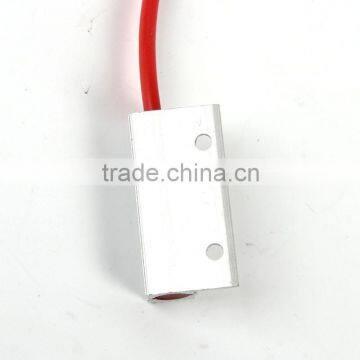

2014 Hot sale infrared heater aluminum profile 8W 10W 13W RC 016
Specifications
1.Temperature limiting
2.wide voltage range
3.Dynamic heating up
4.Energy saving
pact
Small heaters designed to prevent condensation and ensure a minimum operating temperature in small enclosures.
Technical Data
Operating voltage | 120-240V AC/DC* (min. 110V, max. 265V) |
Heating element | PTC resistor, temperature limiting |
Heater body | aluminium, anodised |
Mounting | screw fixing |
Fitting position | variable |
Operating/Storage temperature | -45 to +70 °C (-49 to +158 °F) |
Operating/Storage humidity | max. 90 % RH (non-condensing) |
Protection type/Protection class | IP54 / II (double insulated) |
Approvals | VDE + UL File No. E150057 |
Note | other voltages on request |
Art. No. | Heating capacity* | Inrush current max. | Pre-fuse T (time-delay) | Surface temperature (apprpx.) | Connection | Weight (approx.) |
01602.0-00 | 8W | 2.0A | 1A | 150°C | 2 x AWG 18 stranded wire | 20g |
01609.0-00 | 10W | 2.5A | 2A | 155°C | 2 x AWG 22 sheathed cable (silicone) | 30g |
01610.0-00 | 13W | 3.0A | 2A | 170°C | 2 x AWG 22 sheathed cable (silicone) | 40g |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%
Drawing of electric panel heater
About us
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.
Head office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.
Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern enterprise integrating the production,sale with research.
The other more details you also could viste our website () or contact us directly.
