Specifications
2012 Newest PTC HGM050 1500w Fan Heater1. Long Service Life
2. CE, RoSH
3. 2 Years Warranty
4. OEM
2012 Newest PTC HGM050 1500w Fan Heater
1. Long Service Life
2. CE, RoSH
3. 2 Years Warranty
4. OEM
1.Compact design
2.Clip fixing
3.Long service life
4.Maintenance free
5.Temperature safety cut-out

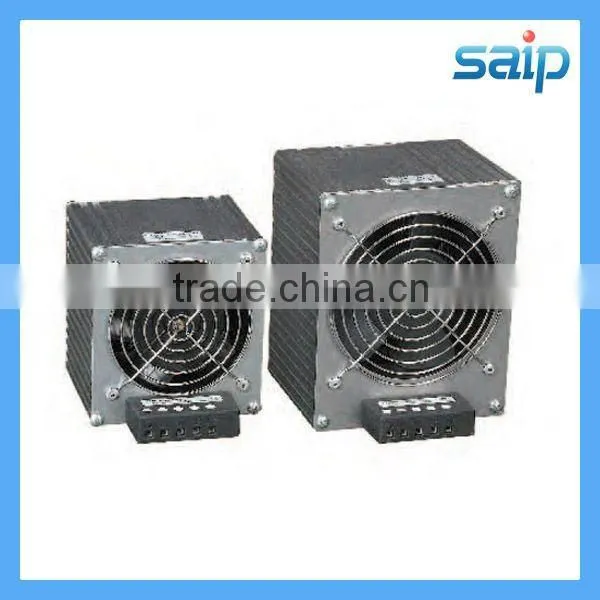

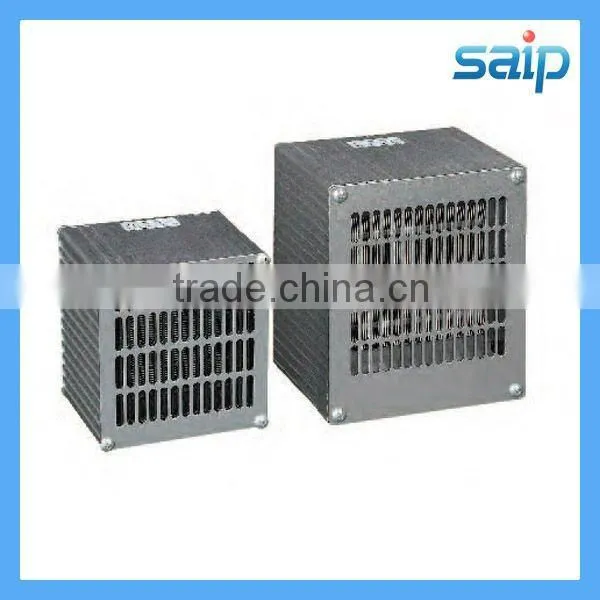

Compact fan heater prevents formation of condensation. The integrated high
performance axial fan provides forced air circulation and so guarantees an even
temperature in enclosures. With internal terminal connector.
Technical Data
Heating element PTC
Temperature safety cut-out to protect against overheating in case of fan failure
Heater body anodised extruded aluminium profile
Surface temperature 75°C max. 75°C
Axial fan, ball bearing Airflow, free flow
3 3 AC: 45m /h (50Hz) or 54m /h (60Hz) 3 DC: 54m /h
service life 50,000h at 25°C (77°F)
Connection internal connection terminal 1.5mm with strain relief,clamping torque 0.8Nm max.
Connection casing plastic according to UL94 V-0,black
Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical
Operating/Storage temperature -45 to +70°C(-49 to +158°F)
Protection type/Protection class IP20 / I (earthed)
