2300KV Motor 12A esc propeller combo for DJI phantom mulirotor quadcopter

2300KV Motor 12A esc propeller combo for DJI phantom mulirotor quadcopter

1. Special program for multi-rotor, excellent stall protection, even bombing, do not worry to burn ESC, good choice for primary players
2, oneshot function, super-fast throttle response mode, available for professional-level players
3, High-quality MOSFET driver, high withstanding current capability for ESC
4, compared to the normal ESC, more Minimal, lighter
5. Throttle range can be setted, good compatibility
6, The only mini ESC is with built-in BEC in field

Features:
Stall protection:
Automatically detect the state of motor short-circuit, activate 0.3 seconds stall protection, stop the power from ESC transfer to motor, protect ESC and motor

Startup protection:
When speed up the throttle, the motor failed to start within 3 seconds, ESC automatically turn off the power in order to avoid more serious losses

Overload protection:
Load increases suddenly, ESC automatically cut off power to avoid more serious losses

Throttle signal loss protection:
If throttle signal is lost,turn off power output, to avoid more serious losses

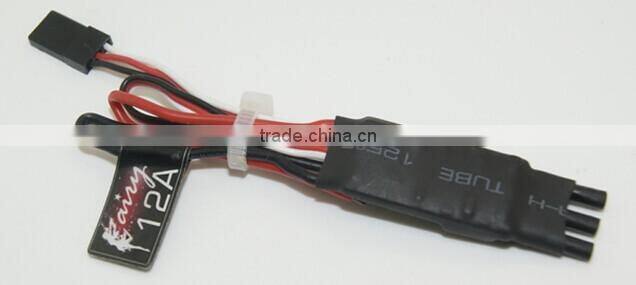

ESC parameter
ESC Model: 12A ESC
Continuous output current: 12A
Burst current: 18A (no more than 10S)
Voltage: 2-4S (Lipo)
BEC: 5V / 1A
Throttle signal frequencies: 500HZ
Size: 28 * 15 * 6mm
Weight: 10g (with wire)
Timing: 4 (15 ° -26.25°)

Motor parameters
KV: 2300
Architecture: 12N14P
Stator diameter: 22mm
Stator length: 4mm
Shaft diameter: 3mm
Motor size (diameter x length) Φ27.5 x 28.2mm
Weight: 24.4g
Resistance: 190mΩ
Support battery: 3-4S
Motor cable length (including banana): 10cm
No-load current: 0.35A @ 10v
Maximum Continuous Current (A): 180S 16A
Maximum continuous power (W): 180S 270
Maximum efficiency of the power: (3-6A)> 81%

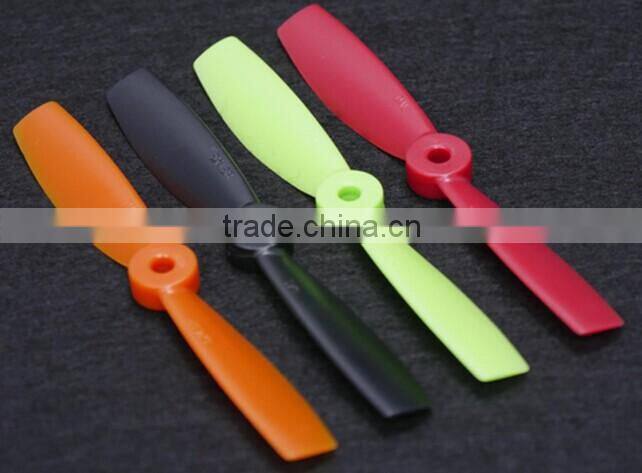

Propeller
Prop model: 5045 flat prop
Mounting hole diameter: 5mm
Material: reinforced nylon composite material
