Fashion Digital High Voltage Servos/35kg High Torque Servo/Brushless Motor Servo HBL835

Fashion Digital High Voltage Servos/35kg High Torque Servo/Brushless Motor Servo HBL835 photo-1
Fashion Digital High Voltage Servos/35kg High Torque Servo/Brushless Motor Servo HBL835 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Gas
Material:
Other, Aluminium case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou/HK
Delivery Detail:
Delivery time depends on order quantity.
Type Airplane
Power Gas
Material Other, Aluminium case
Scale Other, as you request
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name K-power
Model Number HBL835 HV bruhshless full aluminum case servo
Product Description

Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

Product FEATURE:
--Digital, Standard metal gears
--High quality brushless servo for car and planes
--Programmable high performance digital servo
--Full CNC aluminium hulls and structure
--Dual ball bearing
--Waterproof

Specification

Product name

HV Brushless Full Aluminum Case

Servo

Motor

Brusheless

Case

Full Aluminum Case

Gear

Titanium

Bearing type

2BB

Model Number

HBL835

MOQ

100PCS

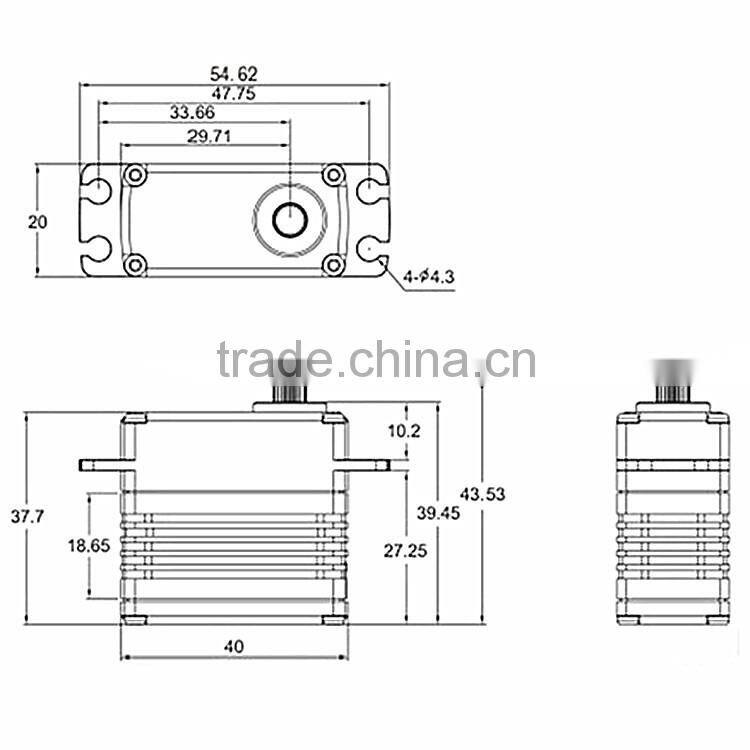

Dimension

 40*20*38mm

Voltage Range

6.0-7.4V

Pulse Width:

900---2100 us

Operating Speed

0.12sec/60°/6.0V; 0.10sec/60°/7.4V

Torque

3.8kg-cm/6.0V; 15.6kg-cm/7.4V

Deadband

2us

Shaft

25Tooth Spline

Weight

66g

Color

Black

Certificate

CE&FCC

Application

Airplane/Helicopter/Boat/Robot/ElectricaL Vehicles/Toys

Packing

one piece per plastic box / foam protection packing,  carton box outside.

Lead time

10---25working days

Delivery time

6---10 days

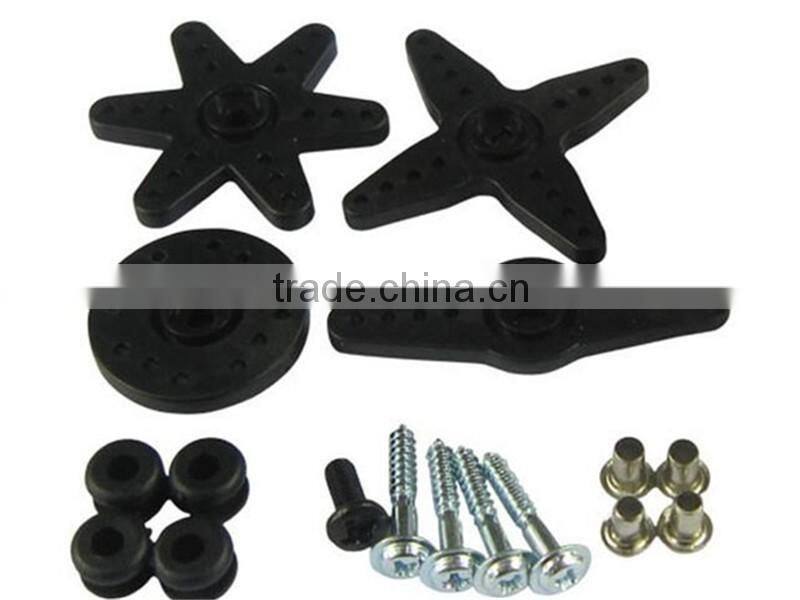

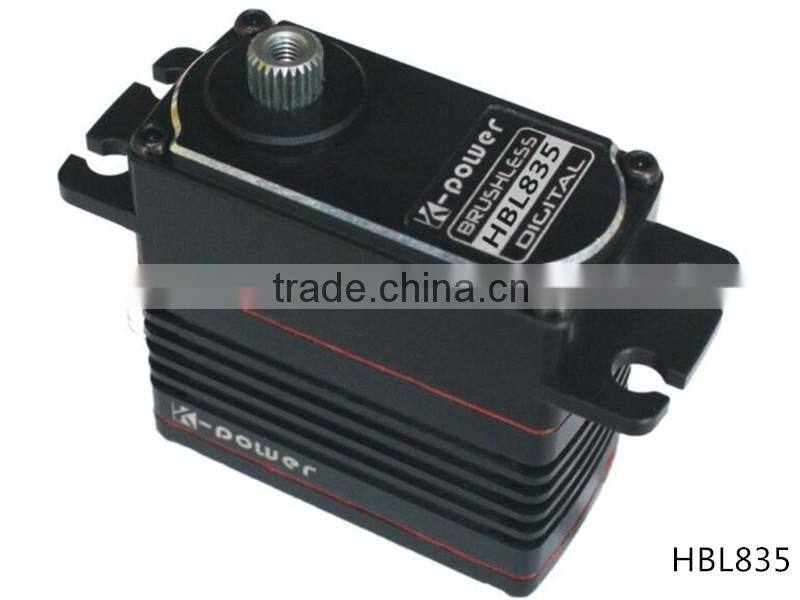

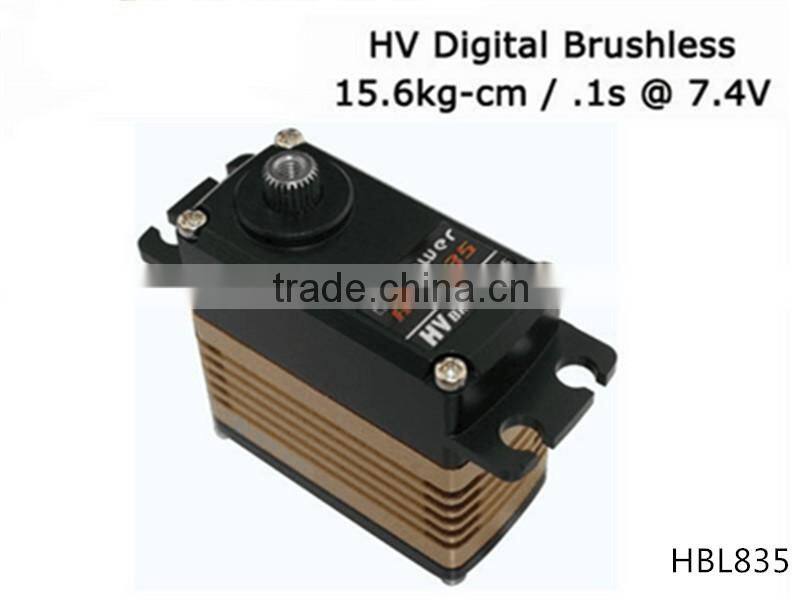

Detailed Images

HV bruhshless full aluminum case servo

Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

Packaging & Shipping

 Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

Our Services

1, We offer 24 hours customer services on weekdays as well as hours on Saturday
(except for major holidays).
2,We believe in the timeliness of customer service,and would like to do everything
to satisfy our customers.
3,If you have any problems,comment or suggestion, please contact our customer service representative.



Company Information

    Dongguan K-power RC Servo Model Technology Co.,ltd is one of a professional company and manufacturer,which specializes in line of various types of servos, such as Digital and Analog ,HV, Robot Servos with brushless,coreless and iron core motors.Our products enjooyed a large market all over the world,especially in Southeast Asia,North America,and Europe,etc.They are not only in good quality with high speed,incredible efficiency,and low power consumption, but also have a competitive price.With us,with trustworthy supplier !

Add: No.20, Hekeng 2nd Industry District, Qiaotou Town, Dongguan City, Guangdong, China
http://k-power.en.china.cn/

Tel: 86-769-83993238
Fax: 86-769-82209118

Welcome to your inquiry!!!

Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

 Fashion Digital high voltage servos/35kg high torque servo/Brushless motor servo HBL835

FAQ

1.Are you a manufacturer or trading company?

---Yes,we are a professional servo manufacturer.
2.How is the goods quality?
---We have strict quality control before shipping the goods.

3.How we work?

---Tell us your idea or OEM based on our existing product

---Send your design or We Design Artwork for reference
---Make sample based on your requirement for your approval
---Start mass production after receive the  payment
---Shipping after you inspection and help you do custom clearance
