K-power DMC809 micro RC Servo motor for 6v
| Coreless motor provides high speed, incredible efficiency, and low power consumption. |
| The Aluminum case design looks good and allows for cooler and smoother operating temps. |
| Extremely strong Titanium gears ensure long-life and durability. |
| Model Type: | Digital Servo DMC 809 |
| Motor Type: | Coreless |
| Case material: | Aluminum Whole Case |
| Gear material: | Titanium |
| Bearing Type: | 2BB |
| Weight: | 27.5g / 1.0oz |

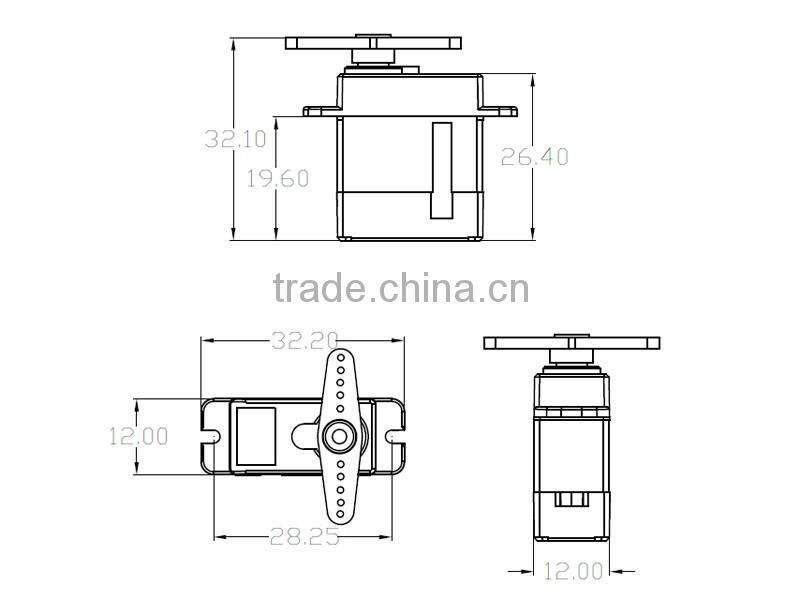

| Dimension: | 23*12*27mm/ 0.9*0.5*1.1in |
| Operation Voltage: | 4.8-6V |
| Torque: | 3.0kg-cm/4.8V; 3.8kg-cm/6.0V |
| 41oz-in/4.8V; 52oz-in/6.0V | |
| Speed: | 0.08sec/60°/4.8V; 0.07sec/60°/6.0V |
| Pulse Width: | 1000-1500μs |
| Dead band width: | 2μs |
| Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature: | -20 to 60 centigrade |
| Splining: | 20T |
| Wire Length: | Based on your requirement |
| Waterproof: | Yes |
| Certification: | CE & FCC |
| Application: | RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear |
| Ideal for: | 450 class Heli CCPM / Swashplate |
| Service: | Lifetime Warranty. Customized and OEM are available. |
| If you have any other requirement, pls feel free to tell us. Thanks. |

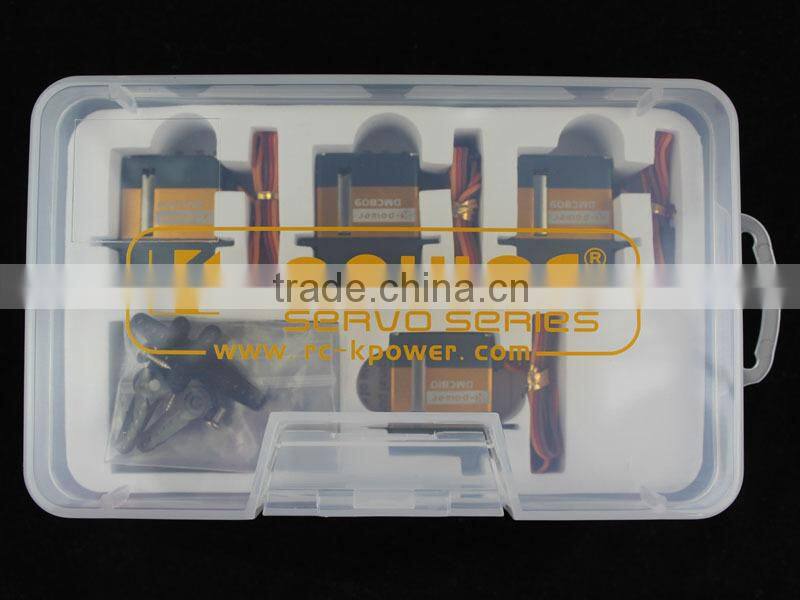

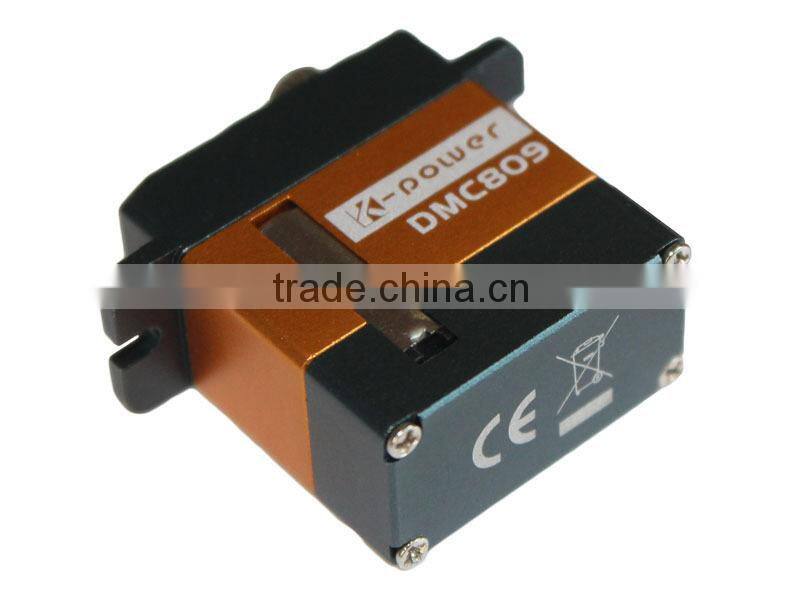

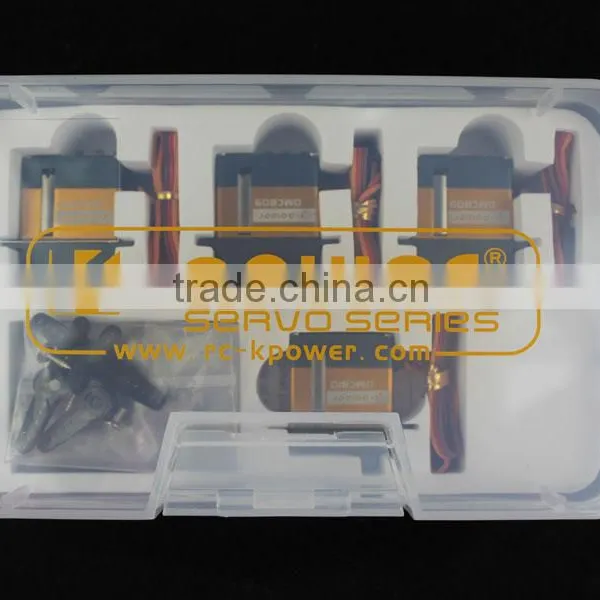

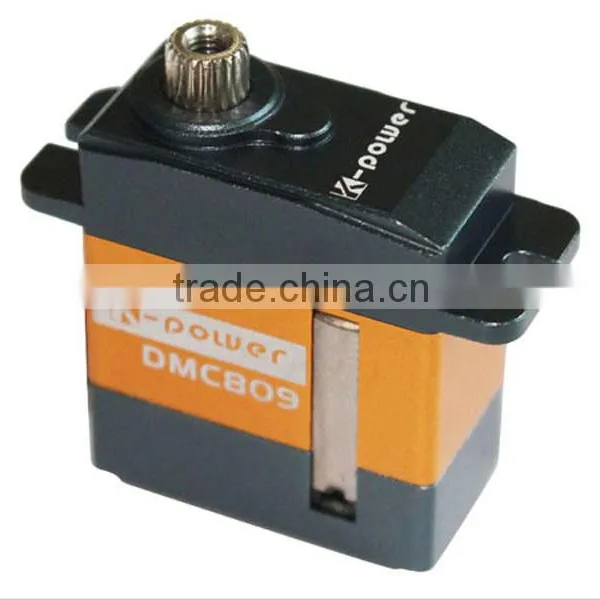

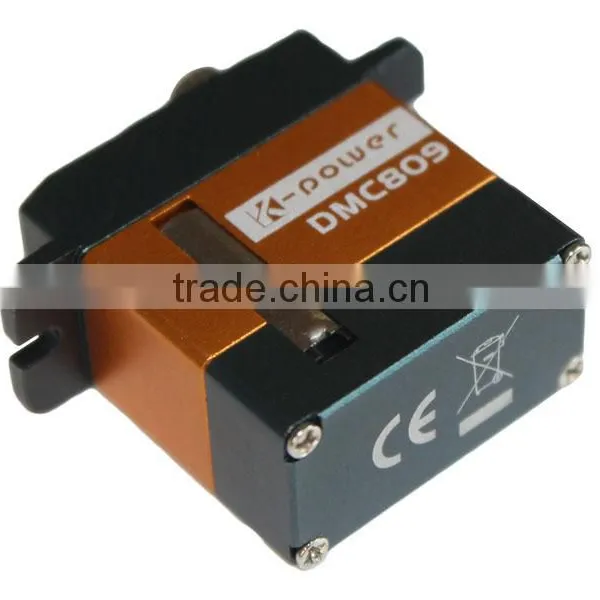

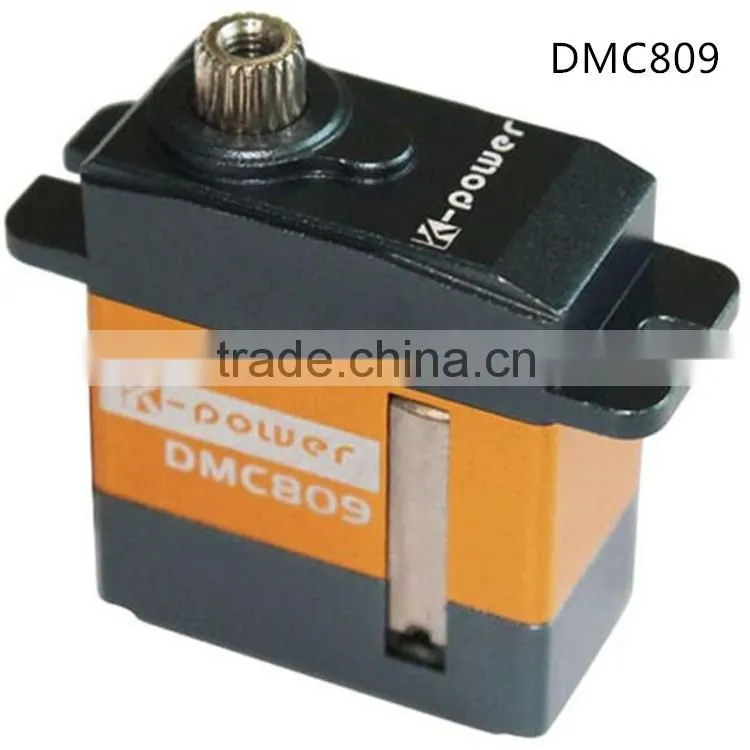

Our Picture:
Our Certificate:
Our service:
Specialized in ODM and OEM and Custom Made
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use K-power products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All K-power products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase
For More informations, please visit our facebook page:
/KpowerServo2016
| K-power sales team |
| Tel: 86-755-89885454 |
| Fax: 86-769-82209118 |
| Add: No.20, Hekeng 2nd Industry District, Qiaotou Town, Dongguan City, Guangdong, China |
| http://k-power.en.china.cn/ |
