Home > Products > Digital Servo > K-power servo DMC027 26g/3.6kg/0.05s
K-power servo DMC027 26g/3.6kg/0.05s
Negotiable
/ Piece
100 Pieces(Min.Order)
- 500000 Piece / Pieces per Month
- Shenzhen Guangzhou Hongkong
- Credit Card
You May Like
-
Wholesale price cnc ac drive HF-KP23JK-S11 mitsubishi motor original servo
-
ASME-MTA 260KG High Torque Servo Non-Contact Magnetic Encoding 32768 Resolution 32-Bit MCU
-
ASME-MXB DC 12V~24V 380kg.cm Steel Gear 3600 Degree High Torque Servo for Large Robot
-
ASMG-MT 500KG High Torque Servo Magnetic Encoder 360-Degree High Torque Steering Servo For Robots
-
DH-03X 400KG/CM Thicker Digital Servo Thick Metal Gear High Torque Servo For RC Industrial Robots
-
DHEB-GF775 500KG/CM Large Angle Large Servo Metal High Torque Digital Servo With Servo Horn
Product Details
| Use: | Other, Vehicles & Remote Control Toys | Place of Origin: | Guangdong, China | Brand Name: | K-power |
| Model Number: | DMC027 |
Product Description
Specifications

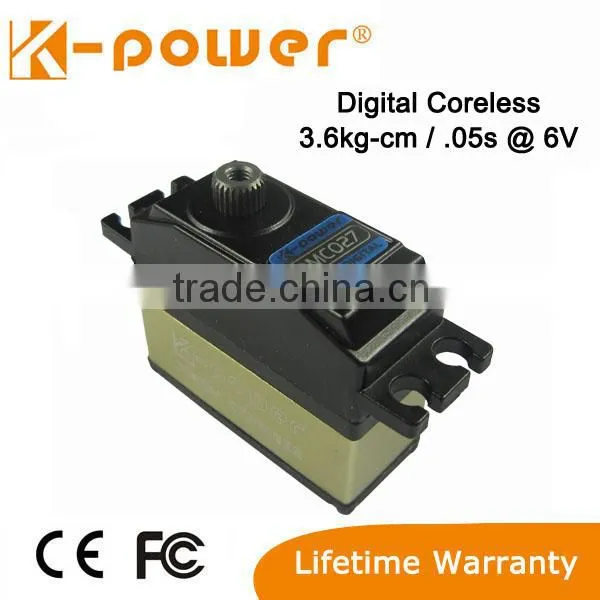

K-power servo DMC027 26g/3.6kg/0.05sHigh Speed Mini Digital Servo
Coreless motor
Aluminum Alloy Mid Case
K-power servo DMC027 26g/3.6kg/0.05s
Feature
| The coreless motor has brought above average performance and ensures smoother, faster, and more efficient operation. |
| The Aluminum Mid case design looks good and allows for cooler and smoother operating temps. |
| Extremely strong titanium gears ensure long-life and durability. |
| Ultra speed in a 6.0V Coreless Servo: .05/60 |
| Ideal as rudder servo on 450-500 level helis. |
Parameter
| Model Type: | Digital Servo DMC027 |
| Motor Type: | Coreless |
| Case material: | Aluminum Mid Case |
| Gear material: | Titanium |
| Bearing Type: | 2BB |
| Weight: | 28g / 1.0oz |
| Dimension: | 36*15*29mm³ / 1.4*0.6*1.1in³ |
| Operation Voltage: | 4.8-6V |
| Torque: | 2.8kg-cm/4.8V; 3.6kg-cm/6.0V |
| 39oz-in/4.8V; 50oz-in/6.0V | |
| Speed: | 0.06sec/60°/4.8V; 0.05sec/60°/6.0V |
| Pulse Width: | 1000-1500 |
| Dead band width: | 2μs |
| Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature: | -20 to 60 centigrade |
| Splining: | 25T |
| Wire Length: | Based on your requirement |
| Waterproof: | Yes |
| Certification: | CE & FCC |
| Application: | RC Airplane, Heli, Car and Boat |
| Ideal for: | 450-500 class Heli Tail/Rudder |
| Service: | Lifetime Warranty. Customized and OEM are available. |
| If you have any other requirement, pls feel free to tell us. Thanks. |
