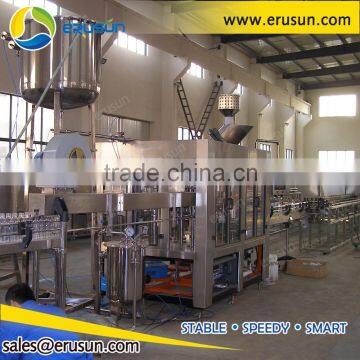

Help Center10000BPH Complete Line Hot Fill Automatic Orange Juice Filling Machine
Related Products
-
Automatic Juice Filling Machine For Small Plastic BottlesUS$ 17,500 - 95,300MOQ: 1 Set -
Good Quality Orange Juice Filling MachineUS$ 17,500 - 95,300MOQ: 1 Set
-
Best Quality Automatic Juice Filling MachineUS$ 17,500 - 95,300MOQ: 1 Set
-
10000botttles Per Hour Pet Bottle Juice Filling MachineUS$ 17,500 - 95,300MOQ: 1 Set
-
CE Approved 3 - in - 1 Juice Filling MachineUS$ 17,500 - 95,300MOQ: 1 Set
Product applied for: juice, tea beverage, functional beverage, etc.
Suitable for: PET bottles with all volumes and shapes
Filling system: hot filling
Production capacity: 2000-25000BPH

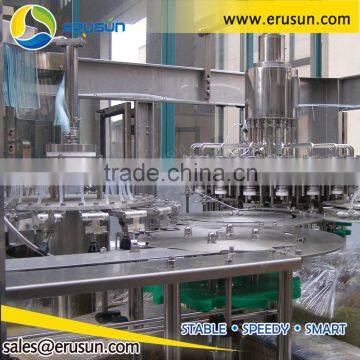

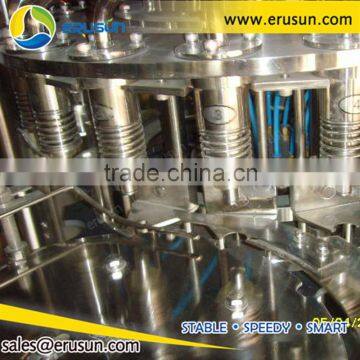

3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscramblerr and electric control system etc.
The overturning device of the rinser is mainly composed of water distributor, bottle clamp, up turnplate, guide rail, protection cover, spraying device, defrosting tray.
Electronic control system part
The electronic components like PLC and transducer are from Mitsubishi, Siemens, Omron, etc., The pneumatic devices are also from international famous brand.
Main electric brand
Touch screen: Weinview or Siemens
PLC program controller: Mitsubishi or Siemens
Inverter: Mitsubishi or Siemens
Photoelectrical controller: Omron or Autonics
Proximity switch: Omron
Other electrical components: Schneider
Pneumatic component: Airtac or SMC or Festo
Water pump: CNP or Grundfos
Main motor: SL or ABB or SEW
Bearing: Harbin or Igus
Technical Parameter
Model | RHFC16/12/6 | RHFC18/18/6 | RHFC24/24/8 | RHFC32/32/10 | RHFC40/40/12 | RHFC50/50/15 | RHFC60/60/15 | RHFC72/72/18 | |
Rinsing Head | 16 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
Filling Head | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
Capping Head | 6 | 6 | 8 | 10 | 12 | 15 | 15 | 18 | |
Capacity (500ml) | 2000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH | 21000BPH | 25000BPH | |
Pressure of air source | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | |
Air consumption | 0.25M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 1M3/min | 1M3/min | 1.2M3/min | |
Pressure of rinse water | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | 0.2~0.25MPa | |
Consumption of rinsing water | 1t/hour | 1.2t/hour | 1.2t/hour | 2t/hour | 2t/hour | 3t/hour | 4t/hour | 5t/hour | |
Filling method | Hot Filling | ||||||||
Suitable bottle size | 300ml-1500ml D:50-90mm H:150-320mm | 300ml-1500ml D:50-90mm H:150-320mm | 300ml-2000ml D:50-115mm H:150-320mm | 300ml-2000ml D:50-115mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | 300ml-2500ml D:50-120mm H:150-320mm | |
Power | 3KW | 3.5KW | 4.5KW | 6KW | 6.5KW | 8KW | 12KW | 15KW | |
Weight | 3000KG | 4000KG | 5000KG | 6000KG | 7000KG | 8500KG | 9500KG | 11000KG | |
Packing Size (L*W*H)(mm) | 2200×1800×2300 | 2300×2000×2300 | 3000×2200×2800 | 4000×2600×2800 | 4700×2950×2800 | 5100×4800×3000 | 6200×4950×3000 | 7000×5500×3000 | |
