Specifications

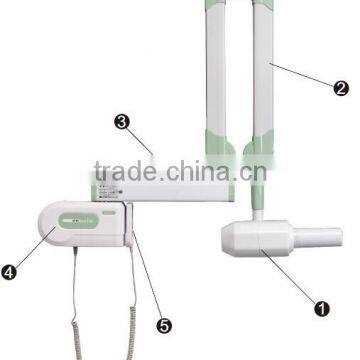

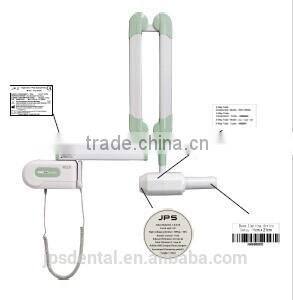

High Frequency Wall-mounted dental X-Ray Machine 68(W)1)SPACE SAVING
2)ADVANCED TECHNOLOGY
3)HIGH QUALITY
4)CE and ISO13485
INTRODUCTION OF HIGH FREQUENCY DENTAL X-RAY MACHINE 68(W)
Our High Frequency Dental X-Ray Machine possesses stable structure, fashion appearance, easy operation and high reliability and safety which are the best choice of the modern dental units.
Shanghai JPS aims to be one of the best dental product suppliers in China in the next decade. Let’s work together, develop together and enjoy the prosperity together.
| Voltage | AC 220V ±10% |
Frequency |
50/60 Hz |
X-ray plugs |
GB 3 cores/EN 3 cores |
Max power consumption |
900 VA |
Electric current |
4 A |
| Fuse | 6.3 A |
| Focus | 0.8 mm |
Tube voltage |
70KV ±10% |
| Anodic electric current | 7mA ±15% |
| Anodic angle | 19º |
| Load circle | 1/60 |
Half-value layer |
70 KV,If 1.6mm AL |
Inherent Filtration |
≥0.5 mm AL |
Leaking radiation rate |
1m < 0.007mGy/h |
| 1 | Adopt imported assembled X-ray generator. |
| 2 | Precise time control: microprocessing can make the exposure time accurate to 1/100 second and display in digital. The machine will replay to any warm immediately. |

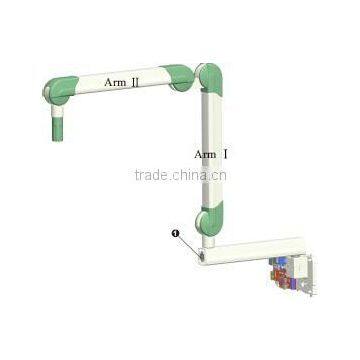

| 3 | The French imported balance arm make the location flexible and stable. |
| 4 | The column is made of aluminium alloy,modern and refined design. |
| 5 | Parallel focus, contributing to get the super clear image easily. |
| 6 | With almost no radiation, it's safe to operate: tiny X ray source and the ball sleeve is tightly sealed. On the condition of opened exposure, around 1 meter from exposure center, its ray leakage lower than national standards by 68 times,more than the prescribed body safety value of 0.5mGy / h is lower (0-0.007mGy / h ). So without X-ray protection room, doctors and patients can be protected well,too. |
| 7 | with error code display function, parameters can be reset and saved. |
| 8 | Voltage stabilizer as standard collocation, preventing the damage from voltage hunting, which can pretend the service life of this machine. |
| 9 | Reserved digital camera mode, which can upgrade to digital developing machine. |
