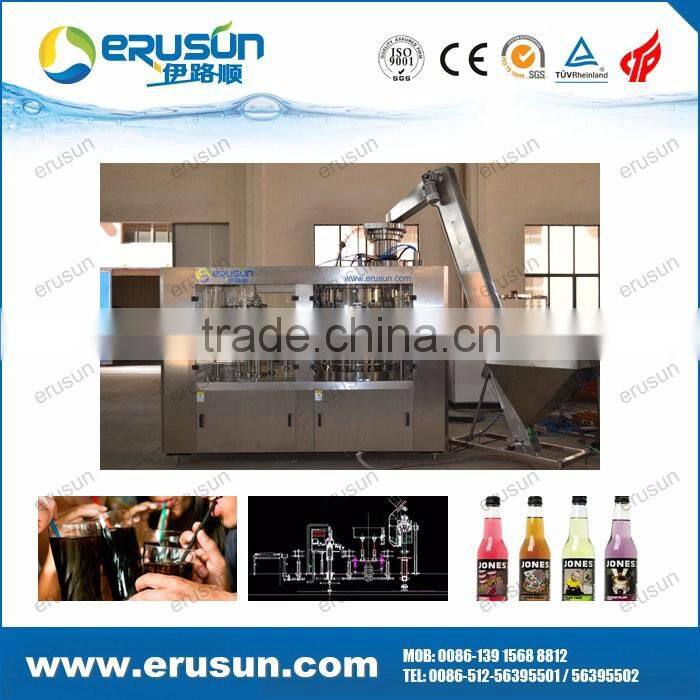

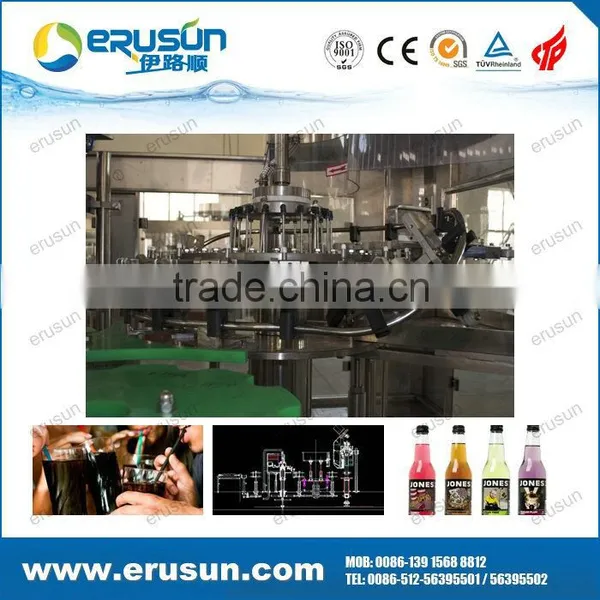

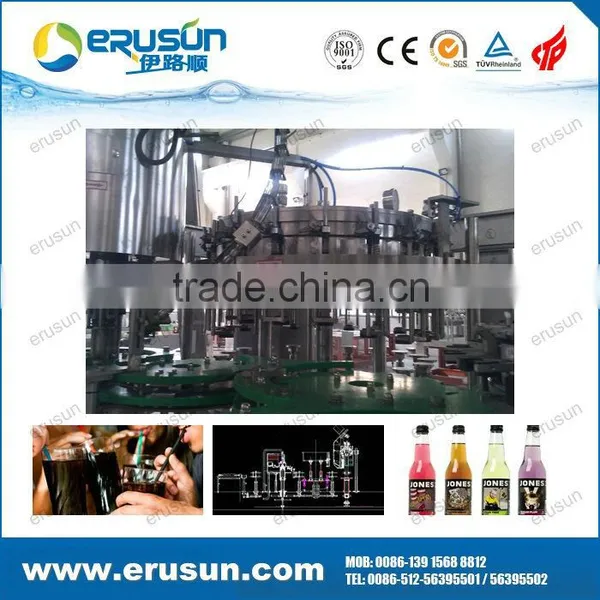

Zhangjiagang High Efficiency Fully Automatic Glass Bottle Filling Machine

Carbonated soft drink filling machine for glass bottle filling with aluminum caps.

Speed 2000-12000bph(500ml bottle), bottle range: 330ml-1500ml glass bottle.

Machine's features:

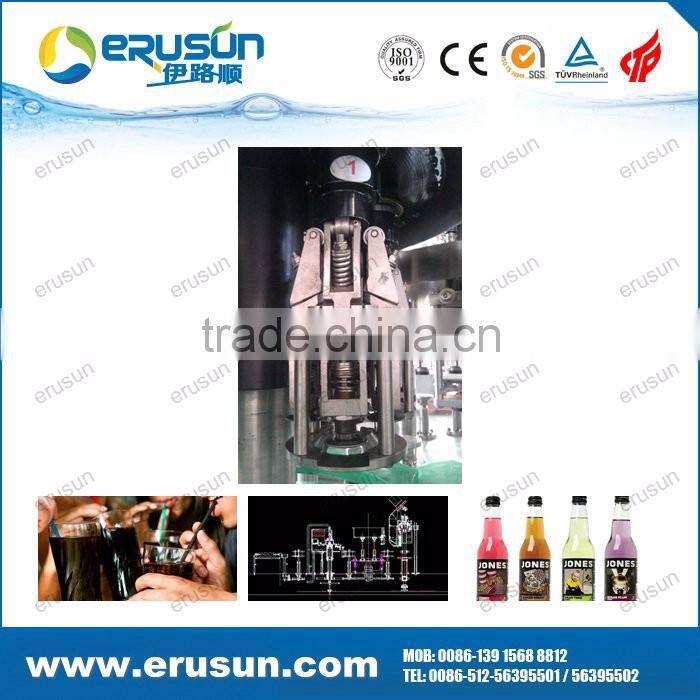

Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum.
Double vacuum system, equipped with high pressure frothing device.
Open Gear combinated gear box transmission. Frequency conversion velocity modulation device extends the speed modulating scope.
The hopper is of stainless steel and magnetic. The unscrambling, transferring of the crown caps are all by magnetic. The capper has the outloading function which could decrease the rate of broken bottle.
Centering guide is of double guide bar type, with the function of pre-covering.
The material height in the tank is controlled by electric probe to assure the precise liquid level.

Technical parameters
Model: 16-12-6 18-18-6 24-24-8 32-32-10
Production capacity (600ml)(B/H): 3000 5000 8000 12000
Filling accuracy ≤ ± 5mm
Filling pressure ≤ 0.4
Bottle size (mm) Bottle diameter φ 50-φ 92 Height 150-320
Rinsing with water pressure (Mpa) 0.2-0.25
Wash bottles water consumption (kg/h) 800 1600 2500 3500
Air pressure(Mpa) 0.6
Air consumption(m3/min) 0.2 0.2 0.25 0.3
Motor power(kw) 2.57 3.37 4.37 5.87
Weight(kg) 4500 5500 7000 8000
Dimension(L*W*H)(mm) 2200*1700*2700 2500*2100*2700 2800*2400*2700 4000*2550*2850
