60 KV 0.02HZ VLF Hipot test equipment AC hipot tester
- 8888 Piece / Pieces per Month
- Ningbo or Shanghai or Shengzhen
- D/P D/A Credit Card PayPal
You May Like
-
10kv and below voltage cables generators 30kv AC hipot tester
-
40kv pure sine wave AC hipot tester for 13.8kv and below voltage cables generators
-
13.8kv cable testing equipment BVLF-40KV AC hipot tester
-
BVLF-50KV 0.1Hz Very Low Frequency Generator for cable testing
-
Very Low Frequency Tester for High Voltage Cable BVLF-90KV
-
80kv high voltage test equipment 35KV and below voltage cable generator
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BANGZHAO OR OEM | |
| Model Number | BVLF-80KV | Power | Electronic | |
| Usage | Deformation Testing Machine |
Product Description

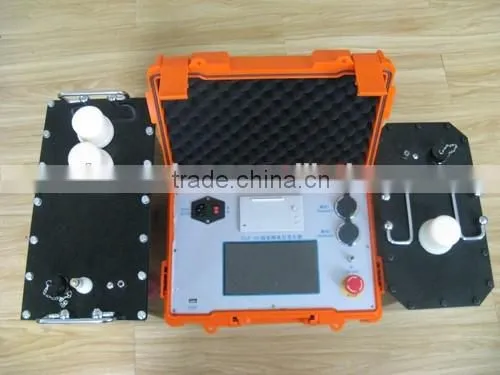

60 KV 0.02HZ VLF Hipot test equipment AC hipot tester
The high-voltage Withstand Test of the electrical equipment is one of the most important projects under The insulation preventive test. Withstand Test can be divided into the AC voltage test and DC voltage test. AC voltage test can use Power frequency, Frequency conversion and 0.1Hz Very-low-frequency tester, which the 0.1Hz Very-low-frequency technology is the latest technology, the technology recommended by the International Electro technical Commission.
BVLF series of Very-low frequency high voltage generator using self-developed core products of the latest American technology, it overcomes many shortcomings of 0.1Hz mechanical withstand voltage test equipment (see Table 1),Better performance (see Table 2) compared with a similar variety of withstand voltage test equipment, And performance and low cost is far better than similar imported products, Particularly suitable for large electrical equipment insulation equivalent capacitance (for example: power cables, power capacitors, medium and large generators and motors, etc.) withstand voltage test.
- Advanced technology: the use of digital frequency conversion technology, microcomputer control, boost, buck, measurement, protection, fully automated testing process.
- Easy to operate: the wiring simple, fool type operation.
- Comprehensive protection: multiple protection (high and low pressure side of the overvoltage protection, overcurrent), fast response action (action time≤20ms),safe and reliable instrument.
- Safe and reliable: low-voltage connection of the controller and high-voltage generator,photoelectric control, safety and reliability.
- Using high and low voltage closed-loop negative feedback control circuit, the output is not capacity effect.
- Configuration is complete: the touch screen, LCD display, automatic storage, automatic printing,supporting the PC software.
- Test range: 0.1Hz, 0.05Hz and 0.02Hz multi-frequency selection, the test range
- Small size, light weight: very conducive to outdoor jobs.
- USB2.0 data interface to download data quickly and easily.
Technical parameters:
1. Output voltage ratings: 30KV, 40KV, 50KV, 60KV, 70KV, 80kV (peak)
2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
3. Measurement accuracy: 3%
4. Positive and negative voltage peak errors: ≤ 3%
5. Voltage wave form distortion: ≤ 5%
6. Use condition: Indoor and outdoor; Temperature: -10C--+40C; Humidity: ≤ 85%RH
7. Power: AC50Hz, 220V +-5%
8. Power supply fuse tube: 10A
Model | Peak voltage | Measuring range | Weight | Purpose |
BVLF-30 | 30KV | 0.1Hz,≤1.1µF | Controller: 4 kg Booster: 25 kg Size: L*W*H 323*174*323 | 10KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-40 | 40KV | 0.1Hz,≤1.1µF | Controller: 5 kg Booster: 30 kg Size: L*W*H 357*208*343 | 13.8KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-50 | 50KV | 0.1Hz,≤1.1µF | Controller: 6 kg Booster: 45 kg Size: L*W*H 357*210*365 | 15.75KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF-60 | 60KV | 0.1Hz,≤1.1µF | Controller: 6 kg Booster: 50 kg Size: L*W*H 357*220*370 | 18KV and below voltage cable, generator |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
BVLF- 80 | 80KV | 0.1Hz,≤1.1µF | Controller: 8 kg Booster: 90 kg Size: L*W*H 357*240*390 | 35KV and below voltage cable, generator |
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q6. What is the warranty period ?
A. Normally 1 year ,if order quantity enough can be extended to 5 years.
